Corbin Russwin 910 Trim for ED5200, ED5400, ED5800 Wide Stile Rim, SecureBolt, CVR, SVR Wood or Composite Door T…_T30953

Open the original PDF document

View PDF

Notes:

  • This template is an addition to the device template. Locate centerlines using horizontal and vertical references on device template.
  • 2. Do not scale drawing.
  • 3. Dimensions are in inches (mm).
  • 4. LHR door shown. Preparation is typical for both door hands.
  • Provide adequate structural support to maintain door integrity during operation.
  • 6. Prepare mounting holes when installing trim.
  • 7. Dimensions given about a centerline are symmetrical.

Note: Lever and knob prefix does not affect door prep.

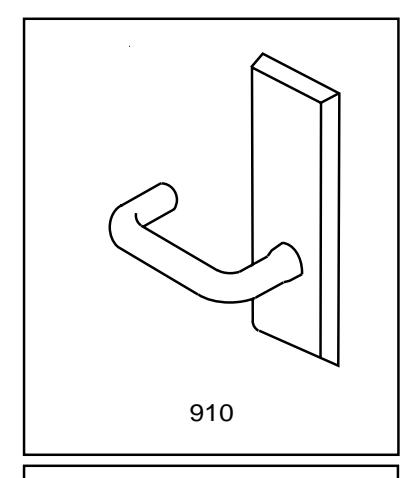

910 Series Trim

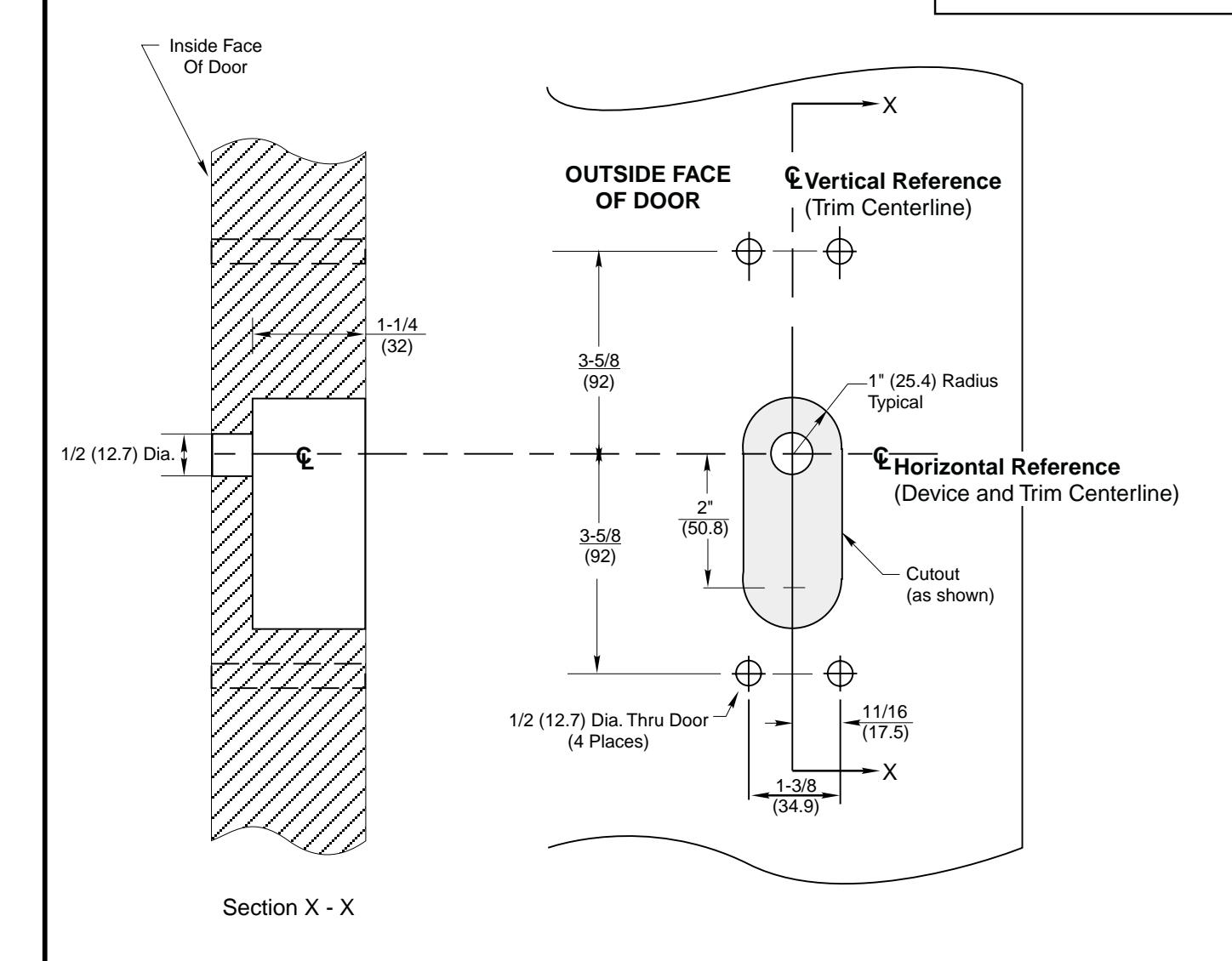

With ED5200, ED5400 or ED5800 Series Rim, SecureBolt, and Vertical Rod Exit Devices Wood or Composite Door Preparation

www.corbinrusswin.com

SUPERSEDES DO NOT SCALE DRAWING

TEMPLATE NUMBER T30953

30953 PATE 10-01
