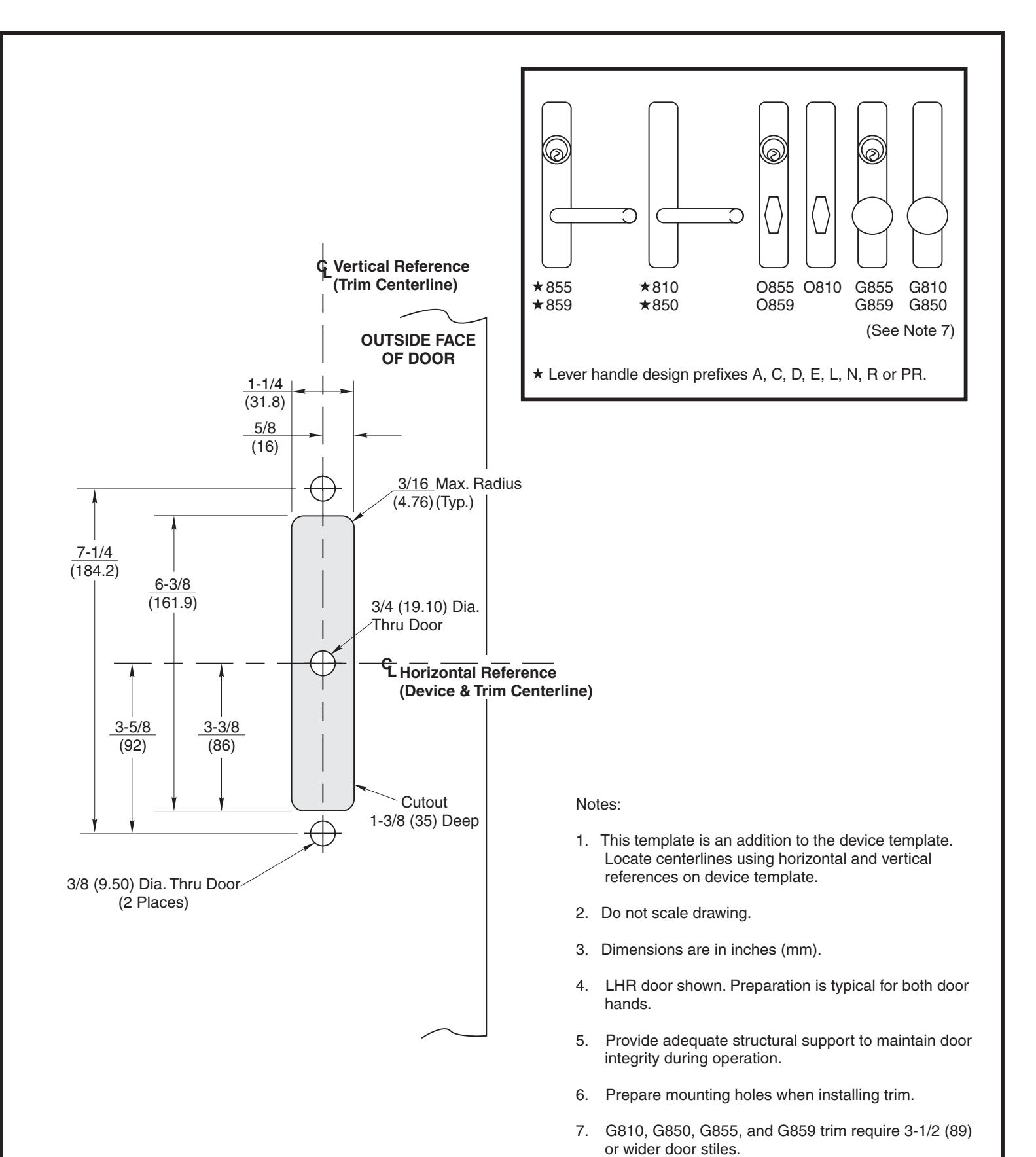

810, 850, 855 & 859 Series Narrow Escutcheon Trim With ED4200(M), ED4400(M), or ED4800(M) Series Rim and Vertical Rod Exit Devices Wood or Composite Door Preparation
www.corbinrusswin.com
SUPERSEDES T30848-1 DO NOT SCALE DRAWING
TEMPLATE NUMBER
T30848-2
02-09
