Notes:

  • This template is an addition to the device template. Locate centerlines using horizontal and vertical references on device template.
  • 2. Do not scale drawing.
  • 3. Dimensions are in inches (mm).
  • LHR door shown. Preparation is typical for both door hands.
  • 5. Provide adequate structural support to maintain door integrity during operation.
  • 6. Prepare mounting holes when installing trim.
  • 7. Dimensions given about a centerline are symmetrical.

Note: Lever and knob prefix does not affect door prep.

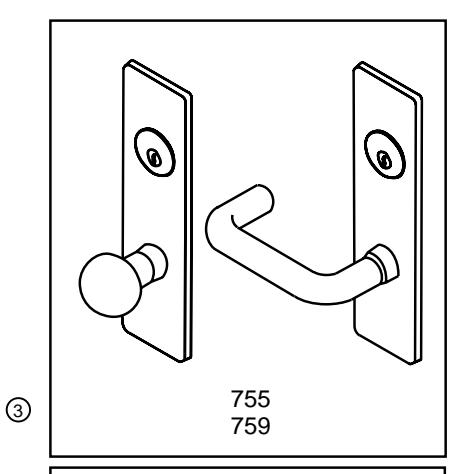

755 & 759 Series Trim

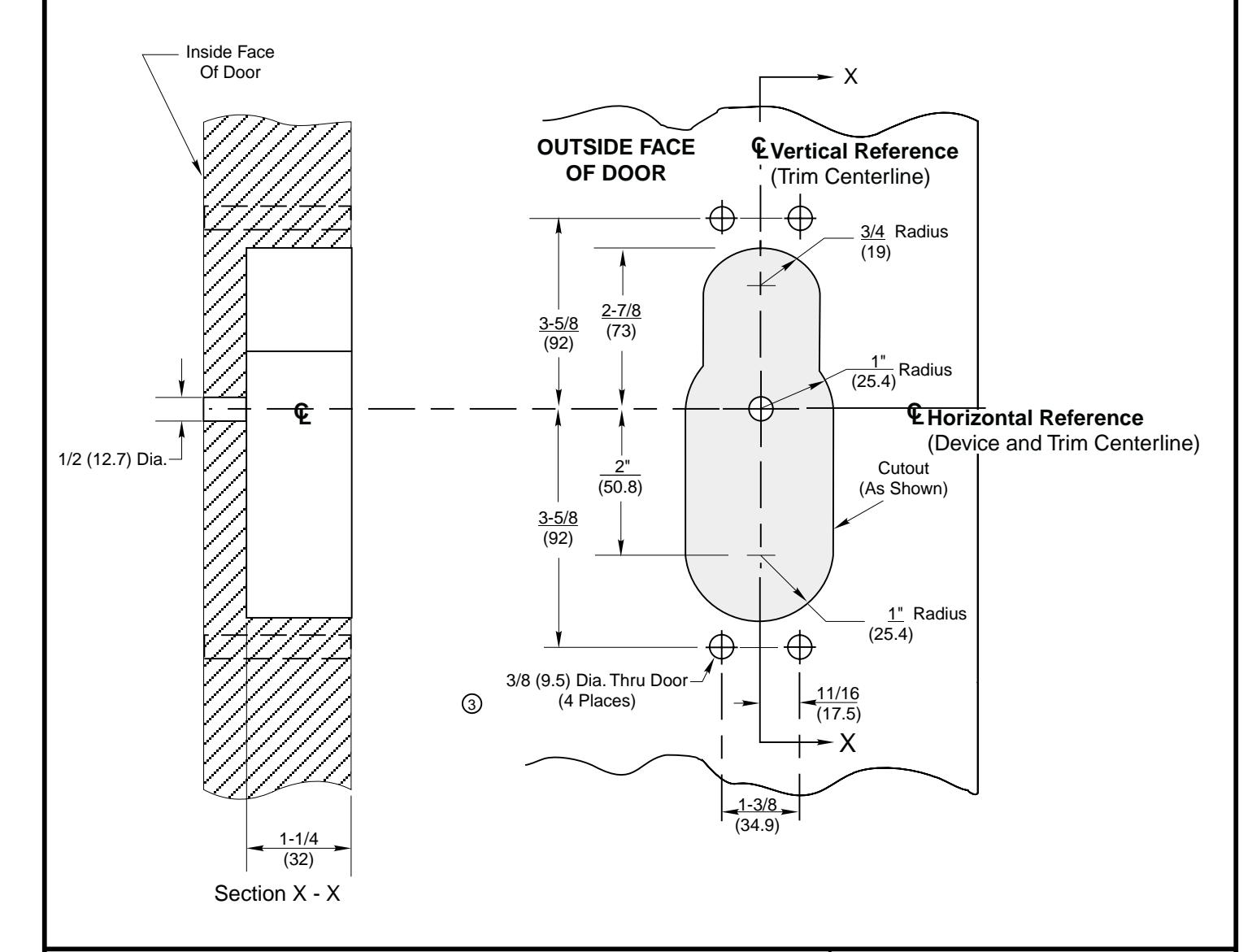

With ED5200, ED5400 or ED5800 Series Rim, SecureBolt, and Vertical Rod Exit Devices Wood or Composite Door Preparation

www.corbinrusswin.com

SUPERSEDES T30855-2

DO NOT SCALE DRAWING

TEMPLATE NUMBER T3

T30855-3

DATE 10-01
