Notes:

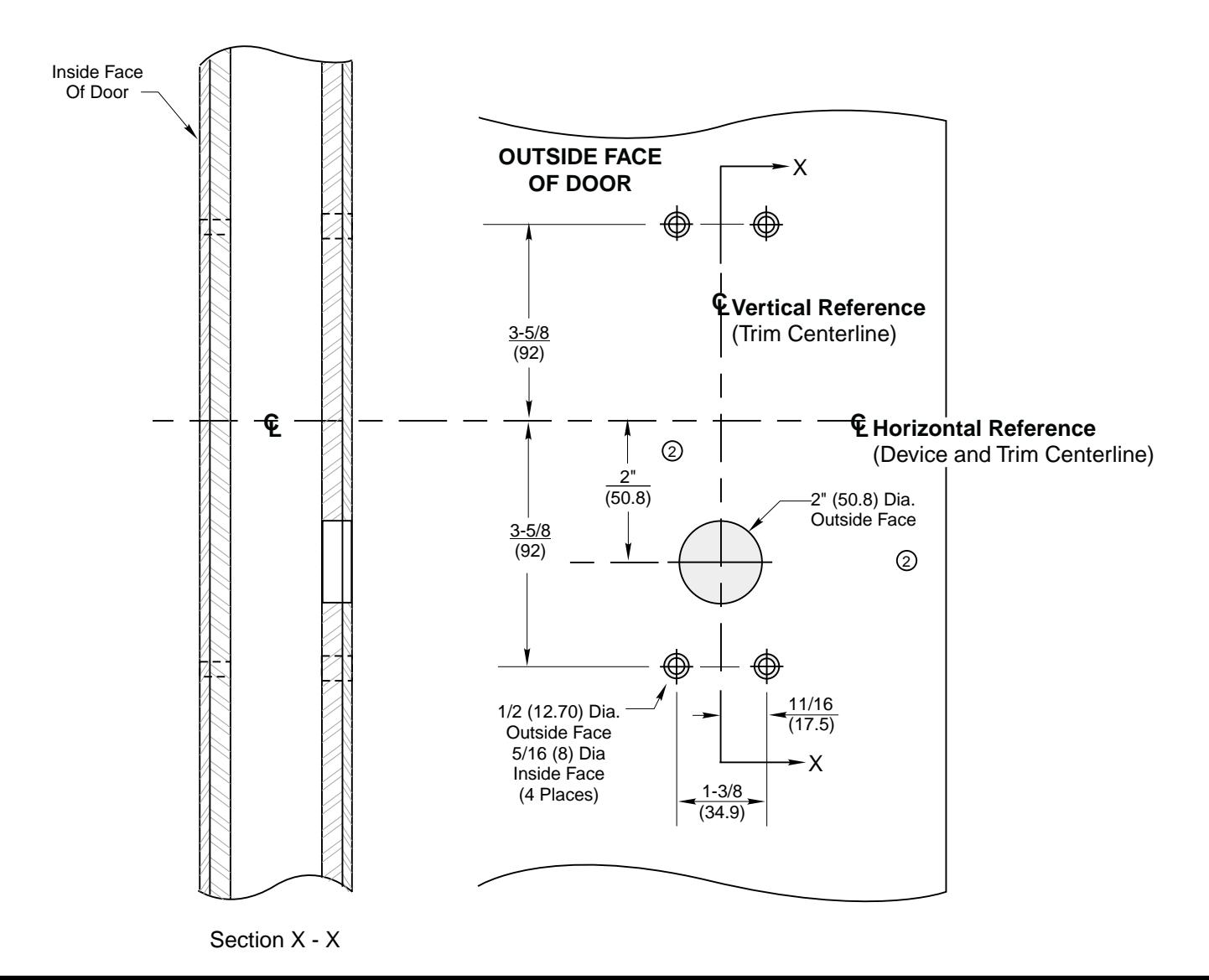

  • 1. This template is an addition to the device template. Locate centerlines using horizontal and vertical references on device template.
  • 2. Do not scale drawing.
  • 3. Dimensions are in inches (mm).
  • 4. LHR door shown. Preparation is typical for both door hands.
  • 5. For door reinforcement see template T30800.
  • 6. Prepare mounting holes when installing trim.
  • 7. Provide adequate internal support to prevent door deformation after trim is bolted to the device.

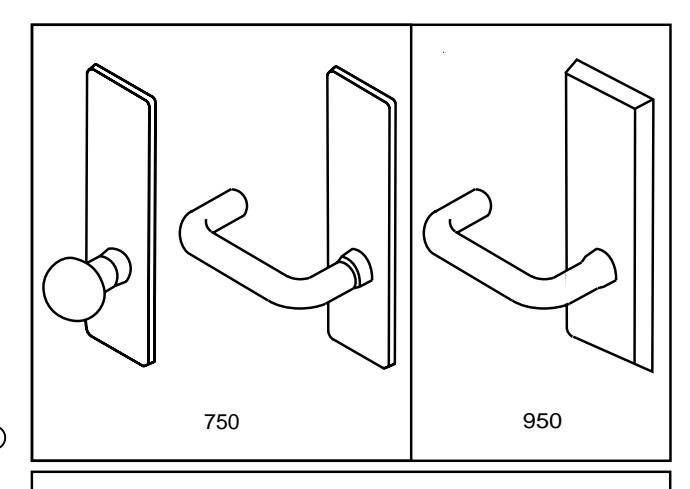

Note: Lever and knob prefix does not affect door prep.

2

750 & 950 Series Trim

Metal Door Preparation With ED5200, ED5400 or ED5800 Series Rim and Vertical Rod Exit Devices , SecureBolt,

www.corbinrusswin.com

T30821-1

DO NOT SCALE DRAWING SUPERSEDES

TEMPLATE NUMBER DATE T30821-2 10-01
