Corbin Russwin 750 Trim for ED5200, ED5400, ED5800 Wide Stile Rim, SecureBolt, CVR, SVR Wood or Composite Door T…_T30857

Open the original PDF document

View PDF

Notes:

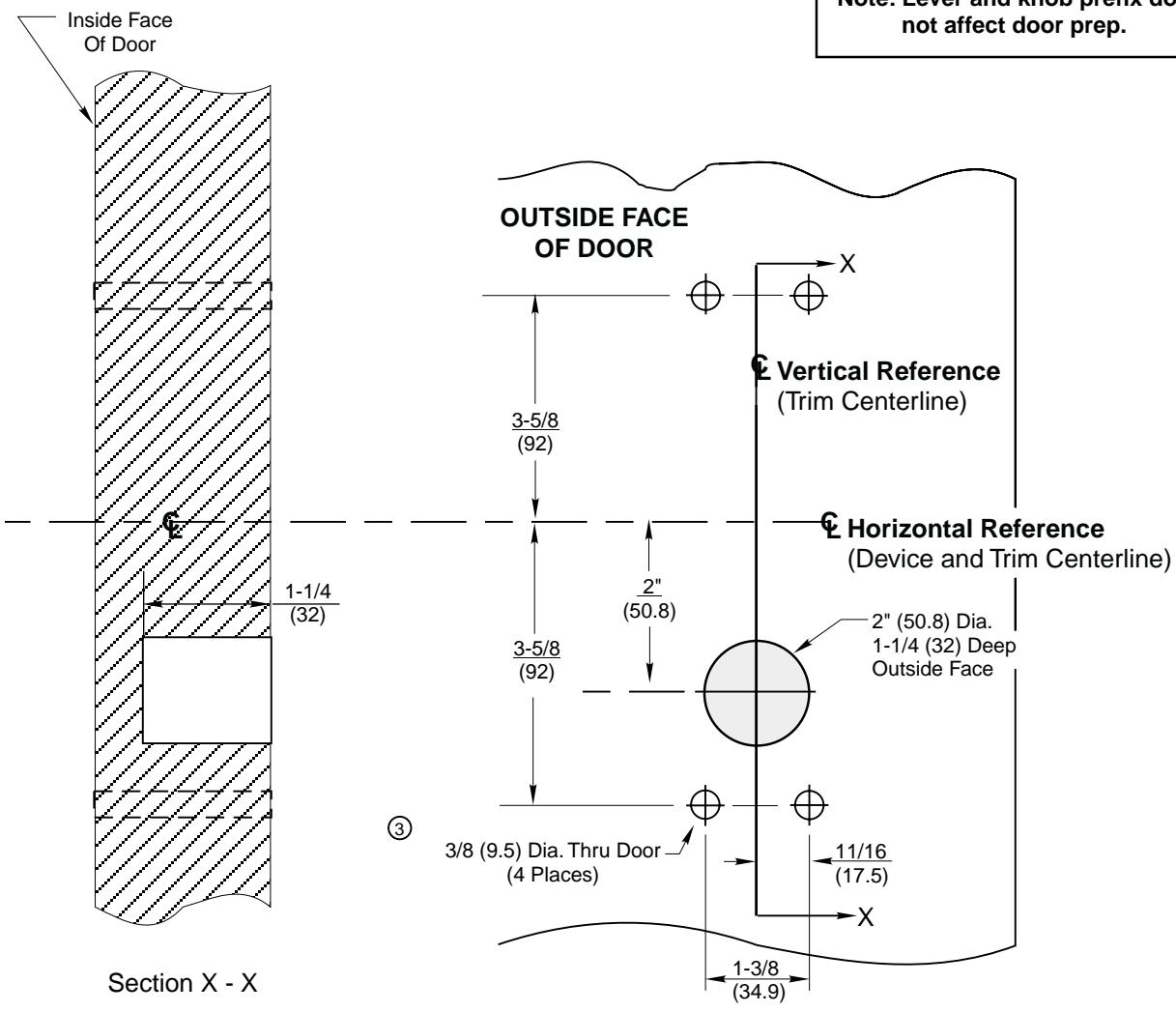

  • 1. This template is an addition to the device template. Locate centerlines using horizontal and vertical references on device template.
  • 2. Do not scale drawing.
  • 3. Dimensions are in inches (mm).
  • 4. LHR door shown. Preparation is typical for both door hands.
  • 5. Provide adequate internal support to maintain door integrity during operation.
  • 6. Prepare mounting holes when installing trim.

Note: Lever and knob prefix does not affect door prep.

3

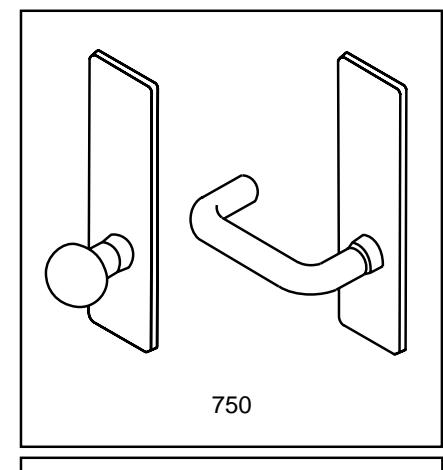

750 Series Trim

Wood or Composite Door Preparation With ED5200, ED5400 or ED5800 Series Rim, SecureBolt, and Vertical Rod Exit Devices

www.corbinrusswin.com

T30857-2 DO NOT SCALE DRAWING SUPERSEDES

T30857-3 10-01 TEMPLATE NUMBER DATE
