Corbin Russwin 510ET, 555ET, 557ET, and 550ET Trim for ED2000 Series Wide Stile Rim, CVR, SVR Wood Door Template_T31268

RESPONSIBILITY

DOOR AND FRAME MANUFACTURERS ARE RESPONSIBLE FOR PROVIDING ADEQUATE CONSTRUCTION OR REINFORCEMENTS FOR PROPER INSTALLATION OF HARDWARE SHOWN. ALL ARCHITECTURAL BUILDERS HARDWARE MUST BE INSTALLED ON PROPERLY REINFORCED DOORS AND FRAMES, REGARDLESS OF TYPE, MATERIAL, OR METHOD OF CONSTRUCTION.

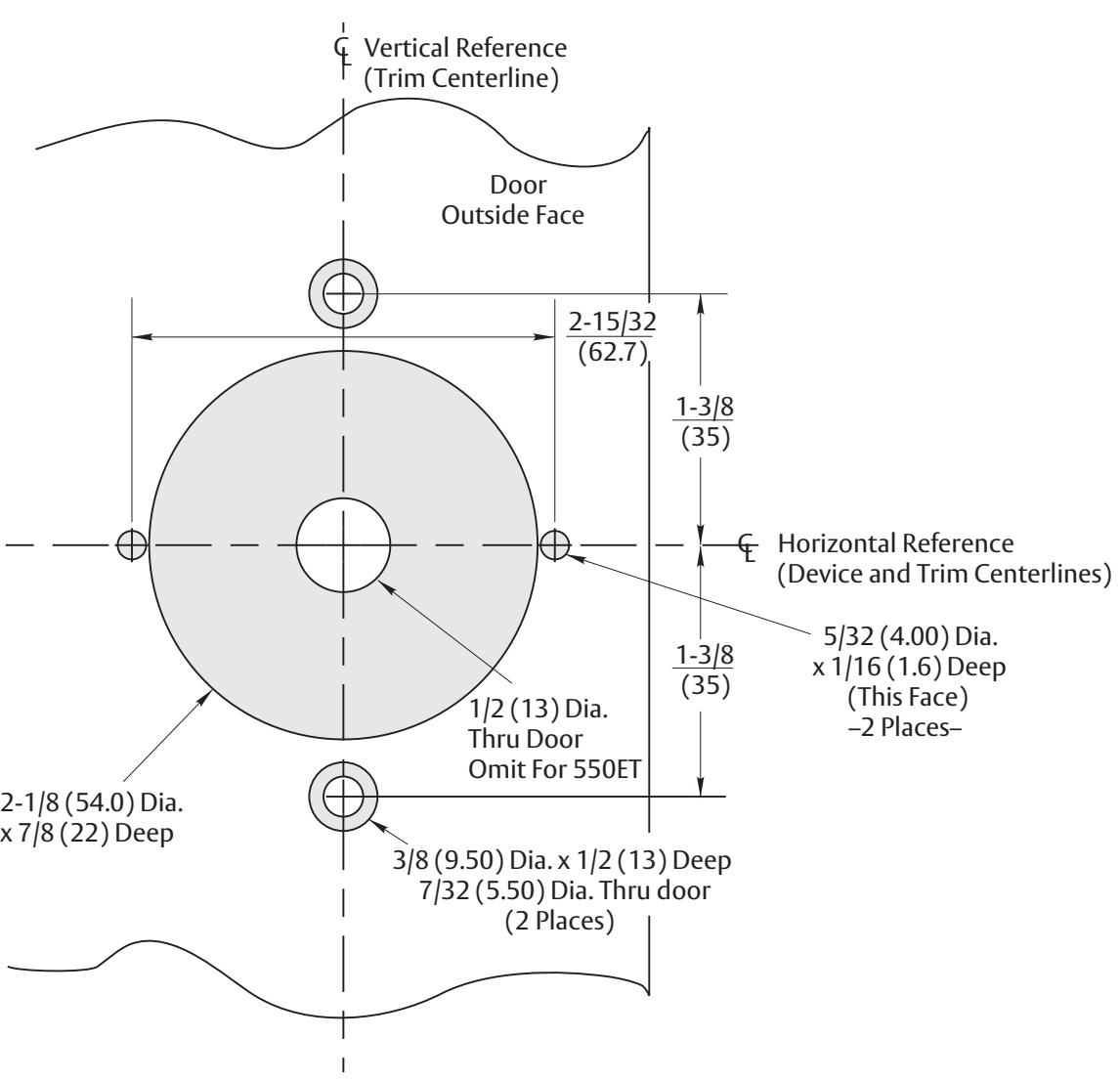

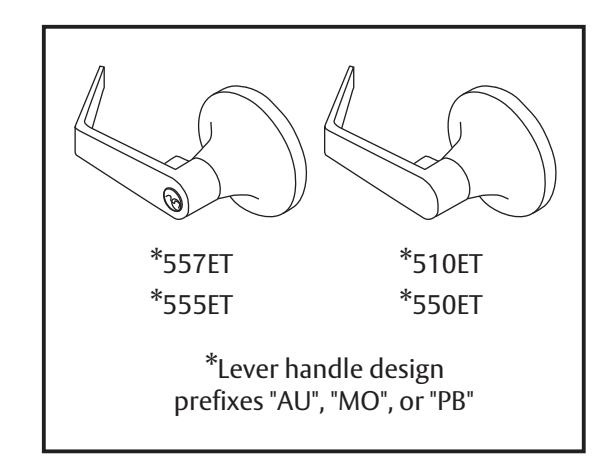

510ET, 555ET , 557ET and 550ET Trim With ED2000 Series Rim and Vertical Rod Exit Devices Wood Door Preparation

www.corbinrusswin.com

DO NOT SCALE DRAWING SUPERSEDES TEMPLATE NUMBER SHEET DATE T31268-1 1 of 1 04/23
