3470/3473/3495/3570/3573/3579/3670 LEVERSET TIMING INSTRUCTIONS

3670 LEVERSET

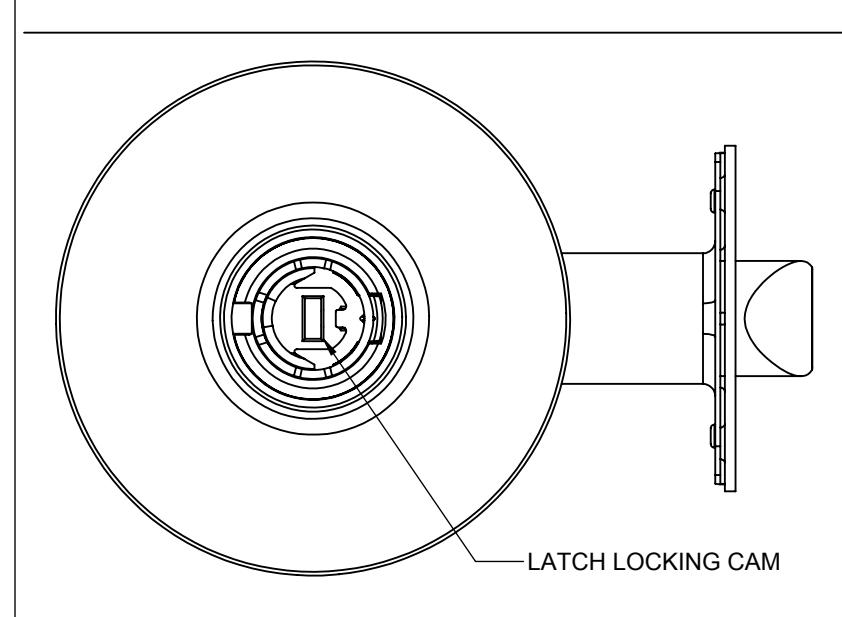

• 1. USING A SCREWDRIVER, ROTATE THE CAM CLOCKWISE UNTIL THE CAM PROFILE LOOKS LIKE THE PICTURE ON THE LEFT.
• 2. INSERT THE KEY INTO THE CYLINDER AND ROTATE THE TAILPIECE 90 DEGREES CLOCKWISE.
• 3. HOLD THE KEY IN THE POSITION FROM STEP 2 AND INSTALL THE LEVER UNTIL IT SNAPS INTO PLACE.

3470/3570/3473/3573/3579 LEVERSET

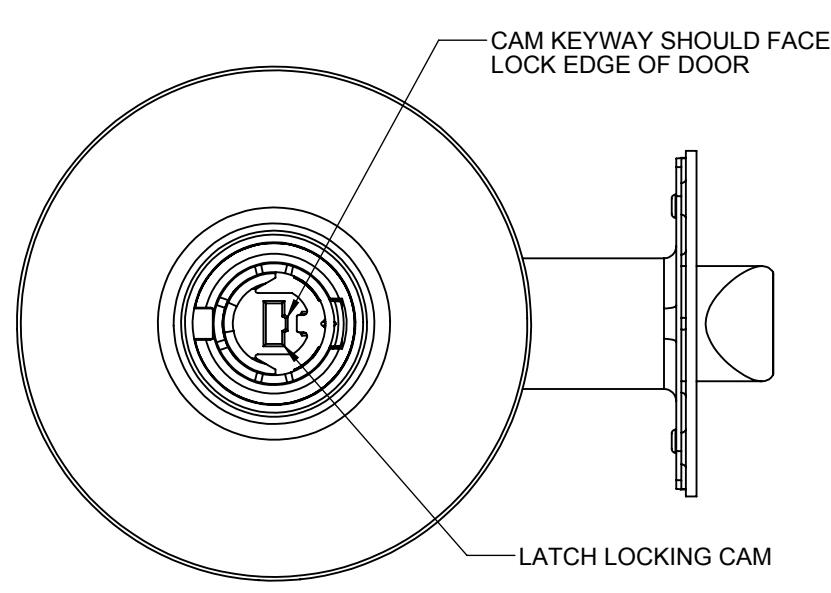

• 1. USING A SCREWDRIVER, ROTATE THE CAM UNTIL THE KEYWAY FACES THE LOCK EDGE OF THE DOOR.
• 2. INSERT KEY INTO THE CYLINDER AND ROTATE THE KEY 90 DEGREES SO THE TAILPIECE MATCHES THE CAM PROFILE.
• 3. HOLD THE KEY IN THE POSITION FROM STEP 2 AND INSTALL THE LEVER UNTIL IT SNAPS INTO PLACE.

3495 LEVERSET

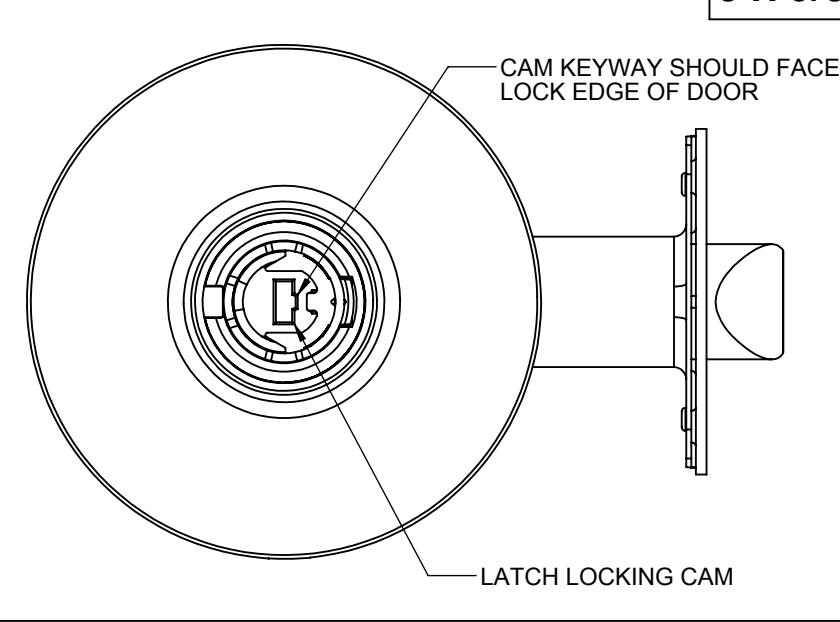

• 1. USING A SCREWDRIVER, ROTATE THE CAM UNTIL THE KEYWAY FACES THE LOCK EDGE OF THE DOOR.
• 2. INSERT KEY INTO THE CYLINDER AND ROTATE THE KEY 90 DEGREES SO THE TAILPIECE MATCHES THE CAM PROFILE.
• 3. HOLD THE KEY IN THE POSITION FROM STEP 2 AND INSTALL THE LEVER UNTIL IT SNAPS INTO PLACE.
• 4. REPEAT STEPS 1-3 FOR THE OPPOSITE SIDE OF THE LOCK.

DRAWING NO: I-LS00310 REV: 08 SHEET 1 OF 2

HAGER COMPANIES 139 Victor Street, St. Louis, MO 63104 - (800) 325-9995 - Fax (800) 782-0149

3570/3573/3579 IC LEVERSET TIMING INSTRUCTIONS

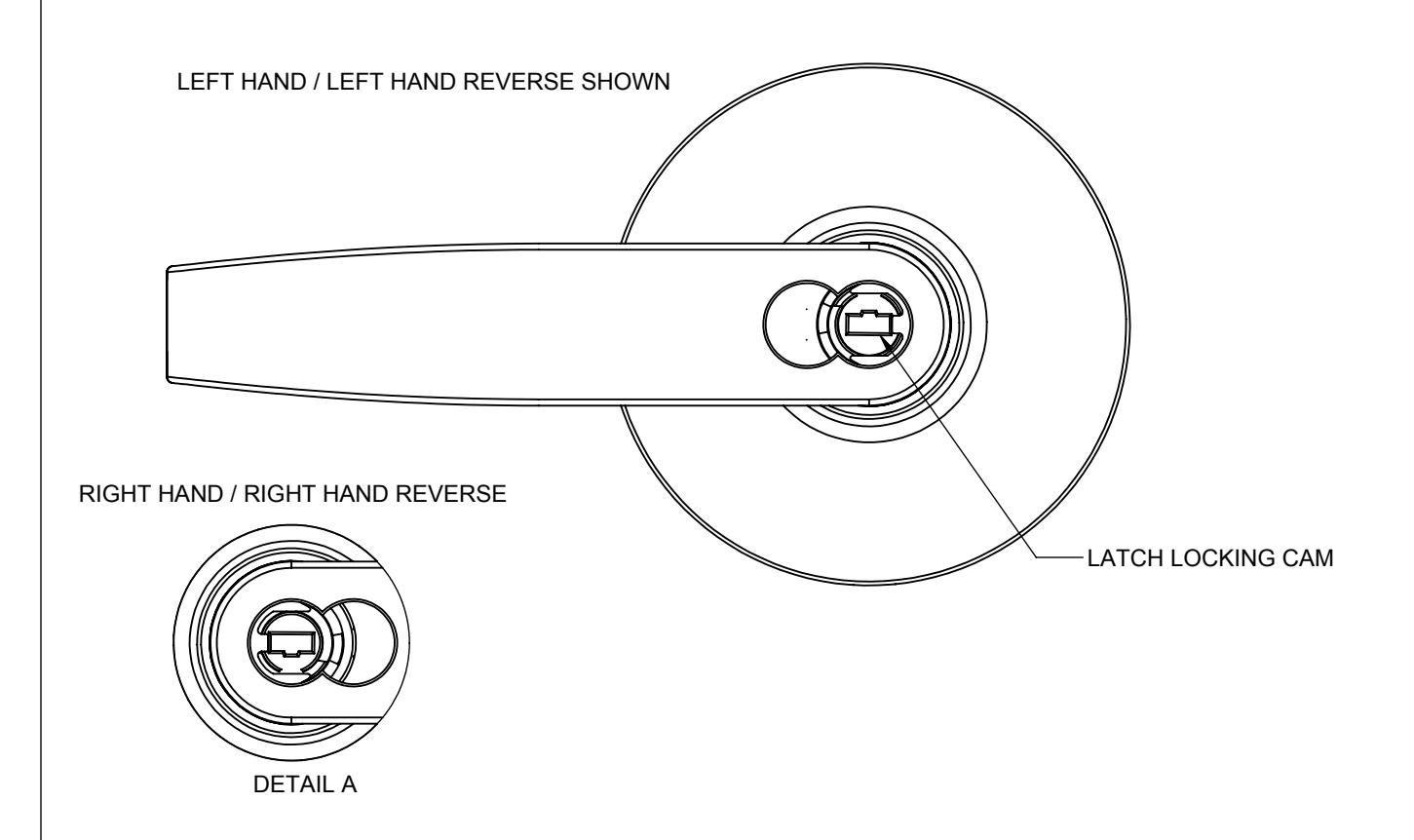

• 1. LEFT HAND & LEFT HAND REVERSE MOUNTING USE A SCREWDRIVER TO ROTATE THE CAM SO THE KEYWAY FACES UP.
• 2. RIGHT HAND & RIGHT HAND REVERSE MOUNTING USE A SCREWDRIVER TO ROTATE THE CAM SO THE KEYWAY FACES DOWN (SHOWN IN DETAIL A).
• 3. INSERT THE PACKAGED TAILPIECE INTO THE IC CORE CYLINDER.
• 4. USING THE CONTROL KEY, INSERT THE IC CORE CYLINDER INTO THE LOCKSET LEVER UNTIL IT SITS FLUSH.
• 5. REMOVE THE CONTROL KEY
