CATREXKIT-CL

INSTALLATION INSTRUCTIONS

Field Installable Rex switch for Command Access CL1 Series Cylindrical Lock. This switch is SPDT (single pull, double throw).

KIT INCLUDES

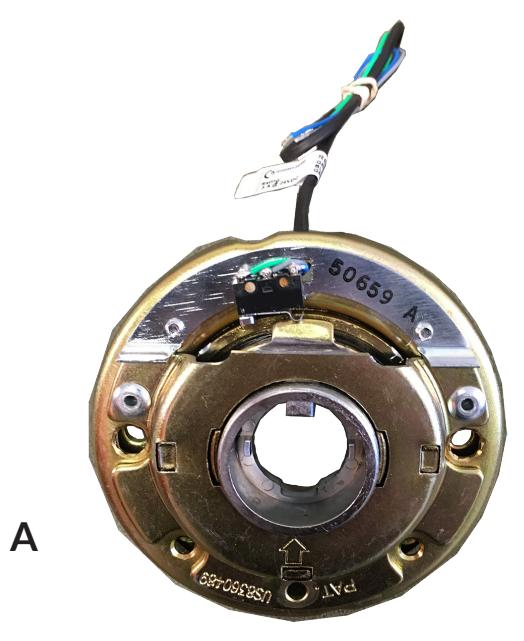

A. Inside Spring Cage w/ REX

Tools Required

None

S PECIFICATIONS

Rating: .25A@ 24VAC/DC

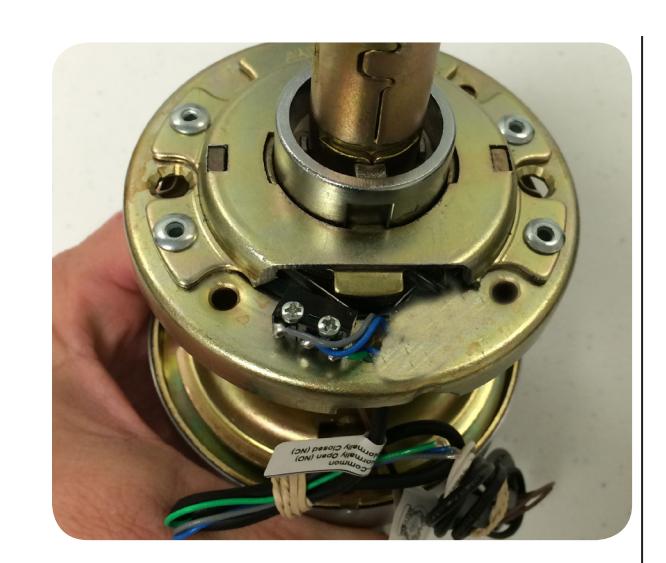

Configuration: Green - Common (C)

Blue - Normally Open (NO) Grey - Normally Closed (NC)

• Remove lock from door.

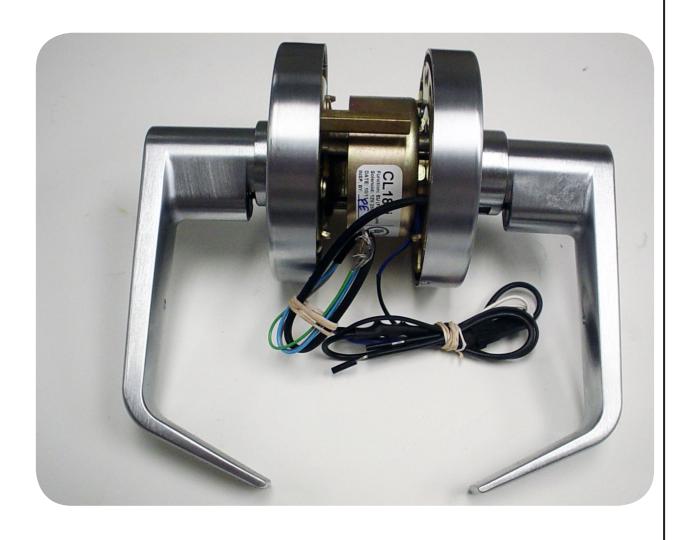

• Replace inside spring cage with Rex spring cage.

• Make sure wires are coming out to the inner part of door.

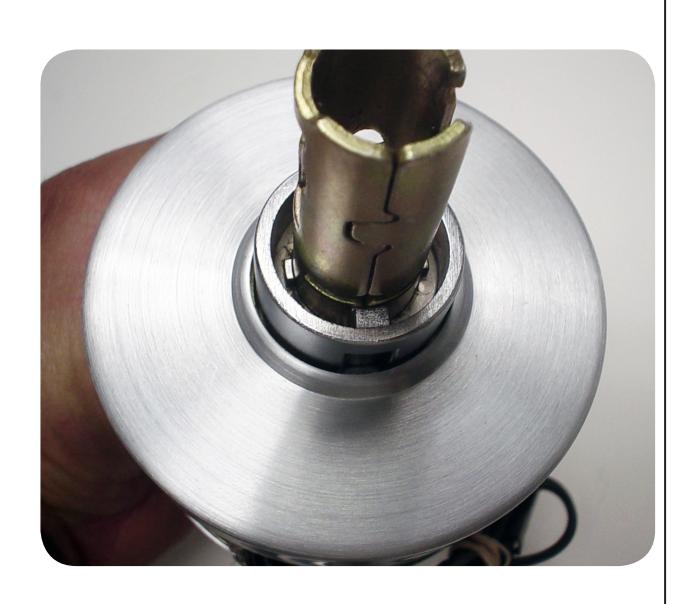

• Assemble spring cage, rose, collar and handle onto chassis.

• Make sure not to over tighten.

• Re-install lock onto door and check for proper operation.
