PD27/29 ALARM KIT INSTALLATION INSTRUCTIONS

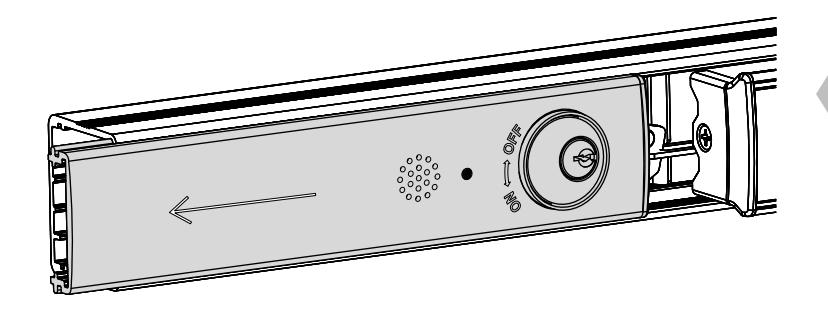

1. REMOVE FILLER PLATE

• Slide filler plate away from pushbar
• If plastic filler plug remains inside main rail, remove and reinstall into filler plate

2. SET SIREN TIME

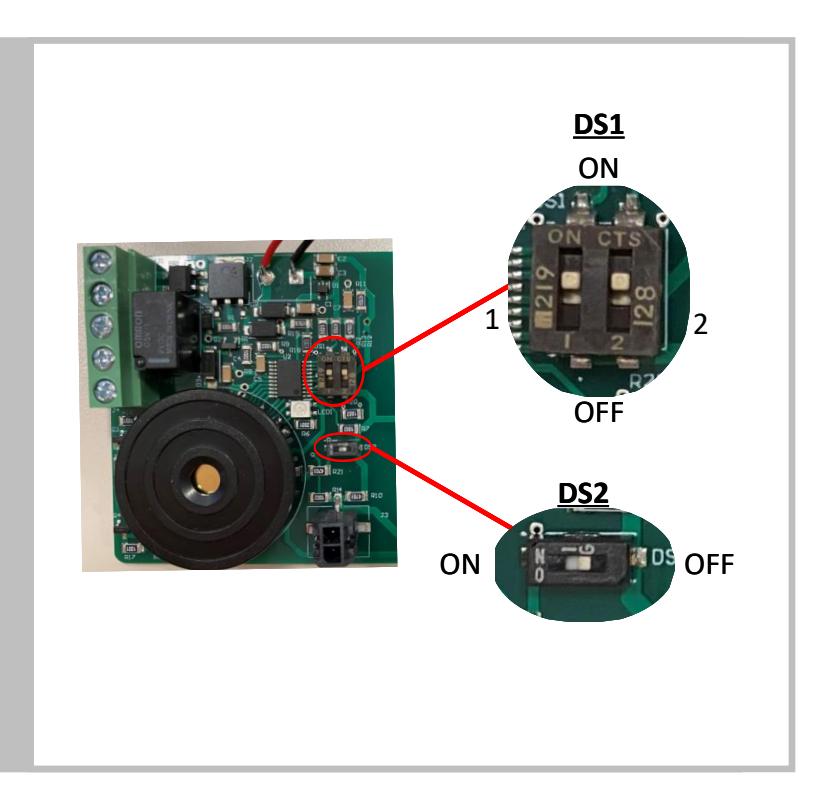

DS1 - Siren Time

1	2	Siren Time
OFF	OFF	Infinite	FACTORY
OFF	ON	1 minute	DEFAULT
ON	OFF	3 minute
ON	ON	7 minute

• For relay option only: enable or disable relay

DS2 - Relay Output

1	Relay Output
OFF	Disabled		FACTORY
ON	Enabled		DEFAULT

Contact Current Rating 1A Switching Voltage 125VAC/60VDC MAX Relay Specs

3. ADD OPTIONAL ITEMS

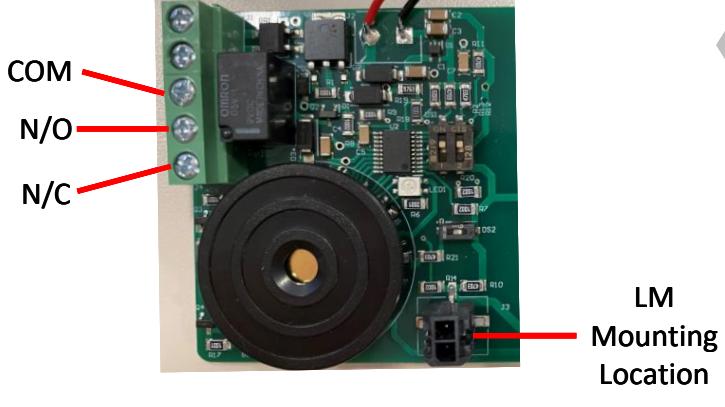

• Connect latchbolt monitor (LM) switch to alarm board
• For relay option:
  • o Connect external system to relay terminals

• Complete one or both of the following:

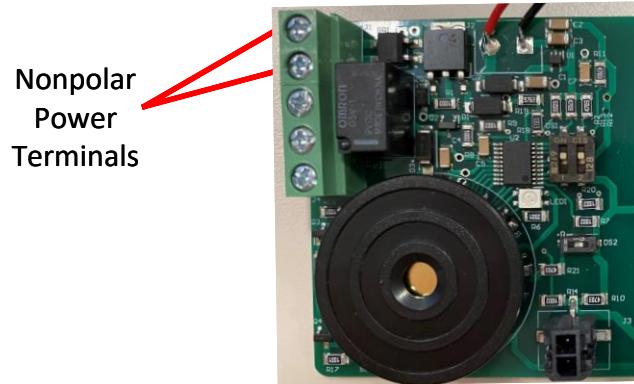

• Add 12-24VDC/VAC to power terminals

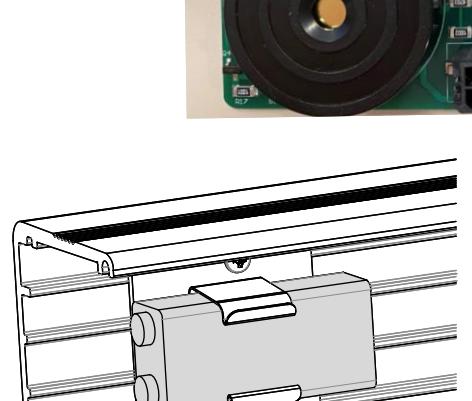

• Install 9V alkaline battery in rail and connect to battery lead

5. VERIFY FUNCTION

• For fire labeled devices:

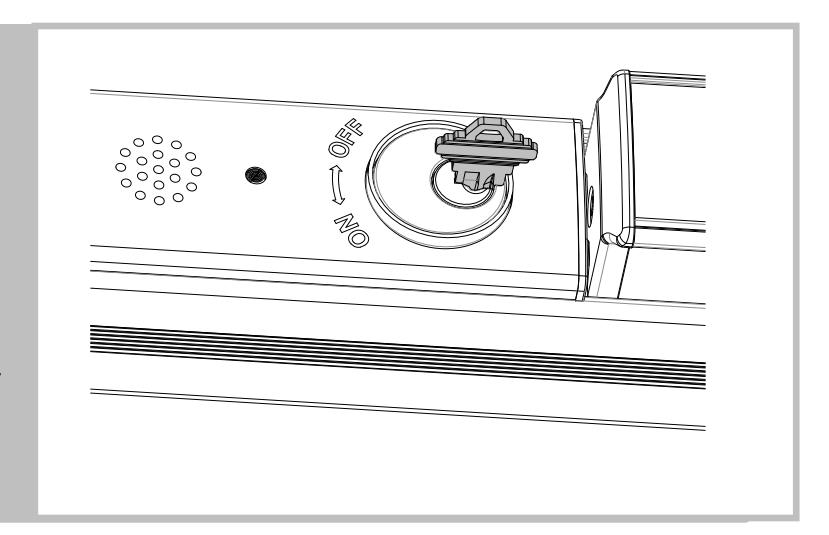

  • o Verify ON and OFF positions
• For panic labeled devices
  • o Verify ON and OFF positions
    • Verify OFF and DOGGED only possible when pushbar is first depressed

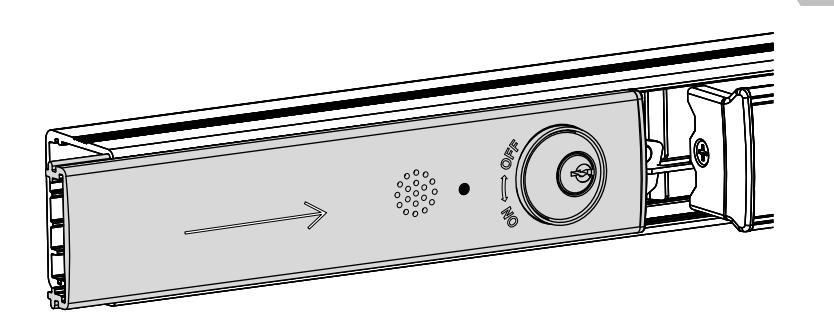

6. REINSTALL FILLER PLATE AND END CAP

• Ensure filler plate is flush with main rail
• Reinstall end cap
• Visit pdqlocks.com for alarm kit datasheet
