PANIC & MOUNT FASTENERS ABELED LS

PD28 SERIES

EXIT

DEVICES USING SNB

OR SURFACE

TEMPLATE: CAT-9702 REV. 0 04-27-23

• 2. SEX NUTS MAY BE REQUIRED FOR UNREINFORCED DOORS OR COMPOSITE FIRE DOORS. CONSULT DOOR MANUFACTURER'S RECOMMENDATIONS
• 3. SEE TRIM TEMPLATE (IF APPLICABLE) FOR RELATED MACHINING DETAILS
• 4. DIMENSION "X" SIZED FOR DOOR. WHEN CUTTING DOWN FOR NARROWER OPENING REFER TO DEVICE INSTRUCTIONS
• 5. CHECK CAT WEBSITE FOR MOST RECENT REVISION WWW.COMMANDACCESS.COM
• 6. MINIMUM STILE WIDTH: 4 1/8"

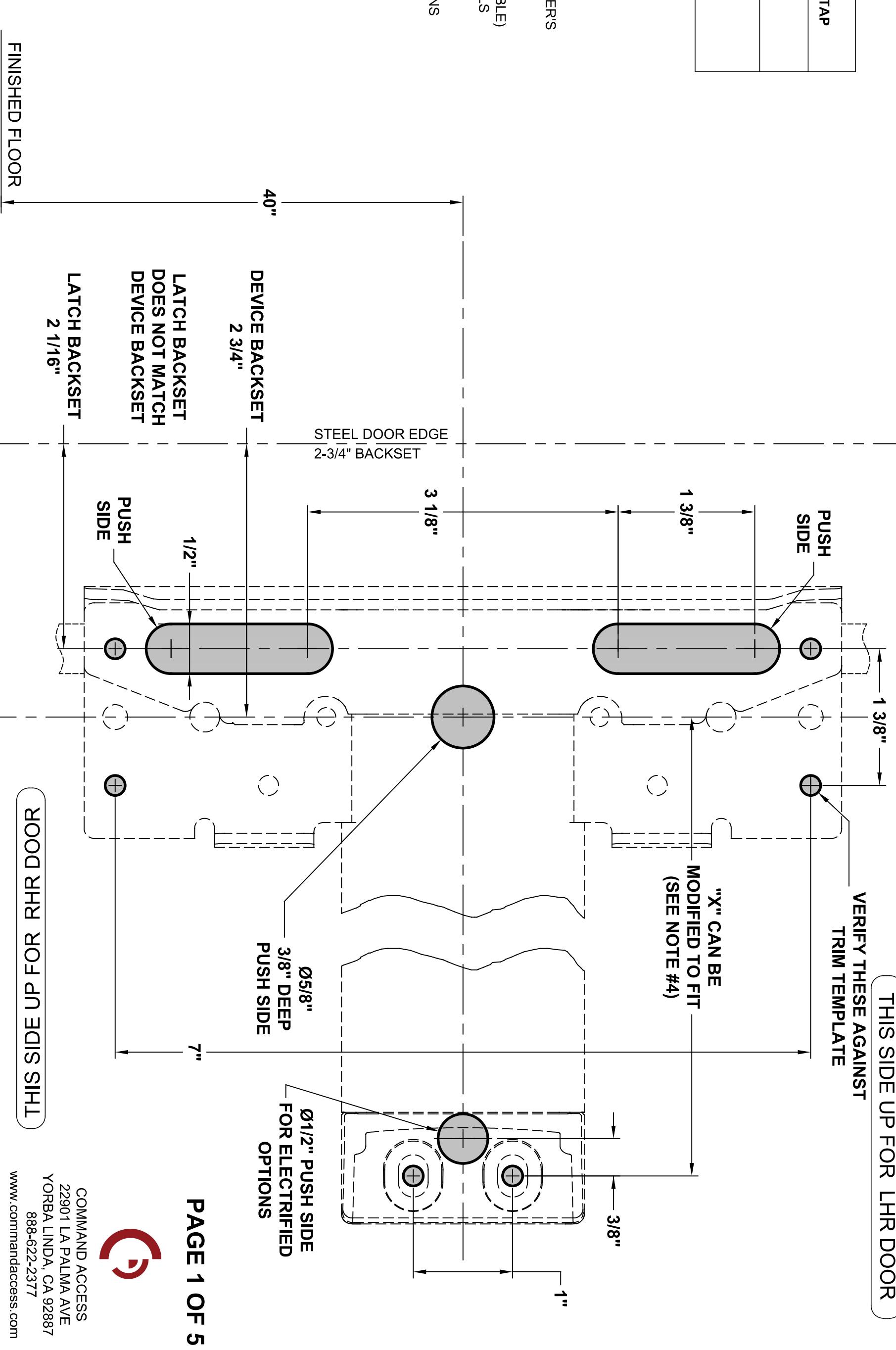

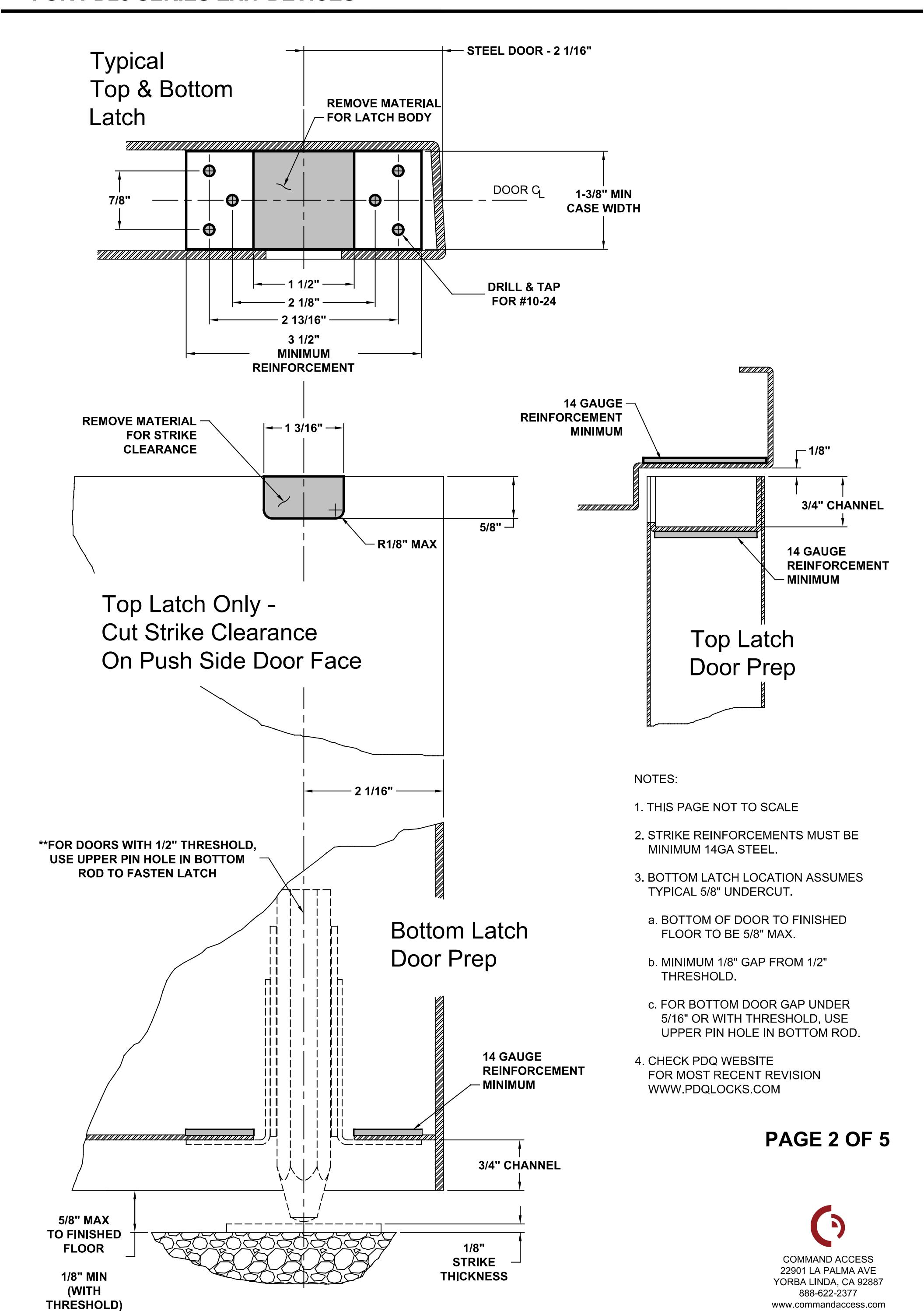

CVR LATCH - STEEL DOOR FOR PD28 SERIES EXIT DEVICES

TEMPLATE: CAT-9702 REV. 0 04-27-23

TENERS

TEMPLATE: CAT-9702 REV. 0 04-27-23

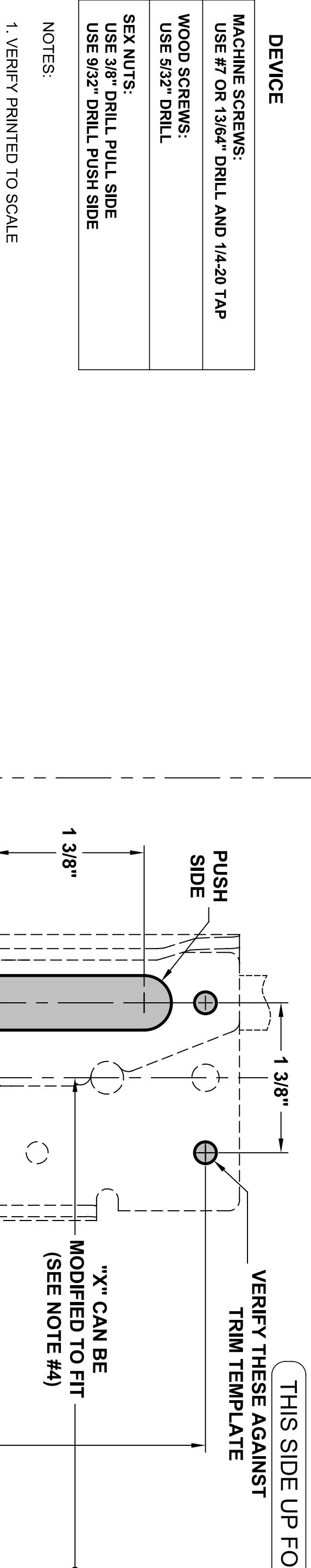

SEX NUTS: USE 3/8" DRILL PULL SIDE USE 9/32" DRILL PUSH SIDE WOOD SCREWS: USE 5/32" DRILL MACHINE SCREWS: USE #7 OR 13/64" DRILL AND 1/4-20 TAP

DEVICE

NOTES:

• 1. VERIFY PRINTED TO SCALE
• 2. SEX NUTS MAY BE REQUIRED FOR UNREINFORCED DOORS OR COMPOSITE FIRE DOORS. CONSULT DOOR MANUFACTURER'S RECOMMENDATIONS
• 3. SEE TRIM TEMPLATE (IF APPLICABLE) FOR RELATED MACHINING DETAILS
• 4. DIMENSION "X" SIZED FOR DOOR. REFER TO DEVICE INSTRUCTIONS WHEN CUTTING DOWN FOR NARROWER OPENING
• 5. CHECK CAT WEBSITE FOR MOST RECENT REVISION WWW.COMMANDACCESS.COM
• 6. MINIMUM STILE WIDTH: 3-1/2"

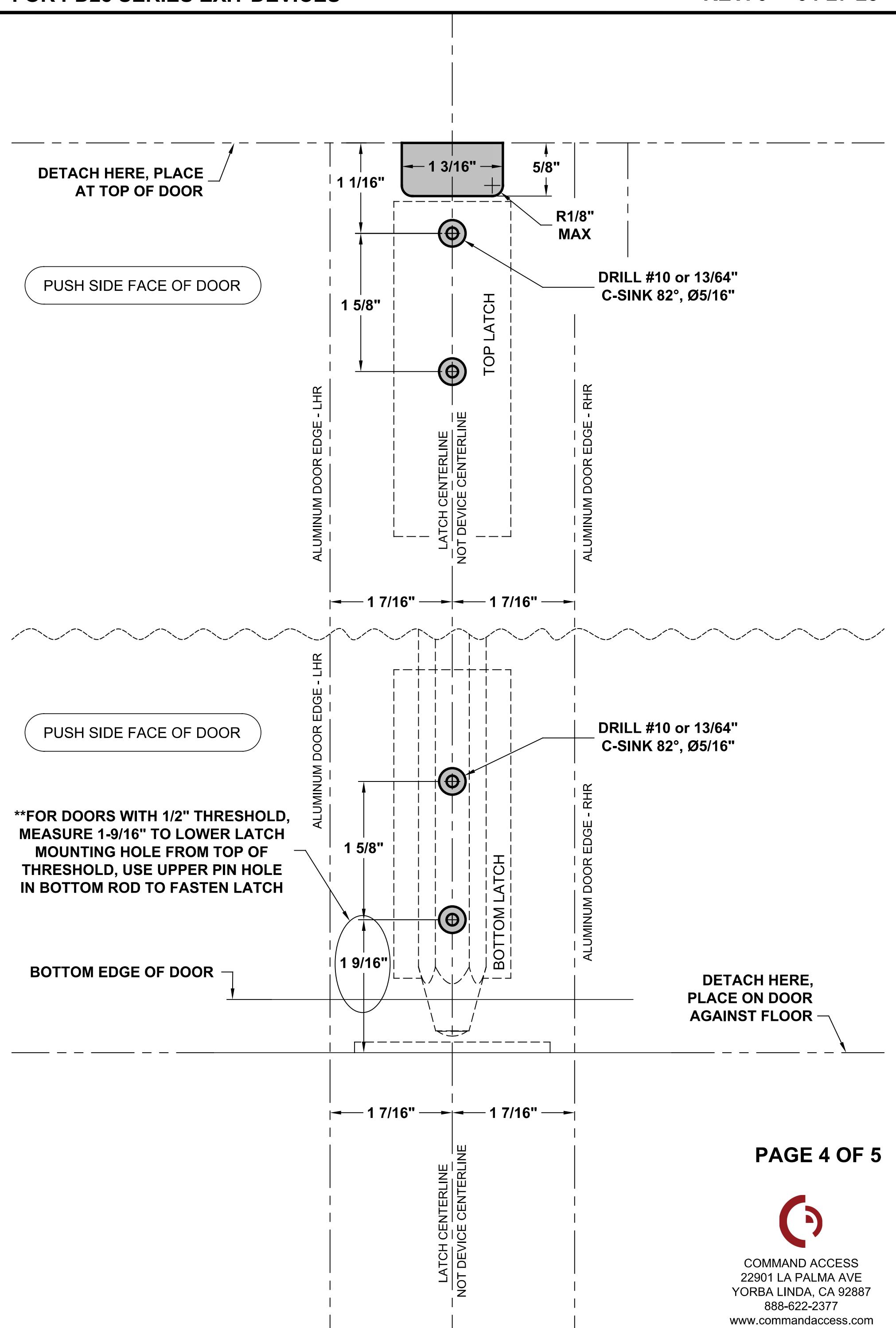

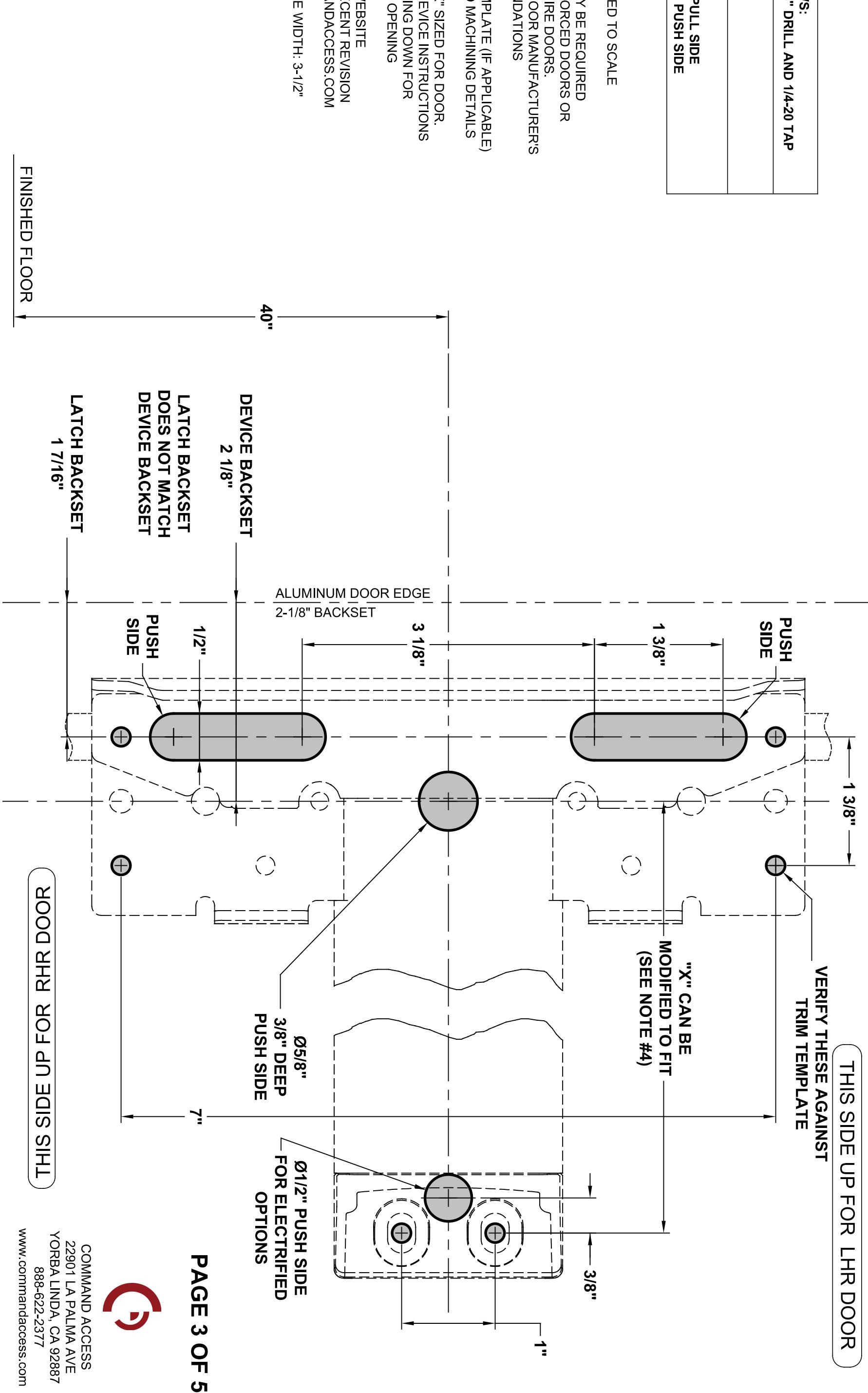

CVR LATCH - ALUMINUM DOOR FOR PD28 SERIES EXIT DEVICES

TEMPLATE: CAT-9702 REV. 0 04-27-23 DETACH HERE, PLACE ON DOOR AGAINST FLOOR PAGE 4 OF 5

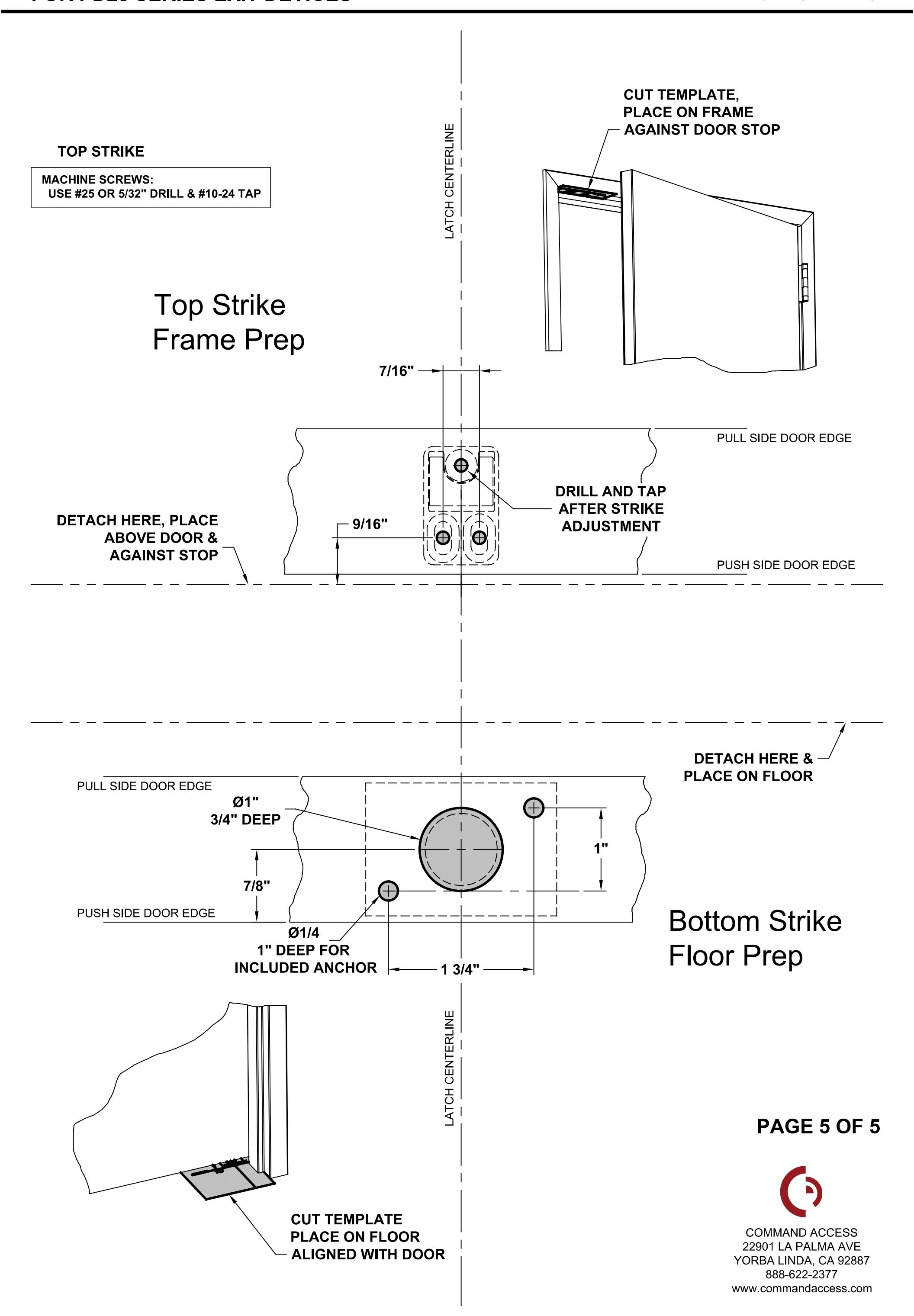

CVR TOP/BOTTOM STRIKE FOR PD28 SERIES EXIT DEVICES

TEMPLATE: CAT-9702 REV. 0 04-27-23
