Clearpath S-COR Spectrum Coordinator Specification Sheet

SPECTRUM COORDINATOR CLEARPATH™ S-COR

PRODUCT DESCRIPTION

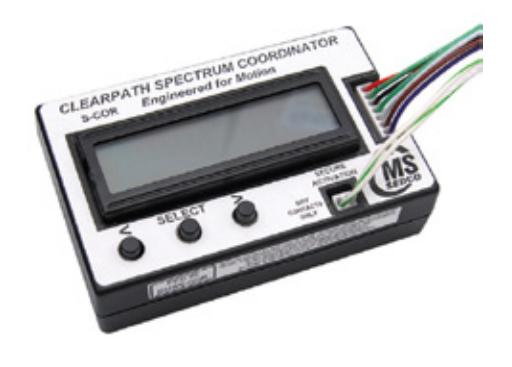

The S-COR Coordinator is a part of the ClearPath Spectrum Wireless System. When used in conjunction with the S-TRX Transceiver, the S-COR Coordinator functions in a similar role as traditional wireless system receivers. This is where the similarities end. The Spectrum Wireless System provides several industry firsts:

• Digital two-way communication allows for greater security and ensures successful signal transmission between devices.
• LCD screen (S-COR) for quickand easy programming.
• Upon switch activation, the Transceivers communicate valuable information that is displayed on the LCD screen including: device ID, signal strength and battery monitoring.
• Pairing of multiple Transceivers with Coordinators.

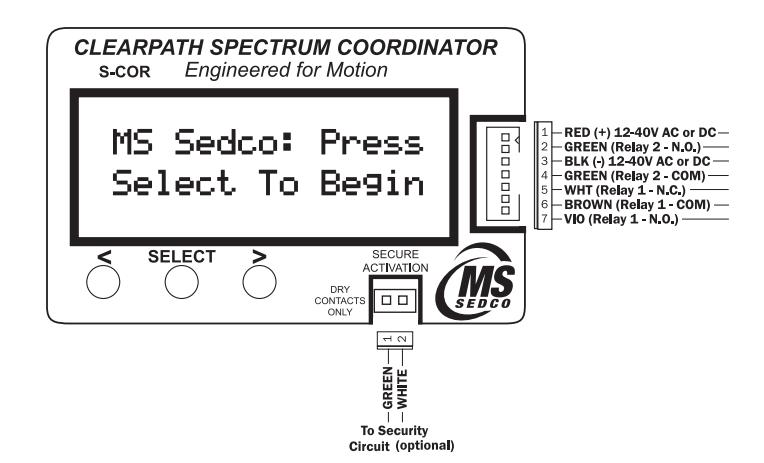

• Two built-in outputs (S-COR).
• 3 year battery life (S-TRX).

ClearPath Spectrum products operate at 2.4 GHz, making the wave length more than 5 times shorter than commonly-used frequencies. Shorter waves pass through cracks and barriers easier, and transceivers will continue to attempt to contact the Coordinator until it receives an acknowledgement.

American National Standards Institute (ANSI) - Building Hardware Manufacturers Association (BHMA) - ANSI/ BHMA A156.10 & A156.19.

ClearPath™ S-COR Spectrum Coordinator
