Clearpath CP-TX-J Specification Sheet

PRODUCT DESCRIPTION

The CP/TX-J jamb mount transmitter is part of the ClearPath Radio Control Push Plate Switch Activation System that provides the most reliable wireless activation of automatic doors available.

The CP/TX-J transmitter comes prewired and installed with battery in a surface mount box making installation quick and easy and the entire assembly will fit on a 1 3/4" door frame.

The CP/TX-J can transmit three different frequencies. If interference is encountered on one frequency, simply switch to one of the other frequencies to solve the problem. The CP/TX-J can also be used interchangeably with other manufacturer's products that operate on its frequencies as well. Only ClearPath offers this flexibility.

American National Standards Institute (ANSI) - Building Hardware Manufacturers Association (BHMA) - ANSI/ BHMA A156.10 & A156.19.

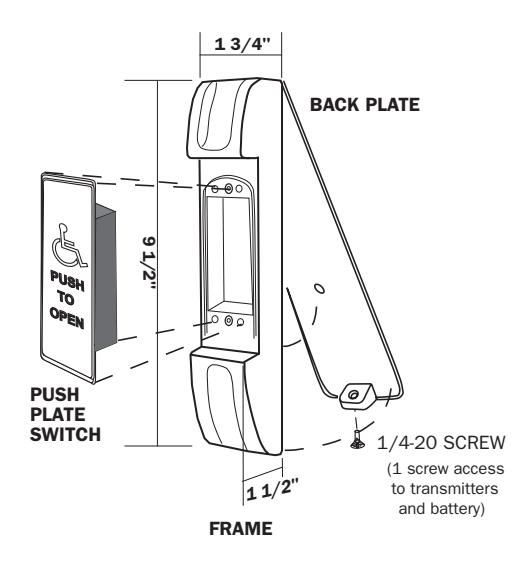

CP/TX-J Radio Transmitter (Pictured with 59J-H—Sold Separately)

TRANSMITTERS CLEARPATH™ CP/TX-J

(Pictured with 59J-H—Switches availableseparately or included in ClearPath Kits)

TECHNICAL DATA

• Utilizes ProprietaryHigh Definition Radio Control™ (HDRC™) For Unsurpassed Signal Transmission Clarity
• Three User Selectable Frequencies Available In Single Unit: HDRC™, 300 MHz, 390 MHz
• FCC License For All Three Frequencies
• SignalLock™ Guarantees Signal Transmission When Push Plate Switch Is Pressed
• Power Saving Circuitry Extends Battery Life
• Integrated Signal Radiating Antenna Boosts Signal Strength
• Transmitter And Battery Factory Prewired And Installed In Mounting Boxes
• Powered By Standard 9V Battery
• Quick Battery Access
• Sequencing Transmitter Available (CP/STX-J)
• Temperature Range: -4°F to 140°F (-20°C to 60°C)

West: 800-544-4422 • East: 800-225-6737
