CLEARPATH™ CP/RX MULTI-MODE RECEIVER

ClearPath™ CP/RX Multi-Mode Receive

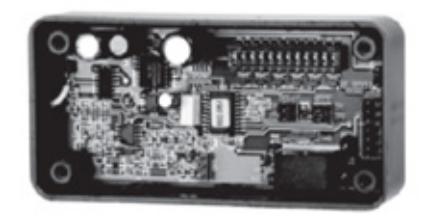

PRODUCT DESCRIPTION

he CP/RX receiver is part of the ClearPath Radio Control Push Plate Switch Activation System that provides the most reliable wireless activation of automatic doors available. All ClearPath transmitters communicate with this one receiver.

In addition to being a receiver, the CP/RX can be easily programmed to become a timer, dual receiver or a sequencing receiver.

The CP/RX accepts three different frequencies. If interference is encountered on one frequency, simply switch to one of the other frequencies to solve the problem. The CP/RX can also be used interchangeably with other manufacturer's products that operate on its frequencies. Only ClearPath offers this flexibility.

American National Standards Insti-tute (ANSI) - Building Hardware Manufacturers Association (BHMA) - ANSI/BHMA A156.10 & A156.19.

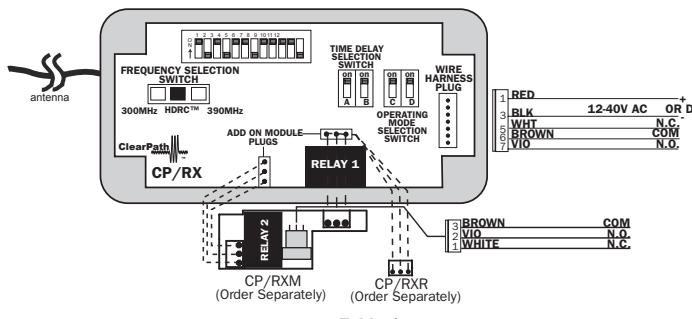

OVERALL DIMENSIONS: 2"W x 4"L x 1"H

Table 1

Mode#	С	D	Operating Mode
			Normal Receiver (Factory Setting)
2	ON	OFF	Receiver with Time Delayed Output
3*	OFF	ON	Dual Receiver
			Receiver With Sequenced Outputs
5**	N/A	N/A	Receiver With Ratchet Relay

*Requires CP/RXM **Requires CP/RXR

Table 2
Α	В	Time Delay
ON	ON	5 Seconds
ON	OFF	10 Seconds
OFF	ON	15 Seconds
OFF	OFF	20 Seconds

TECHNICAL DATA

Utilizes Proprietary High Definition Radio Control™ (HDRC™) For Unsurpassed Signal Transmission Clarity.
Three User Selectable Frequencies Available in Single Unit: HDRC™, 300 MHz, 390 MHz
FCC License For All Three Frequencies
5 Programming Modes:
1. Mode 1: Standard Receiver (factory setting)
2. Mode 2: Receiver With Adjustable Time Delay
3. Mode 3*: Dual Channel Receiver
4. Mode 4*: Receiver With Sequenced Outputs
5. Mode 5**: Receiver With Ratchet Relay
*Modes 3 & 4 Require The RX MAdd-On Module. This Module Plugs Directly Onto The CP/RX Main Circuit Board And Provides A Second Output.
**Mode 5 Requires The RXR Add-On Module. The Module Plugs Directly Onto The CP/RX Main Circuit Board and Allows For Initial Signal To Hold Relay Closed Until A Second Signal Is Received.
N.O. And N.C. Contacts
Pluggable Wire Harness
Internal Surge Protection Wires Directly To Electric Locking Devices
Output Contact: Form C, RatedAt 3 Amps
Power Requirements: 12V To24V AC or DC
Relay Contact Rating: 3 amp @24V AC
Compact Size: 4"L x 2"W x 1"H
Temperature Range:-4°F to 140°F (-20°C to 60°C)
