CONTACT ARRANGEMENT

ARROW INDICATES CONTACT CLOSURE

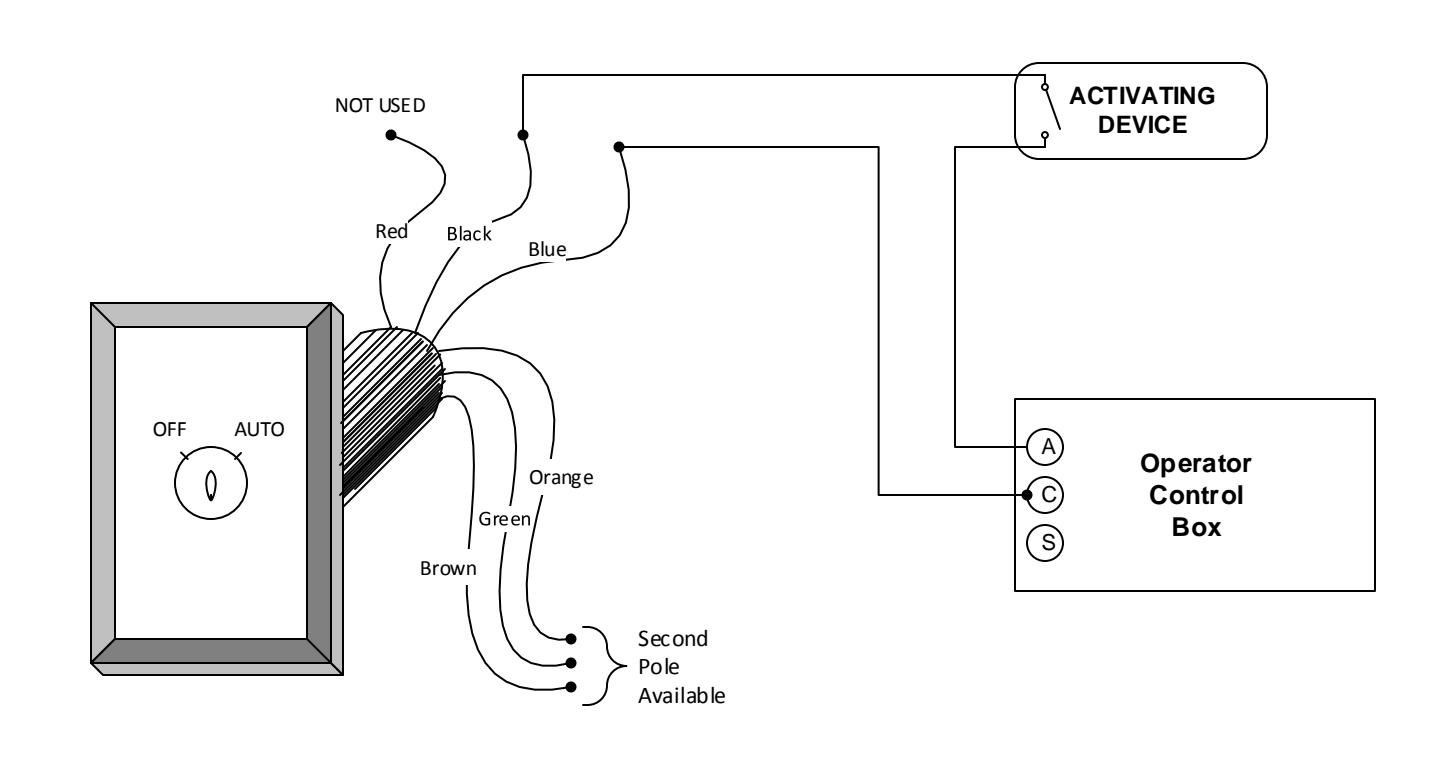

TYPICAL WIRING DIAGRAM

SINGLE SWING OR SLIDING DOOR

SPECIFICATIONS

• Contact Rating : 4 amps @ 125VAC
• 4 Tumbler Lock
• All locks keyed alike
• Key removable in both positions
• Switch Depth: 1 1/4"
• Frame hole diameter: 1 1/8" min.

Camden Door Controls

5502 Timberlea Blvd Mississauga, Ontario L4W 2T7

SCALE: NONE DRAWN BY: DGW DATE: 05/16/03 REVISED: 10/06/14

Two Position Maintained Keyswitch (CM-160/170/180 -21)

DRAWING No: 40-82B016 FILENAME: CM_160_21.vsd
