Camden Three Position Keyswitch CM-160 170 180 23 Manual
Open the original PDF document
View PDF
Pos 1 OFF
Pos 2 DAY
Pos 3 NIGHT
ARROW INDICATES CONTACT CLOSURE
SPECIFICATIONS
- Contact Rating : 4 amps @ 125VAC
- 4 Tumbler Lock
- All locks keyed alike
- Key removable in all positions
- Switch Depth: 1 1/4"
- Frame hole diameter: 1 1/8" min.
Camden Door Controls
5502 Timberlea Blvd. Mississauga, Ontario L4W 2T7
Exterior Wall
SCALE: NONE DRAWN BY: DGW DATE: 05/16/03 REVISED:

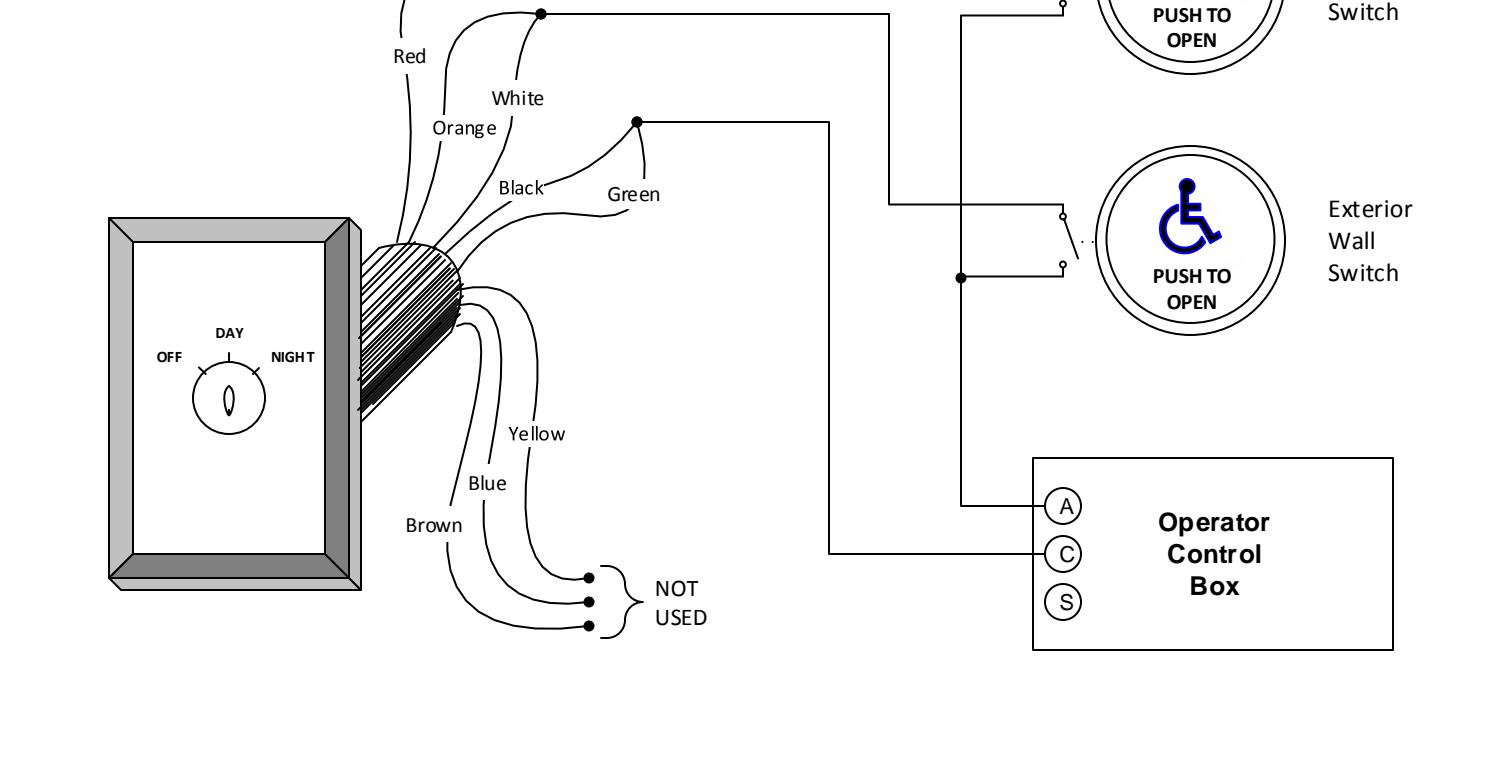

TYPICAL WIRING DIAGRAM SINGLE SWING DOOR
10/06/14
Three Position Keyswitch (CM-160/170/180 -23)
DRAWING No: 40-82B005 FILENAME: CM_160_23.vsd
