Camden Three Position Keyswitch CM-160 170 180 22 Manual
Open the original PDF document
View PDF
Pos 1 AUTO
Pos 2 OFF
Pos 3 HOLD-OPEN
ARROW INDICATES CONTACT CLOSURE

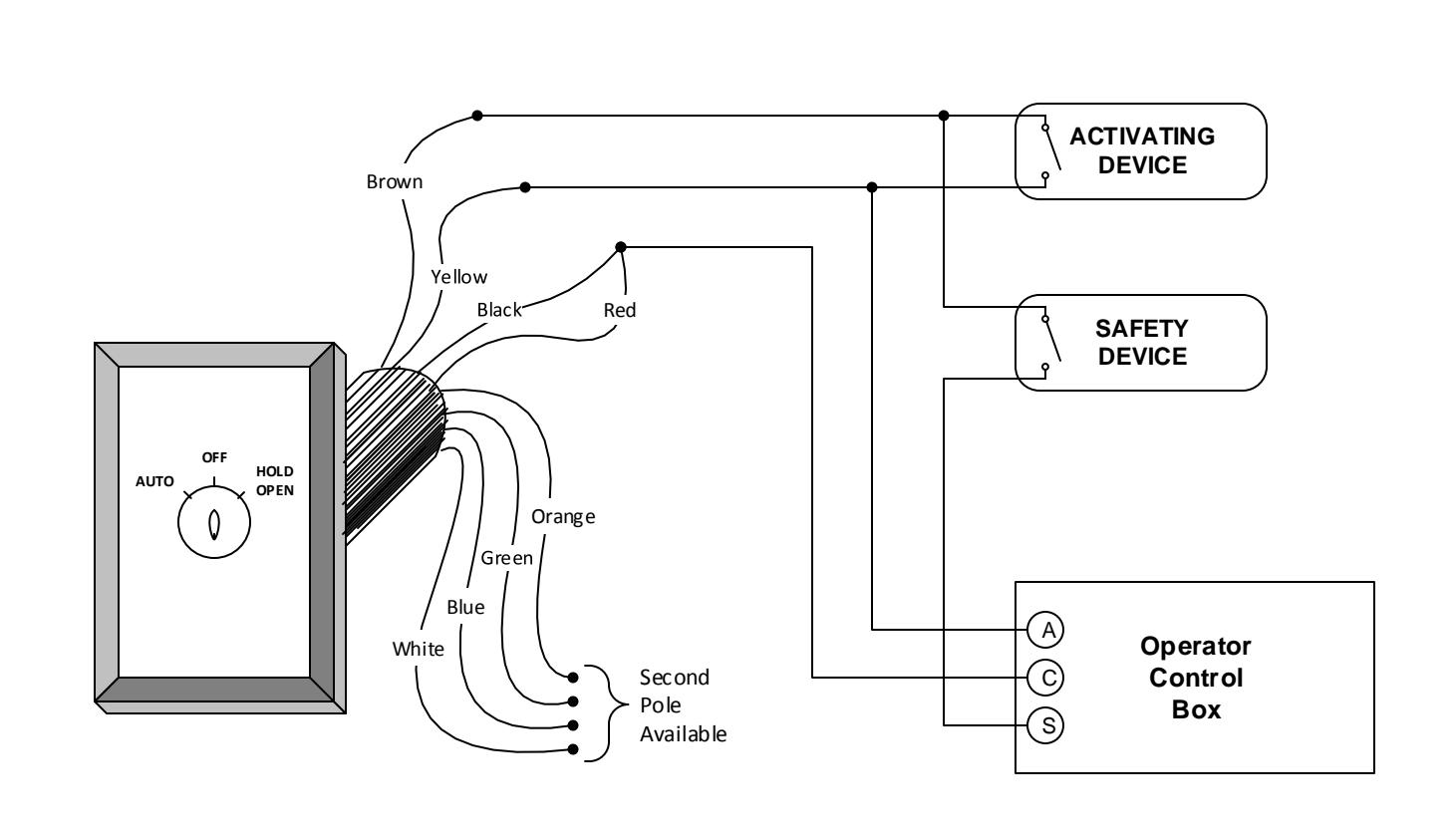

TYPICAL WIRING DIAGRAM
SINGLE SWING DOOR
SPECIFICATIONS
- Contact Rating: 4 amps @ 125VAC
- 4 Tumbler Lock
- All locks keyed alike
- Key removable in all positions
- Switch Depth: 1 1/4"
- Frame hole diameter: 1 1/8" min.
ยท Camden
Camden Door Controls
5502 Timberlea Blvd. Mississauga, Ontario L4W 2T7
SCALE: NONE DRAWN BY: DGW DATE: 05/16/03 REVISED: .10/06/14
Three Position Keyswitch (CM-160/170/180 -22)
DRAWING No: 40-82B004 F
FILENAME: CM_160_22.vsd
