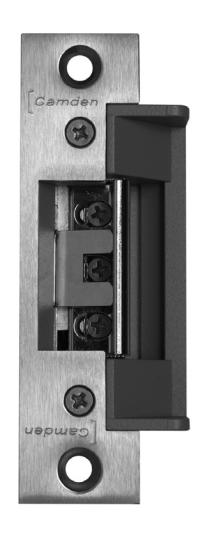

CX-EPD2000L

SERIES 20 PRE LOAD STRIKES

CENTERLINE LATCH ENTRY, 1/2" - 5/8" LATCH PROJECTION (THROW)

FEATURES

• PRE LOAD (FAIL SECURE ONLY) 20 LBS@12-24V AC.
• 4 FACEPLATE OPTIONS
• ADJUSTABLE KEEPER
• LATCH MONITORING, STANDARD
• STATIC STRENGTH 1,500LBS.
• SELECTABLE 12/24V AC/DC

• SELECTABLE FAIL SAFE/ FAIL SECURE
• REVERSIBLE FOR RIGHT OR LEFT HAND DOORS
• 5 YEAR LIMITED WARRANTY

DESCRIPTION

Camden Series 20 Pre Load electric strikes offer the highest pre load rating, 12/24V AC/DC operation, adjustable keeper, fail safe/fail secure operation, and latch monitoring. Latch cavity accommodates cylindrical locksets with 1/2" to 5/8" projection (1/8" door gap required) with a range of faceplates for installation in steel, aluminum and wood doors.

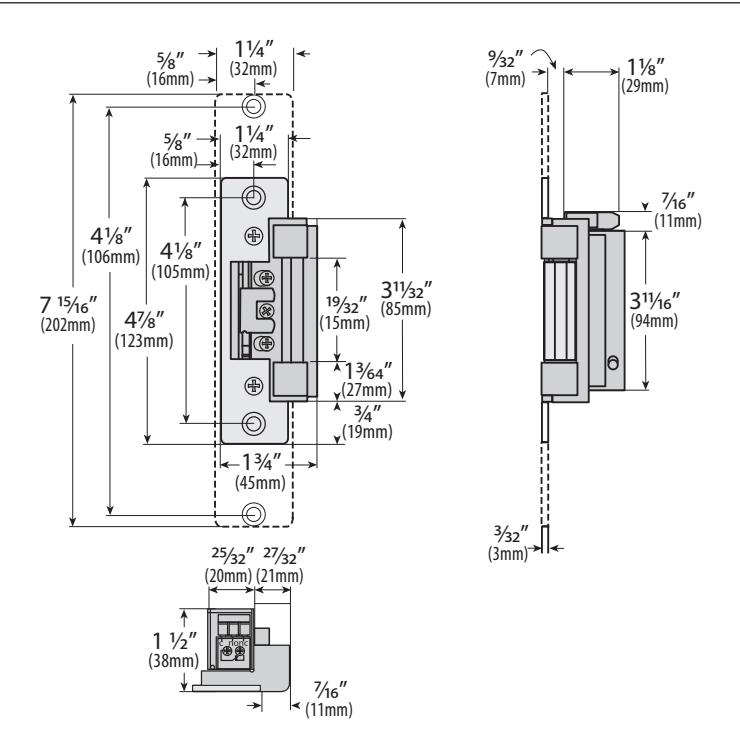

DIMENSIONS

DOOR FRAME TYPES

COMPATIBLE LOCKSETS

ORDERING INFORMATION

ELECTRIC STRIKE ONLY

CX-EPD-2000L: STANDARD BODY, NO FACEPLATE

ELECTRIC STRIKE WITH FACEPLATE

CX-EPD-2010L: ANSI SQUARE, 4 7/8" X 1 1/4" CX-EPD-2020L: ANSI ROUND, 4 7/8" X 1 1/4"

CX-EPD-2030L: HOLLOW METAL DOORS 6 7/8" X 1 1/4"

CX-EPD-2040L: WOOD DOOR 7 15/16" X 1 7/16"

FACEPLATES

MODEL	DESCRIPTION
CX-ESP2 CX-ESP3	ANSI Square, 4 7/8" x 1 1/4", square corners, stainless steel ANSI Round, 4 7/8" x 1 1/4", rounded corners, stainless steel Hollow Metal Door, 6 7/8" x 1 1/4", rounded corners, stainless steel Wood Door, 7 15/16" x 1 1/4", rounded corners, stainless steel

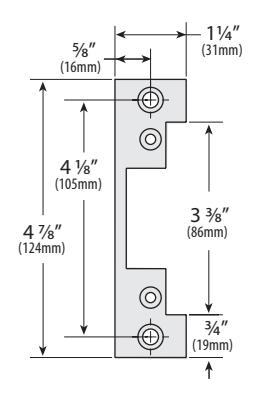

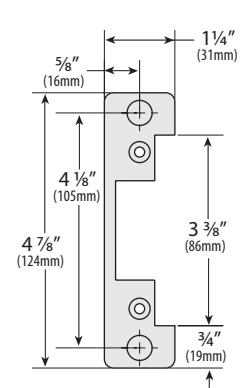

ESP1 - ANSI SQUARE

ESP3 - HOLLOW METAL DOOR

ESP4 - WOOD DOOR

CROSS REFERENCE CHART

CAMDEN	RCI	ADAMS RITE	HES	ROFU	FOLGER ADAMS	VON DUPRIN	DYNALOCK
CX-EPD2000L	N/A	7400	7000	N/A	N/A	N/A	N/A
