CX-247

7 DAY PROGRAMMABLE TIMER

CX-247

FEATURES

• MICROPROCESSOR CONTROL
• 15 DAILY OR WEEKLY SCHEDULES
• 16 'ON' AND 'OFF' EVENTS
• EXTREMELY COMPACT SIZE
• MEMORY BACKUP

• EASY MOUNTING
• 'H' MODELS FEATURE 'FIRST-MAN-IN' FUNCTION (HOLIDAY/SNOW DAY)
• 16A@ 30 V DC CONTACTS
• 3 YEAR WARRANTY

DESCRIPTION

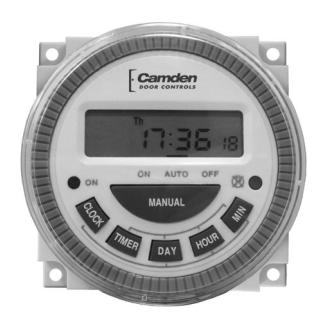

Camden Door Controls is an ultra compact programmable 7 day timer. It features a large digital display, and 16 flexible easy-to-program on/off schedules. An internal permacell keeps the programs and display readable in the event of a power loss or brownout.

The CX-247 can be ordered to operate on 12V, or 24V, AC/DC. The heavy duty relay contacts are rated at 16 amps @ 30 VDC.

The "First-Man-In" option maintains security during "snow-days", sick days, employee absenteeism. The timer schedule does not engage, (and the door remains locked) until the "First-Man-In" activates the entry system.

APPLICATION

The CX-247 can automatically and reliably control electrified locks and magnets, automatic overhead and pedestrian doors, or control lighting or energy management devices.

The "First-Man-In" option eliminates the need for a complex 365-day timer.

The compact size and dust and water resistant enclosure, ensure it will meet virtually any timing application.

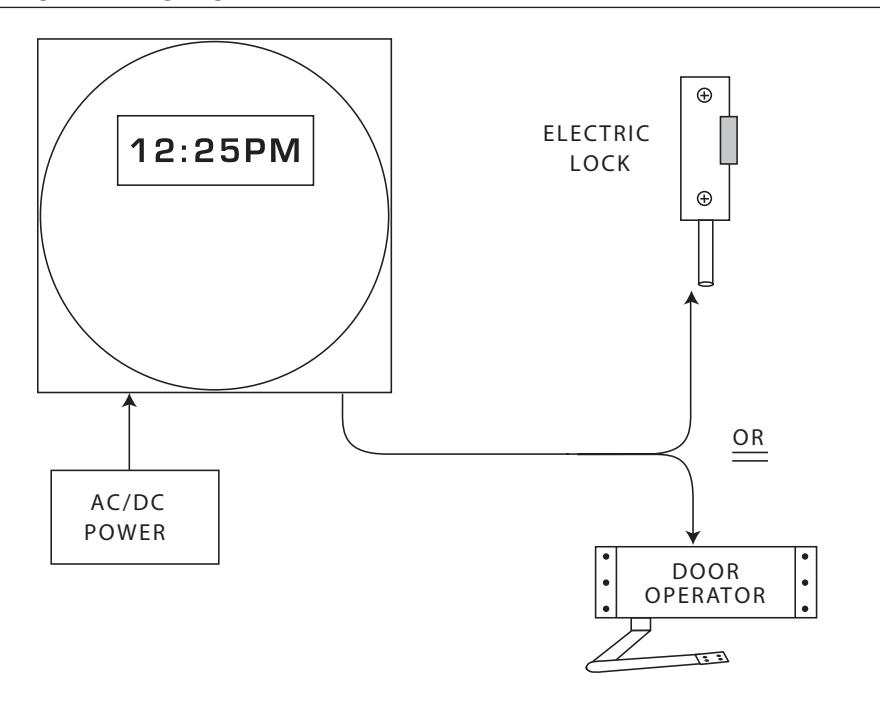

TYPICAL APPLICATION

SPECIFICATIONS

	CX-247-12	CX-247-24
OPERATING
VOLTAGE:	12V AC/DC	24 V AC/DC

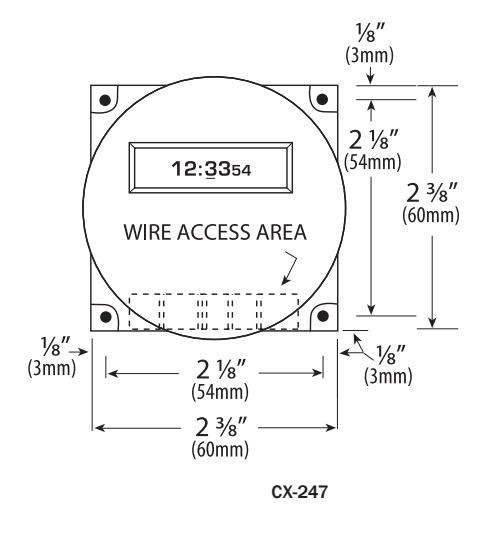

DIMENSIONS:	2 3/8" H x 2 3/8" W x 1 1/4" D (60mm x 60mm x 32mm)
MOUNTING:	4 MOUNTING SCREWS
ENCLOSURE:		WHITE ABS PLASTIC
CURRENT DRAW:		0.1 MA IDLE, 10 MA OPERATING
RESPONSE TIME:	.03 SECONDS
BACK UP:	INTERNAL PERMACELL
PROGRAMS:		16
RELAY OUTPUTS:		1 X FORM 'C' (SPDT)
CONTACT RATING:		16 AMPS @ 30 VAC
ELECTRICAL LIFE:	250,000 @ RATED CAPACITY

ORDERING INFORMATION

MODEL	DESCRIPTION
CX-247-12:	7 DAY TIMER - 12V
CX-247-24:	7 DAY TIMER - 24V
CX-247H-12:	7 DAY TIMER WITH FIRST-MAN-IN-FUNCTION - 12V
CX-247H-24:	7 DAY TIMER WITH FIRST-MAN-IN-FUNCTION - 24V
