CX-1085M

PNEUMATIC TIME DELAY

FEATURES

• MAY BE ORDERED SEPARATELY OR ASSEMBLED WITH CAMDEN PUSH BUTTONS
• ADJUSTABLE 1 TO 60 SECOND TIME DELAY
• HEAVY-DUTY CONSTRUCTION FOR LONG SERVICE LIFE
• DPST (FORM Z) CONTACTS
• 5 AMPS @ 24V DC CONTACTS
• TO VIEW EXIT BUTTONS WITH PNEUMATIC TIMERS, SEE THE FOLLOW SPEC SHEET: CM-4000/5000/7000/8000 SERIES (MKTG-LIT-SP-PNEUMSWR2)

CX-1085M DESCRIPTION

Camden Door Controls CX-1085M pneumatic time delay requires no power to operate. The timing range is 1 – 60 seconds, and is easily adjusted by a thumbscrew.

Camden CX-1085M Pneumatic Timer is integrated into the CM-4085/4185, 5085, 7085/7185 and CM-8085/8185 Push Buttons.

APPLICATION

Camden pneumatic timers are ideal for use to de-activate magnetic locks where building codes mandate a non-electronic means of egress, or where power is not available for a conventional timer.

PNEUMATIC TIMERS

SPECIFICATIONS

OPERATING FORCE: MAXIMUM 8 OZ. SWITCH RATING: 5 AMPS @ 30V DC TIME RANGE: 1 - 60 SEC. + - 15% TEMPERATURE RANGE: 15° F TO 120 ° F

(-9° C TO 49° C)

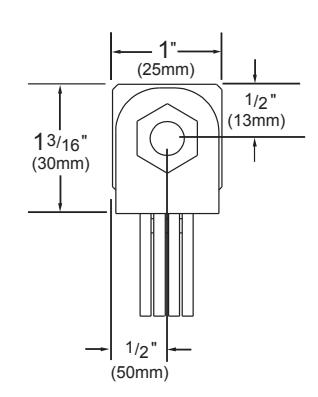

TIMER LIFE: 1,000,000 OPERATIONS DIMENSIONS: 1" H x 1 3/8"W x 2 1/4"D

(25mm x 35mm x 57mm)

ORDERING INFORMATION

MODEL DESCRIPTION

CX-1085M: PNEUMATIC TIMER FOR PUSH SWITCHES. SWITCH OPTIONS FOR

CM-4085, CM-4185, CM-5085, CM-7085, CM-7185, CM-8085 AND

CM-8185 PUSH BUTTONS.

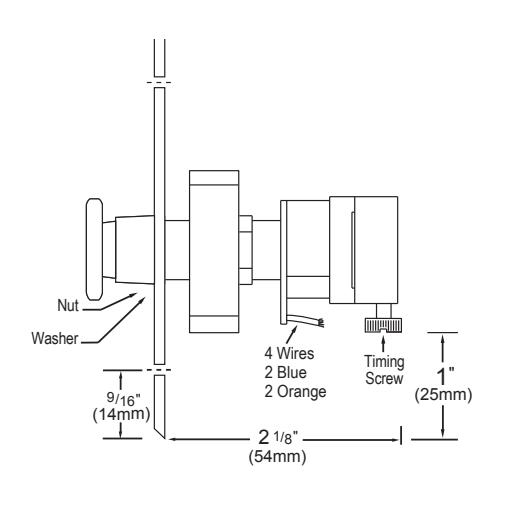

CX-1085M SIDE VIEW (SHOWN WITH PUSH BUTTON)
