Camden RFCT Cable Tool Instructions

Open the original PDF document

Unroll Cable tool, and locate pin plug end.

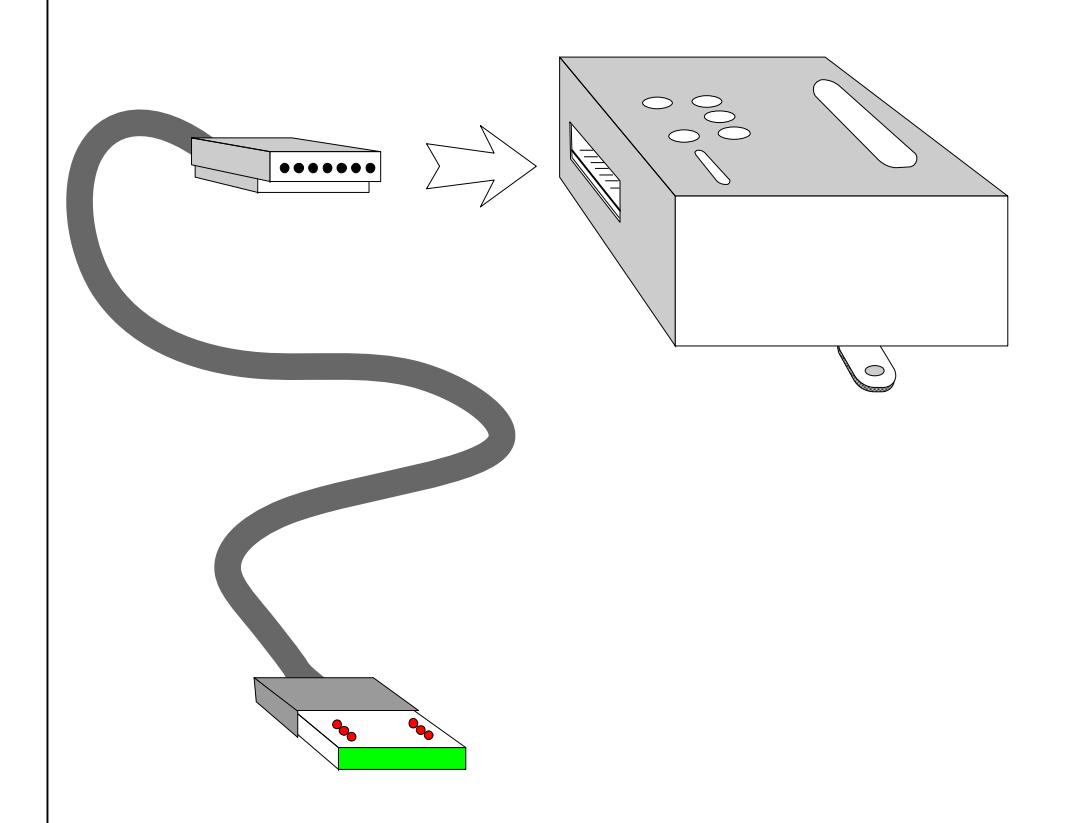

Carefully align the 7 holes in the plug with the 7 pins in the RX-91 or RX-92 Receiver, and push on firmly.

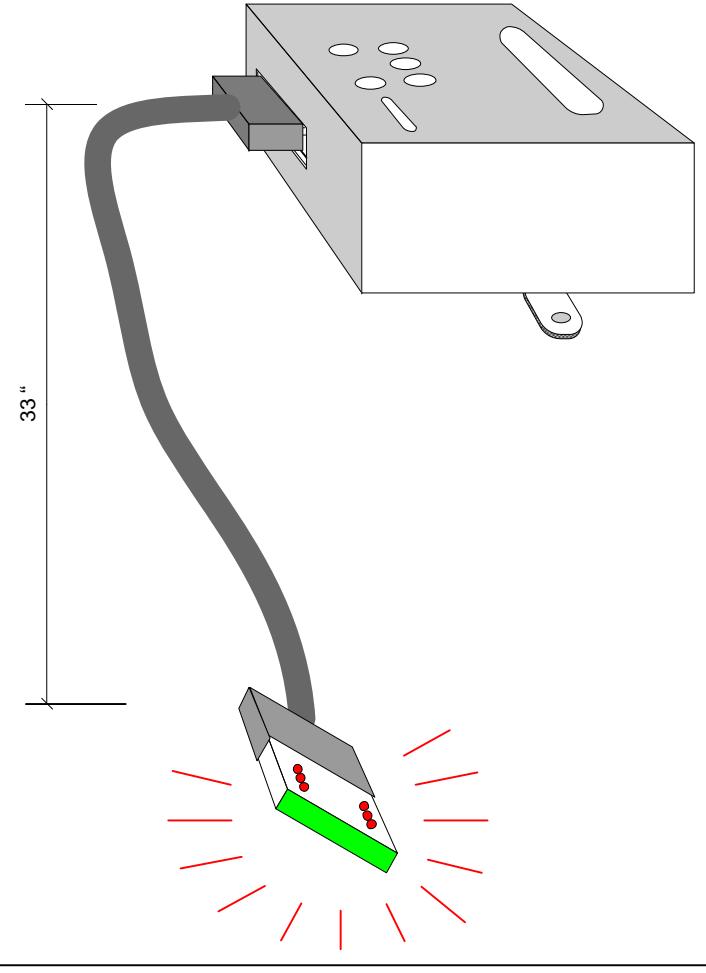

The LED end can freely hang down in the doorway, and LED's are visible from both sides.
Display is controlled by Dipswitch #4. Set OFF to view relay status, or set ON to view Signal Strength
When set-up is complete, simply unplug cable tool, roll up and save for the next installation.
