LAZERPOINT RF™ WIRELESS DOOR ACTIVATION SYSTEM, RX-90 RECEIVER
LAZERPOINT RF™ 915MHZ. WIRELESS DOOR CONTROL SYSTEM
DESCRIPTION
Lazerpoint RF™ is a completely new wireless solution for automatic door operators. The system introduces the many advantages of 915MHz. spread spectrum wireless technology to the automatic door market. The system encompasses the widest range of transmitters, receivers, activation devices and switch enclosures available today. Lazerpoint RF receivers also support 300MHz., 318MHz., 390MHz., and 433MHz. transmitters (with optional daughterboards).
Lithium batteries recommended for environments below 0°C (32°F).
APPLICATION
Lazerpoint RF™ 915 Mhz. spread spectrum wireless systems are designed for use with any automatic door operator. The system offers exceptional reliability and a complete wireless activation solution, whether in new construction or retrofit (with the option to utilize existing fixed frequency transmitters), Lazerpoint RF™ technology is also utilized with other wireless activation devices, including CM-120 Series keypads and CM-330 Series Hands Free switches. Lazerpoint RF™ is designed to reduce the cost of installation with a range of exclusive features, including door sequencing, which eliminates the need to purchase a separate door control relay.
SYSTEM FEATURES
- LAZERPOINT RF™ IS COMPATIBLE WITH ALL AUTOMATIC DOOR OPERATORS.
- ADVANCED 915MHZ SPREAD SPECTRUM (BROADBAND) WIRELESS
- MULTI-YEAR BATTERY LIFE (USING INEXPENSIVE 'AAA' ALKALINE BATTERIES) AND EXCLUSIVE 'LOW BATTERY','GAS GAUGE' AND 'STUCK SWITCH' AUDIBLE ALERTS.
- NEW CM-RX-90 ADVANCED RECEIVER, WITH 1 RELAY, FEATURES 3 MODES (DELAY, NON-DELAY & LATCHING). IDEAL FOR VESTIBULE APPLICATIONS.
- RX-92 RECEIVER MODEL WITH TWO CHANNELS PLUS 6 OPERATING MODES; SAVES TIME AND MONEY BY AVOIDING THE COST OF BUYING AND INSTALLING ADDITIONAL COMPONENTS.
- OPTIONAL PLUG-IN RECEIVER MODULES PROVIDE COMPATIBILITY WITH OTHER RF FREQUENCIES.
- 'PUSH AND LEARN' TRANSMITTER ENROLLMENT AND SIGNAL STRENGTH INDICATORS, MAKES LAZERPOINT RF™ THE EASIEST SYSTEM TO INSTALL
- ULTRA COMPACT SWITCH TRANSMITTER FITS ANYWHERE, INCLUDING JAMB BOX. CM-TX9: 2 1/4" X 5/8" X 3/8" (57MM X 16MM X 10MM)
- ULTRA COMPACT RECEIVERS CAN BE MOUNTED IN DOOR OPERATOR CABINETS. CM-RX-90: 2-5/8"L x 1-1/2"W x 1"D (67MM X 38MM X 25MM)
- COMPACT ADA COMPLIANT 1, 2 AND 4 BUTTON KEY FOBS. CM-TXLF 1/2/4: 2 9/16"L x 1 9/16"W x 5/8"D
(65MM X 40MM X 16MM)
- INNOVATIVE FOB BASE FOR WHEELCHAIR, VISOR, BELT OR WALL MOUTING. CM-TXLFB: 4"L x 1 5/8"W x 3/4"D (102MM X 42MM X 19MM)
- PLUG-IN LAZERPOINT RF™ WIRELESS TRANSMITTER MODULE FOR CM-120 SERIES DIGITAL KEYPADS AND CM-330 SERIES HANDS FREE SWITCHES CM-TX99: 1 9/16"L x 9/16"W x 5/16"H (40MM X 15MM X 8MM)
- CAMDEN PRODUCT QUALITY BACKED BY A FULL 3 YEAR REPLACEMENT WARRANTY
LAZERPOINT RF™ RECEIVER FEATURES
CM-RX-90 ADVANCED SINGLE RELAY RECEIVER
- (1) FORM 'C' RELAY, 3 AMPS @ 30VDC
- 3 OPERATING MODES, INCLUDING DELAYED, NO DELAY AND LATCHING RELAY
- EASILY CONFIGURED FOR USE IN VESTIBULE APPLICATIONS
- ADJUSTABLE DOOR HOLD OPEN/DELAY TIMER
CM-RX-91 SINGLE RELAY RECEIVER
- (1) FORM 'C' RELAY, 3 AMPS @ 30V DC
- SLOT FOR (1) OPTIONAL PLUG-IN RECEIVER BOARD
- ADJUSTABLE DOOR HOLD OPEN TIMER
- CONNECTION FOR CM-RFCT LED CABLE TOOL
CM-RX-92 DUAL RELAY RECEIVER
- (2) FORM 'C' RELAYS, 3 AMPS @ 30V DC
- SLOTS FOR (2) OPTIONAL PLUG-IN RECEIVER BOARDS
- (3) 1-30 SECOND ADJUSTABLE TIMERS
- 4 POSITION DIP SWITCH SELECTS 6 UNIQUE OPERATING MODES (SEE NEXT PAGE)
- CONNECTION FOR CM-RFCT LED CABLE TOOL
FIXED FREQUENCY RECEIVER DAUGHTERBOARDS
- 300MHZ, 318MHZ, 390MHZ AND 433MHZ RECEIVERS ARE COMPATIBLE WITH MOST BRANDS OF FIXED FREQUENCY WIRELESS SYSTEMS. CONTACT CAMDEN FOR CONFIRMATION OF COMPATIBILITY WITH YOUR SYSTEM.
- PLUG-IN DESIGN. UP TO 2 FIXED FREQUENCY DAUGHTERBOARDS CAN BE INSERTED INTO A RECEIVER, FOR A MAXIMUM OF 3 WIRELESS FREQUENCIES ON ONE RECEIVER (CM-RX92)
LAZERPOINT RF™ TRANSMITTER FEATURES
CM-TX9 SINGLE CHANNEL TRANSMITTER
- AUDIBLE BATTERY TEST, LOW BATTERY AND STUCK SWITCH INDICATION
- 'INSTANT RESPONSE' CAPTURES BRIEF SWITCH ACTIVATIONS
- COMPATIBLE WITH ALL PUSH BUTTONS AND PUSH PLATES
- READILY AVAILABLE 'AAA' BATTERY OPERATION
- OPTIONAL LITHIUM BATTERIES ARE RECOMMENDED WHERE OPERATING TEMPERATURES ARE BELOW 32°F (0°C)
CM-TXLF FOB TRANSMITTER FEATURES
- COMPACT AND DURABLE WITH SELECTION OF ONE, TWO AND FOUR BUTTON KEY FOB TRANSMITTERS.
- LARGE, EASY TO ACTIVATE RAISED BUTTONS
- EXCLUSIVE BATTERY TEST GAUGE FEATURE
- EXCLUSIVE VISOR/WHEELCHAIR STRAP FOB BASE, ACCEPTS ANY CM-TXLF SERIES FOB
- LED VISUAL CONFIRMATION OF WIRELESS ACTIVATION
LAZERPOINT RF™ CABLE TOOL FEATURES
- INDICATES RELAY STATUS AND TRANSMITTER SIGNAL STRENGTH
- FOR USE WITH RX-91/92 RECEIVERS
- IDEAL FOR USE WHEN RECEIVER IS HIDDEN FROM VIEW DURING INSTALLATION

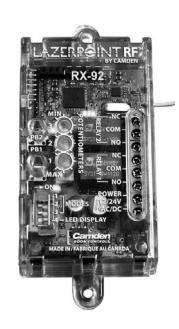

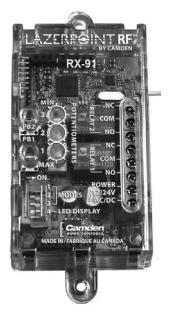

CM-RX-92 RECEIVER
OPTIONAL PLUG-IN RECEIVER BOARD (Other Models Similar)
CM-TX9 TRANSMITTER

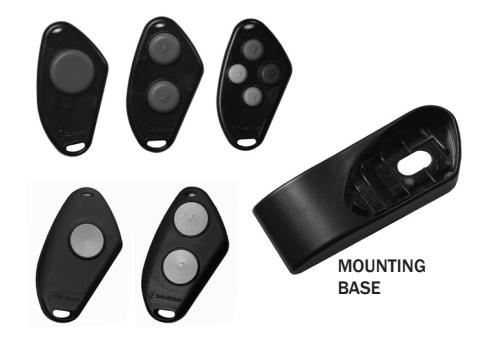

FOB TRANSMITTERS

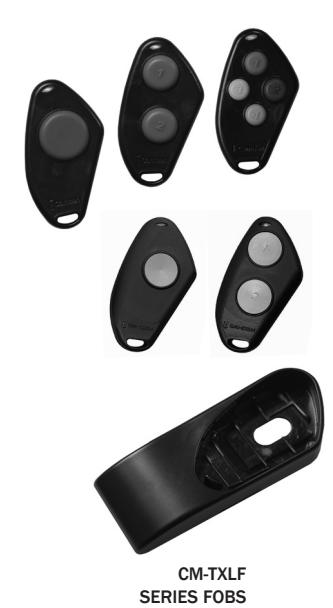

CM-TXLF SERIES
CM-RFCT CABLE TOOL
OPERATING MODES
| CM-RX-90 | |
|---|---|
| MODE 1 | DELAYED (1-15 SECOND DELAY) |
| MODE 2 | NO DELAY (1-30 SECOND HOLD OPEN) |
| MODE 3 | LATCHING |
| CM-RX-91 | |
| MODE 1 | ACTIVATION (1-30 SECOND HOLD OPEN) |
| CM-RX-92 | |
| MODE 1 | DUAL INDEPENDENT RELAY CONTROL |
| MODE 2 | SWITCHING (MAKE/BREAK RELAY) |
| MODE 3 | VESTIBULE, BI-DIRECTIONAL WIRED SEQUENCING |
| MODE 4 | VESTIBULE, USING 2 CM-RX-92 RECEIVERS |
| MODE 5 | ACCESS CONTROL, SIGNAL INPUT |
| MODE 6 | FREIGHT DOOR, TIMED LOCK OUTPUT |
SPECIFICATIONS
| CM-RX-90, CM-RX-91 & CM-RX-92 | |
|---|---|
| TRANSMITTER CAPACITY: | 40 |
| ENCLOSURE: | CLEAR PLASTIC CASE |
| VOLTAGE: | 12/24V, AC/DC |
| RESPONSE TIME: | 3 - 200 MS |
| LED'S: |
INDICATE: RELAY STATUS,
LEARN MODE, ERASE MODE & TIME SETTING |
| OUTPUTS: | CM-RX-90: (1) SPDT RELAY, 3 MODES |
| CM-RX91: (1) SPDT RELAY, 1 MODE | |
| CM-RX92: (2) SPDT RELAYS, 6 MODES | |
| CONTACT RATING: | 3 AMPS @ 30 VDC |
| OPERATING TIME: | 1 - 30 SECONDS |
| DELAY TIME: | 1 – 15 SECONDS |
| TEMP RATING: | -40°F TO 185°F (-40°C TO +85°C) |
| MOUNTING: | SCREWS OR VELCRO |
| DIMENSIONS: |
CM-RX-90:
2 5/8" H X1 1/2"W X 1"D (67mm x 38mm x 21mm) |
|
CM-RX-91/92:
3 1/2"H X 2"W X 1"D (89mm x 51mm x 25mm) |

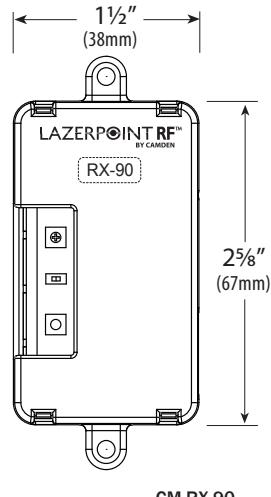

CM-RX-90 RECEIVER - FRONT VIEW

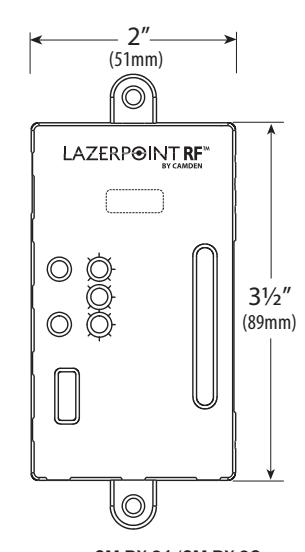

CM-RX-91/CM-RX-92 RECEIVERS - FRONT VIEW
RECEIVERS - SIDE VIEW
SPECIFICATIONS
| CM-TX-9 TRANSMITTER | ||
|---|---|---|
| TRANSMIT FREQUENCY: |
905.25 / 915.25 / 925.25 MHZ.
(SPREAD SPECTRUM TECHNOLOGY) |
|
| CODES: | 1 MILLION UNIQUE (20 BIT) CODES | |
| DIMENSION: |
2 1/4" H x 5/8" W x 3/8" D
(57mm x 16mm x 10mm) |
|
| MOUNTING: | DOUBLE SIDED FOAM TAPE | |
| SWITCH CONNECTION: |
2" x 10" LEADS WITH 1/4" QUICK DISCONNECT
TERMINATIONS |
|
|
BUILT-IN PIEZO SOUNDER:USED FOR LOW BATTERY STATUS, BATTERY GAUGE, AND
STUCK SWITCH INDICATOR |
||
| POWER: |
(2) 'AAA' ALKALINE BATTERIES (SUPPLIED)
(2) 'AAA' LITHIUM BATTERIES (OPTION) |
|
| BATTERY LIFE: | MINIMUM 500,000 OPERATIONS | |
| RANGE: | OVER 500 FT (152M), OPEN AREA | |
| TEMPERATURE RATING: | -40°F TO 185°F (-40°C TO +85°C) | |
| CM-TXLF SERIES FOB TRANSMITTERS | ||
|---|---|---|
| TRANSMIT FREQUENCY: |
905.25 / 915.25 / 925.25 MHZ.
(SPREAD SPECTRUM TECHNOLOGY) |
|
| CODES: | 1 MILLION UNIQUE (20 BIT) CODES | |
| DIMENSIONS: |
FOB: CM-TXLF: 2 9/16"H X 1 9/16" W X 5/8" D

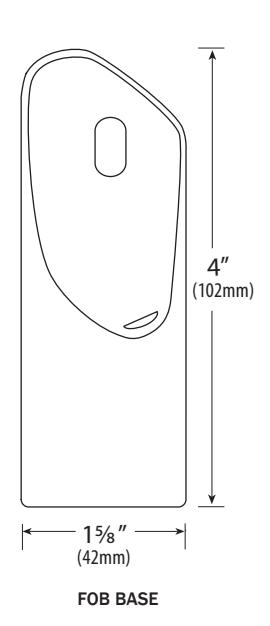

(65mm x 40mm x 16mm) BASE: CM-TXLFB: 4" H x 1 5/8" W x 3/4" D (102mm x 42mm x 19mm) |
|
| INDICATORS: |
TACTILE AND VISUAL (LED) INDICATION OF WIRELESS
ACTIVATION WITH BATTERY TEST |
|
| POWER: | CR-2032 LITHIUM BATTERY (SUPPLIED) | |
| BATTERY LIFE: | 115,000 OPERATIONS | |
| RANGE: | OVER 250 FT (76M), OPEN AREA | |
| TEMPERATURE RATING: | -40°F TO 185°F (-40°C TO +85°C) | |
FOB TRANSMITTER
ORDERING INFORMATION
TRANSMITTER
CM-TX-9 WALL SWITCH TRANSMITTER
CM-TX-99 PLUG-IN TWO CHANNEL TRANSMITTER (FOR CM-330 & CM-120 SERIES)
ADA COMPLIANT FOBS
CM-TXLF-1 ONE BUTTON KEY FOB CM-TXLF-2 TWO BUTTON KEY FOB CM-TXLF-4 FOUR BUTTON KEY FOB
RECESSED BUTTON FOBS
CM-TXLF-1LP ONE BUTTON KEY FOB CM-TXLF-2LP TWO BUTTON KEY FOB
KEY FOB BASE
CM-TXLFB CLIP-ON VISOR/ WHEELCHAIR STRAP BASE
OPTION: LITHIUM BATTERIES FOR CM-TX9
CM-XXX-L2 ADD 'L1' TO CM-TX9 MODEL # FOR 'AAA' LITHIUM BATTERIES IN PLACE OF ALKALINE CM-LP2 (2) 'AAA' LITHIUM BATTERIES
RECEIVERS
CM-RX-90 ADVANCED SINGLE RELAY RECEIVER CM-RX-91 BASIC SINGLE RELAY RECEIVER CM-RX-92 FULL FUNCTION DUAL RELAY RECEIVER
OPTIONAL PLUG-IN RECEIVER BOARDS
CM-RX-DBO 318MHZ. DAUGHTERBOARD (ORANGE ANTENNA) FOR CM-RX91 AND CM-RX92
SERVICE TOOL
CM-RFCT PLUG-IN CABLE TOOL, 33"
COMPATIBLE LAZERPOINT RF™ WIRELESS PRODUCTS
SUREWAVE™ HANDS-FREE SWITCHES
| CM-330 | HANDS-FREE SWITCH, BATTERY POWERED, WIRELESS, 0 RELAYS |
|---|---|
| CM-331 |
HANDS-FREE SWITCH, 1 RELAY, WITH OPTION FOR CM-TX99 WIRELESS
TRANSMITTER |
| CM-332 |
HANDS-FREE SWITCH, 2 RELAY, WITH OPTION FOR CM-TX99 WIRELESS
TRANSMITTER. SUREWAVE™ SWITCHES HAVE THE OPTION FOR POLYCARBONATE OR STAINLESS STEEL FACEPLATE, GRAPHIC OPTIONS AND PLUG-IN LIGHT RING |
| CM-333 |
HANDS-FREE SWITCH, BATTERY POWERED, 1 RELAY, OPTION FOR
CM-TX99 WIRELESS TRANSMITTER |
120 SERIES DIGITAL KEYPADS
| CM-120i |
INDOOR, STAND-ALONE OR WEIGAND OPERATION WITH OPTION FOR
CM-TX99 WIRELESS TRANSMITTER. |
|---|---|
| CM-120wV2 |
OUTDOOR, BACK-LIT, VANDAL RESISTANT, STAND-ALONE OR
WEIGAND OPERATION WITH OPTION FOR CM-TX99 WIRELESS TRANSMITTER. |
| CM-120TX | OUTDOOR, BACK-LIT, VANDAL RESISTANT, WIRELESS KEYPAD |
