Lazerpoint™ CM-TXLFB Series FOB Base Station

Installation Instructions

PACKAGE CONTENTS 1 1 1 2 CM-TXLFB Metal spring clip for belt or sun visor mounting 12" (30cm) Velcro Strap for mounting on a wheelchair arm rest #6 pan head screws to fasten to a counter or a desk

Section 1 General Description

Camden Lazerpoint™ TXLFB Base is designed for use with the following Key Fob transmitters:

CM-TXLF-1, CM-TXLF-2, & CM-TXLF-4.

Section 2 Installation

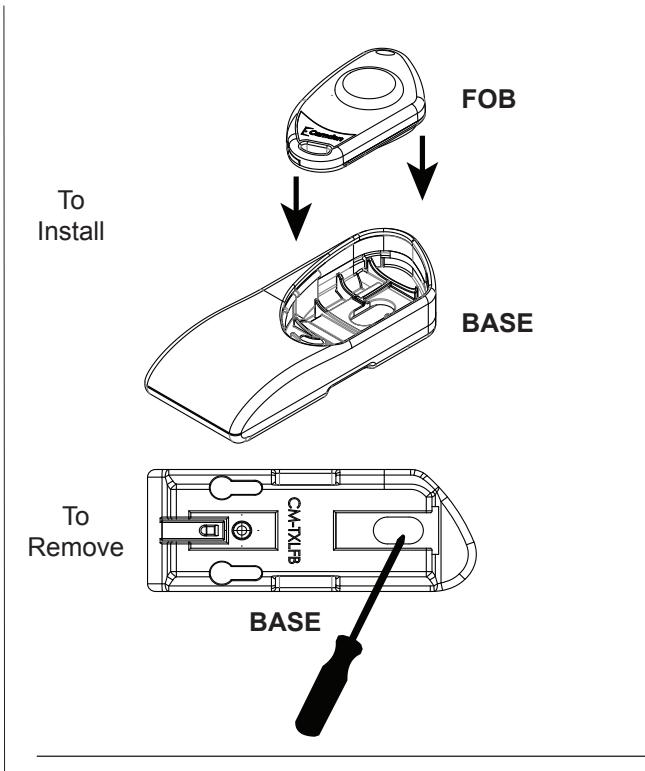

Insert a 1, 2 or 4 button transmitter into the base, button side up until you hear a click and the FOB is secure. Removal of the transmitter is accomplished by simply pushing a pen or small screw driver through the oval slot on the back of the base until the transmitter pops out.

Visor Mounting

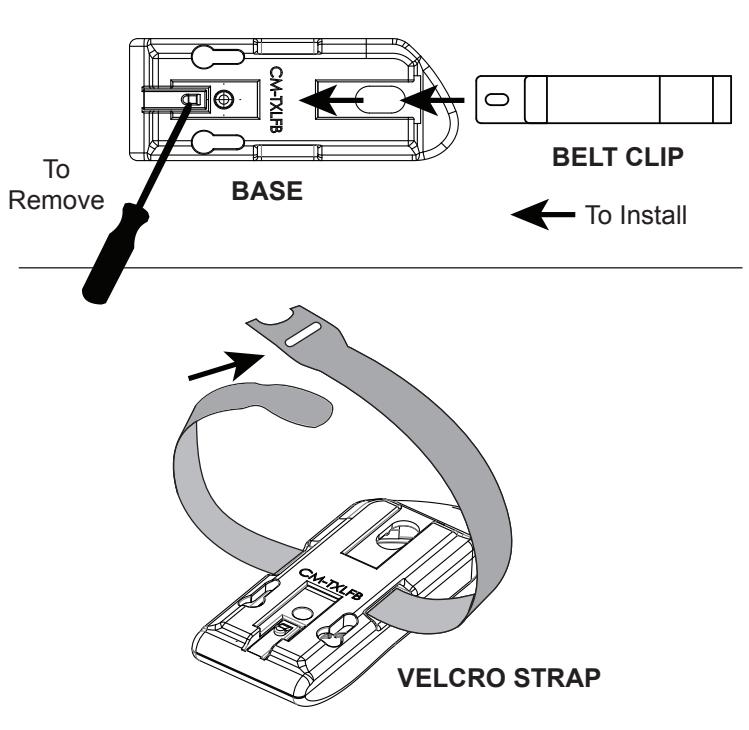

Turn the base over and slide the metal spring clip into the slot located in the end until it stops. You should hear a click as it locks into place. To remove the metal clip, gently insert a pen or small screwdriver into the hole in the clip and depress lock. Now completely slide the clip out from base.

Velcro Mounting

Turn the base over and insert the tapered end of the Velcro strap into the slot on one side of the base. Pull through until the base is mid-point along the Velcro strap. Place on the arm of a chair and securely fasten both Velcro ends to each other.

Screw Mounting

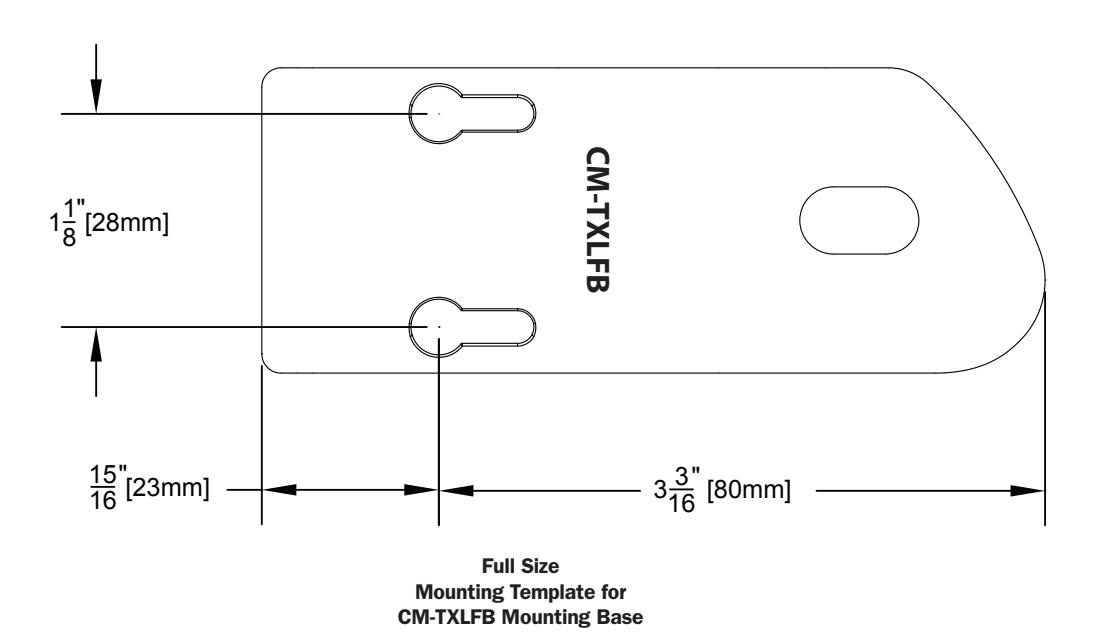

Use the full size template on page 2 and mark both screw locations. Drill two 1/8" pilot holes, 3/8" deep. Screw the included #6 wood screws in, until they are approximately 1/8" above surface. Now slide base onto screws. The base should be snug. If it is too tight to slide on, or too loose, simply adjust both screws to suit.

See over for full size template

Section 3

Warranty

Camden Door Controls guarantees the CM TXLFB mounting base to be free from manufacturing defects for 3 years from date of sale. If during the first 3 years this product fails to perform correctly, it may be returned to our factory where it will be repaired or replaced (at our discretion) without charge. Except as stated herein, Camden extends no warranties expressed or implied regarding function, performance or service.
