CONTACT ARRANGEMENT Orange Green Pos 1 OFF Orange Green Pos 2 EXIT Green White Pos 3 AUTO Black Red White Green Pos 4 HOLD-OPEN ARROW INDICATES CONTACT CLOSURE

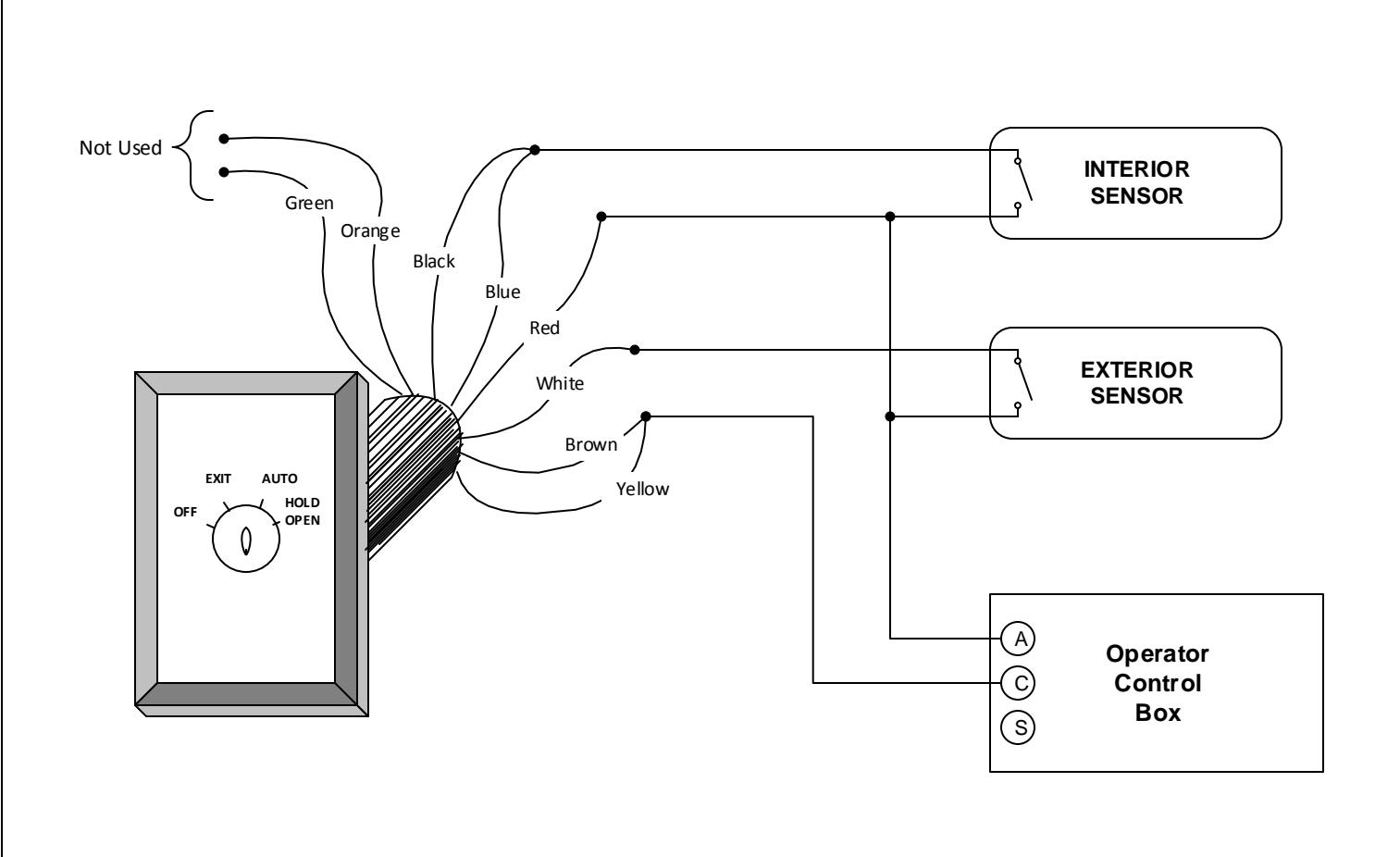

TYPICAL WIRING DIAGRAM

AUTOMATIC SLIDING DOOR WITH ONE-WAY FEATURE

SPECIFICATIONS

• Contact Rating: 4 amps @ 125VAC
• 4 Tumbler Lock
• All locks keyed alike
• Key removable in all positions
• Switch Depth: 1 1/4"
• Frame hole diameter: 1 1/8" min.

· Camden

Camden Door Controls

5502 Timberlea Blvd. Mississauga, ON L4W 2T7

SCALE: NONE DRAWN BY: DGW DATE: 05/16/03 REVISED:

Four Position Keyswitch (CM-160/170/180 -24)

DRAWING No: 40-82B020 FILENAME: CM_160_24.vsd
