Camden Electric Strikes Cross Reference Guide
Open the original PDF document
View PDF

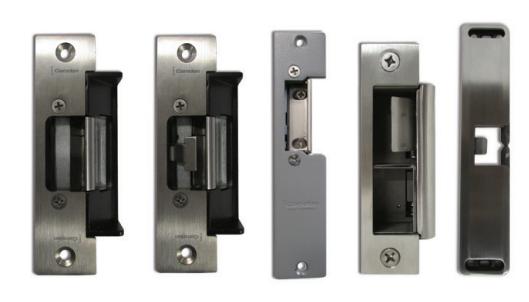

ELECTRIC STRIKES
| DESCRIPTION | CAMDEN |
RUTHERFORD
CONTROLS |
H.E.S. | ADAMS RITE | TRINE | LOCKNETICS | NOTES |
|---|---|---|---|---|---|---|---|
|
Cylindrical, Grade 1,
Low Profile |
CX-ED1079L | L65U | 5000C | N/A | N/A | CS-450-LBM |
Camden includes
3 faceplates and latch monitoring as standard |
|
Cylindrical, Grade 1,
Standard Depth |
CX-ED1079DL | S65U | 5200C | N/A | N/A | CS-750-LBM |
Camden includes
3 faceplates and latch monitoring as standard |
|
Cylindrical, Grade 2,
Low Profile |
CX-ED2079 | L65U | N/A | 7100/7101 | 4200 | CS-450 |
Camden includes
3 faceplates |
|
Cylindrical, Fire
Rated |
CX-ED1410 | F4114 | 7501 | 7270 | 4100 | N/A |
Camden includes
1 faceplate (ANSI with square corners) as standard |
| Pre-Load Cylindrical |
CX-EPD2000
Series |
N/A | 7000C | N/A | N/A | ||
|
Rim Strike, Surface
Mount |
CX-ED1259L | 0563 | 9600 | 74R1 | N/A |
RS-200-F or
RS-300-F |
Security and fire rated |
|
"All in One" Strike,
Fire Rated |
CX-ED1579L | F2164 | 1006CLB | N/A | 4800F | MS-100-F |
Camden includes
latch monitoring as standard |
| Glass Door Strikes |
CX-EL0900
Series |
N/A | N/A | N/A | N/A |
Note: Specifications are subject to change without notice. (June 12, 2018)
