CX-EPD 2850L

Pre Load Electric Strikes

Installation Instructions and Technical Support

Adjustment:

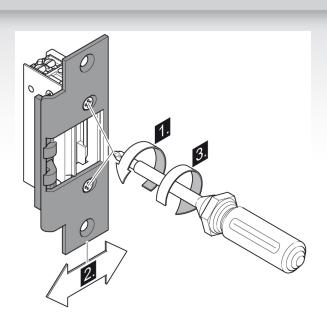

To!change!position!of!keeper, use!Phillips!screwdriver!to loosen!(3)!screws,!move! keeper!to!desired!location,! and!then!tighten.

all!pre!load!models

Selection:*

Fail!Safe/Fail!Secure use! Phillips!screwdriver!to!select! setting

Note:

Pre8load!feature!only! functional!with!fail!secure!

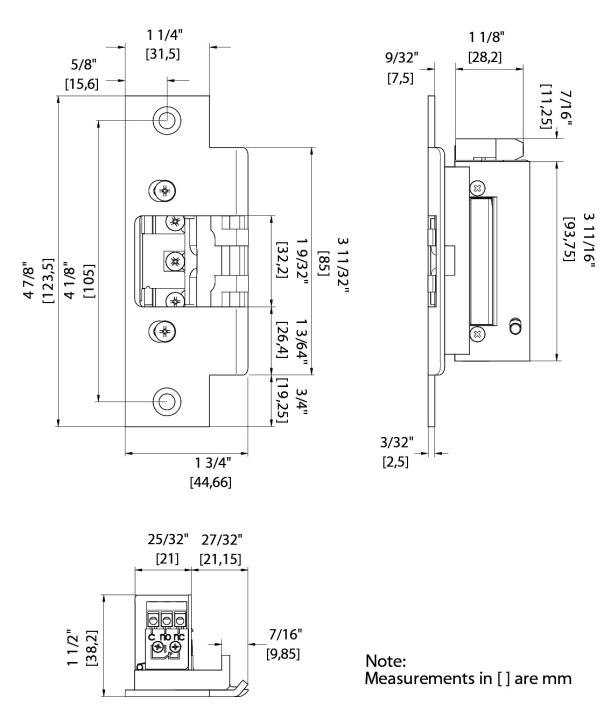

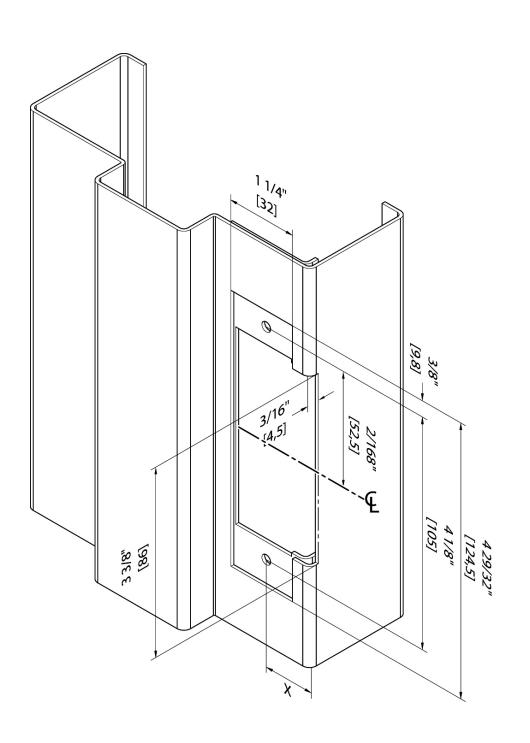

**Jamb*Preparation Dimensions**

Connection

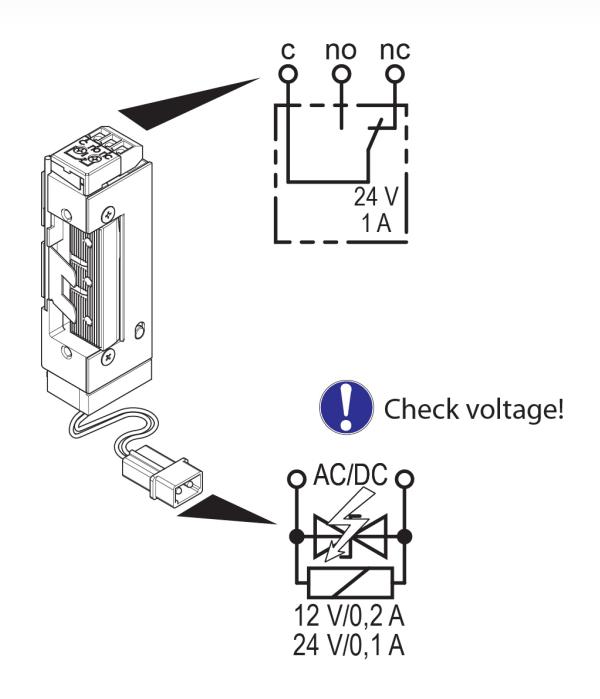

Latch Monitoring Output

Built-in latch monitoring feature wired to access control system.

Power Input

12/24V AC/DC

Using a multimeter, confirm that you have the correct output voltage at the power supply.

Using a multimeter, confirm that you have the correct input voltage at the strike.

+/- doesn't matter!

EZ-Fit Strike Installation

When installing an EZ-FIT electric strike, the things to be aware of are:

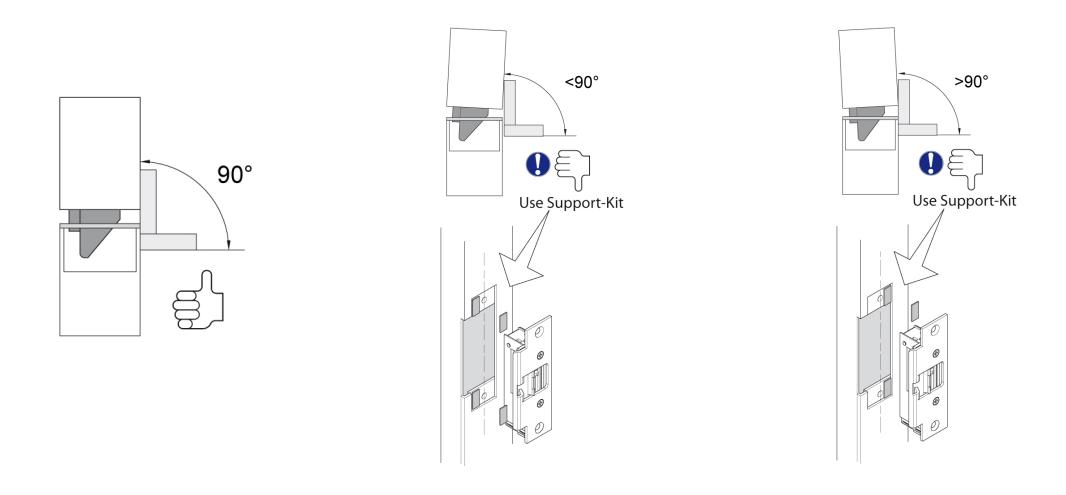

1) The edge of the door should be at a 90-degree angle of the strike plate, and parallel with the edge of the frame. If this is not the case, use the provided "support kit" to compensate as shown below

2) Adjust!the!faceplate!horizontally!to!keep!the!latch!snug!(not!tight)!behind!the! keeper,!with!the!dead8latch!pin!resting!on!top!of!the!keeper's!edge.

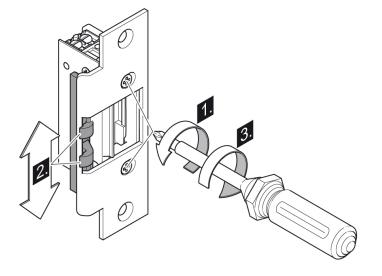

3) Adjust!the!ramp!plate!vertically!to!allow!the!dead8latch!pin!to!ride!in!the!gap! of!the!ramp!without!rubbing!or!binding!on!the!top!or!bottom!portion!of!the! ramp.!

4) Check!the!spring!latch!of!the!lock;!make!sure!it!is!operating!in!a!smooth!manner.! Check!the!dead8latch!pin!to!make!sure!it!retracts!and!springs!back!out!in!a! smooth!manner!as!well.!

5) If!you!find!the!spring!latch!"binding"!or!"sticking"!at!the!bottom!of!the!ramp,!you!may!have!to!file!or!grind!the!90! degree!edge!of!the!spring!latch *slightly !to!allow!the!latch!to!retract!smoothly!when!it!meets!the!bottom!of!the! ramp!

File/Grind!this!edge! slightly !to! remove!the!sharp!908degree!angle

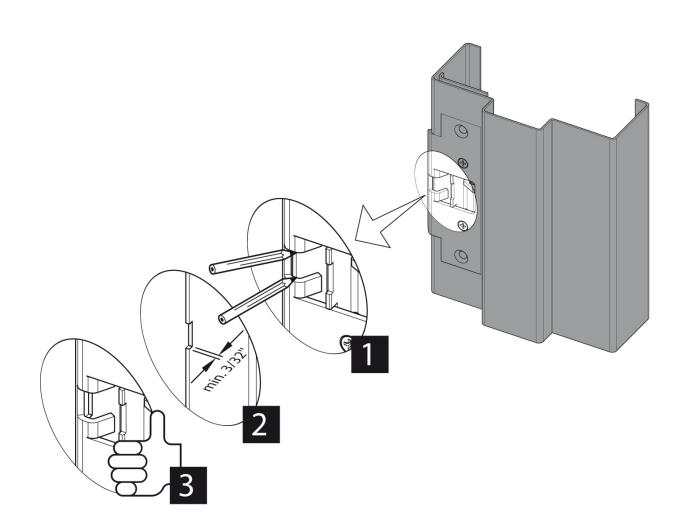

6) Check!the!gap!between!the!door!and!the!frame!(with!the!door!in!the!closed!position)!to!ensure!it!is!equal!from! top!to!bottom,!if!it!is!not!equal,!make!the!necessary!adjustments!to!correct!this!issue.!If!the!gap!is!equal,!and!is! greater!than!1/8"!please!ensure!you!"notch"!the!frame!as!shown!below.

7) ALWAYS*remember*to*check,*that*the*voltage*selector*is*set*to*the*correct*voltage*you*are*providing,*and* ALWAYS*check*the*voltage*from*your*power*supply*(while*under*load),*with*a*multiCmeter*to*make*sure*it*is* supplying*the*correct*voltage.
