CX-1013 U-Bracket Glass Door Mounting Kit for Magnetic Locks
Installation Instructions
Installing the CX-1013 U-Bracket
- 1. Place the steel bushing with rubber backing against the glass door as shown in Figure 1.
- 2. Use the 3 headless screws to clamp the U-Channel to the glass door.
- 3. Insert the aluminum bar and attach the armature plate (provided with the maglock). The aluminum bar can be adjusted to match the position of the maglock.
NOTE: Do not attach the mounting screw of the armature plate too firmly. Allow floating movement for maximum holding force.

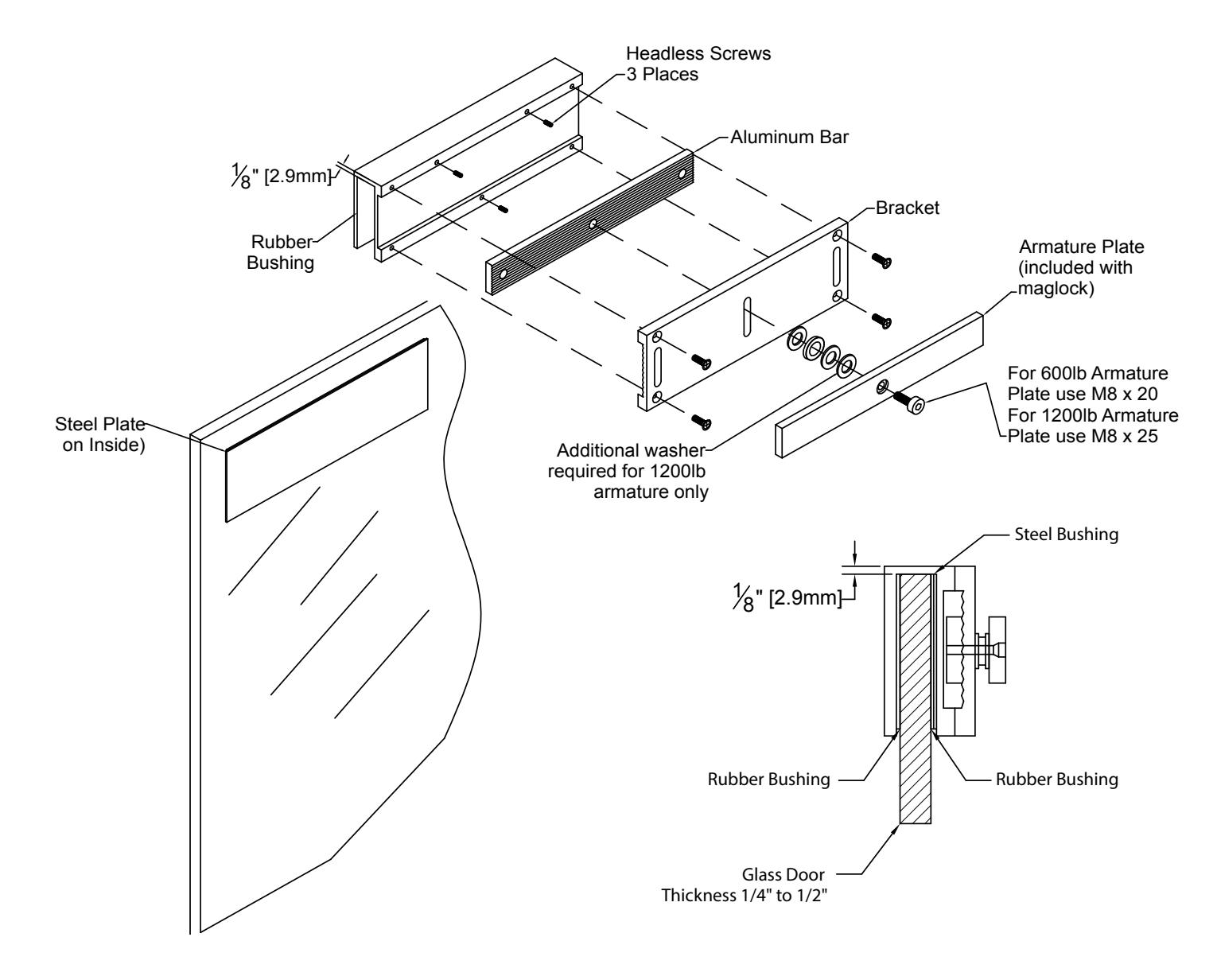

Figure 1 - Assembly Drawing

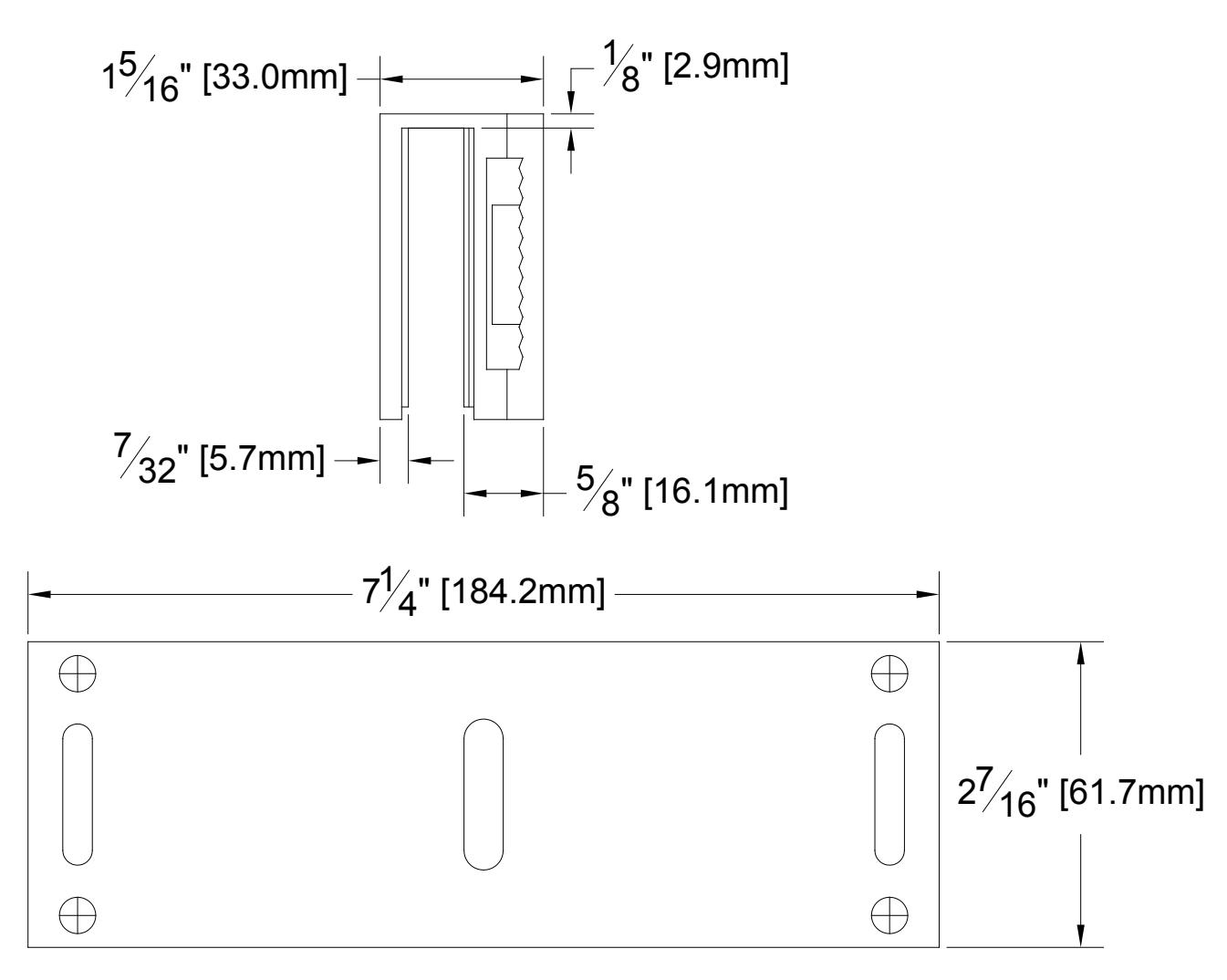

Figure 2 - Mechanical Dimensions
