CX-TRN, CX-TRX and CX-TRP Transformers and Rectifier Installation Instructions

Transformer Models

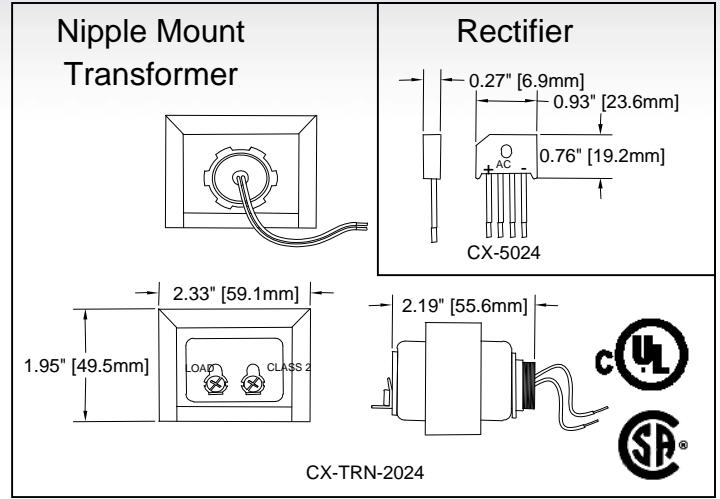

Model CX‐TRN‐2024	Description 24 VAC, 20 VA nipple mount transformer

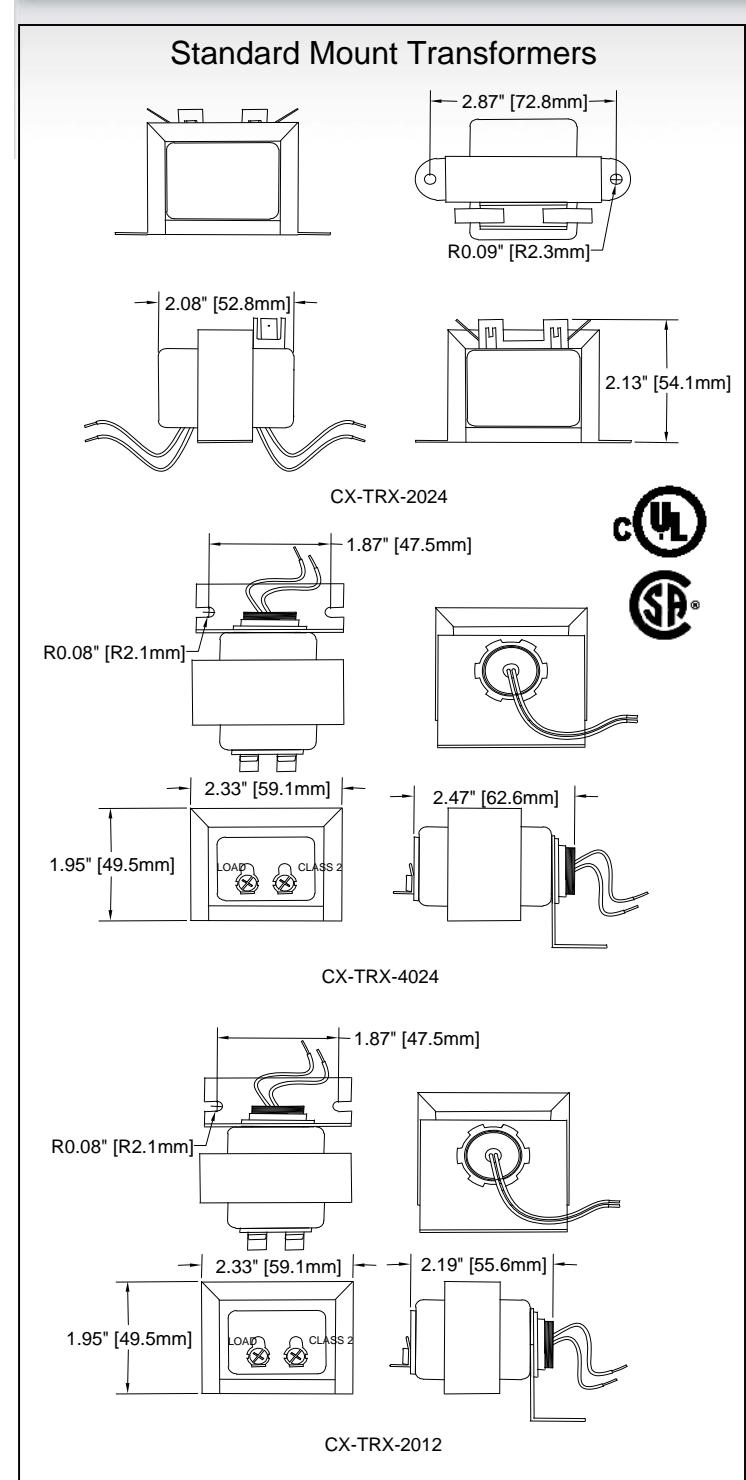

CX‐TRX‐2024	24 VAC, 20 VA fused, standard mount transformer
CX‐TRX‐2012 CX‐TRX‐4024	12 VAC, 20 VA standard mount transformer 24 VAC, 40 VA standard mount transformer

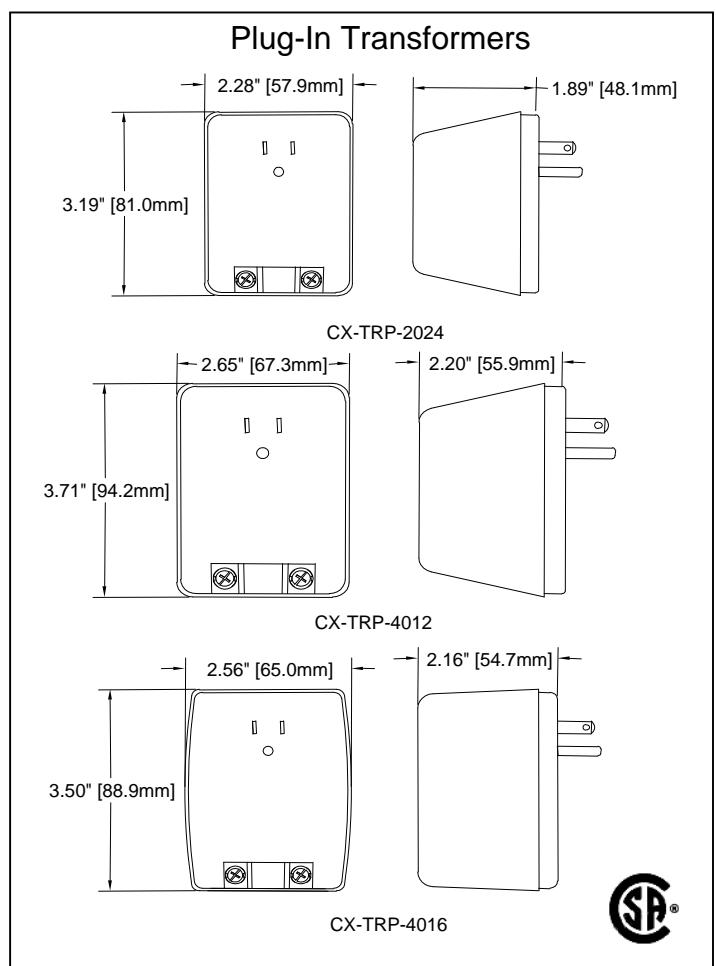

CX‐TRP‐2024 CX‐TRP‐4012 CX‐TRP‐4016	24 VAC, 20 VA plug‐in transformer 12 VAC, 40 VA plug‐in transformer 16 VAC, 40 VA plug‐in transformer
CX‐5024	Rectifier, (AC‐DC Converter) 50 VA

Wiring Instructions

• 1. Determine the size and type of transformer needed, from the chart above.
• 2. Connect the fuse holder to one of the leads of the transformer secondary insert fuse. (For CX-TRX-2024 only).
• 3. Connect the secondary leads to the load (i.e. motion detector, control panel or other device.
• 4. Once all of the secondary wiring is complete, connect the primary leads to the 115 VAC, 60 Hz.
• 5. Ensure transformer is securely fastened.

NOTE: For 50 Hz applications, please contact Camden Door Controls for special order transformers.

Precautions

• 1. Primary power must always be fused or protected by a Circuit Breaker.
• 2. Never place the transformer next to combustible materials.
• 3. Do not short secondary leads together or allow them to short to ground.

Transformers and Rectifier Installation Instructions

Key Pads

Strikes

Magnetic Locks

Key Switches

Relays & Timers

Access Control

5502 Timberlea Blvd., Mississauga, ON Canada L4W 2T7

www.camdencontrols.com Toll Free: 1.877.226.3369

File: CX-TR_Manual_NF_REV2..DOC Revised: May 20, 2010 Part No.: 40-82B003R
