MAGNETIC LOCK ACCESSORIES

DESCRIPTION

Camden offers a wide variety of mounting brackets and filler plates for CX Series magnetic locks. These accessories are able to support virtually any installation requirement, including mounting on glass doors.

BRACKETS

ADJUSTABLE 'L' BRACKETS:

For use where the door frame does not provide an adequate mounting surface

CX-1001

Compatible with: 1200Lbs. Magnet Dimensions: 10 1/2" x 3" 1 1/2" (267mm x 76mm x 38mm)

CX-1011

Compatible with: 600Lbs. Magnet Dimensions: 9 13/16" x 1 15/16" 1 1/8" (250mm x 49mm x 29mm)

SET OF 'L' & 'Z' BRACKETS:

For use on In-Swing Doors

CX-1002

Compatible with: 1200Lbs. Magnet Dimensions: 10 1/2" x 3" x 1 13/16" (267mm x 76mm x 46mm) 6 5/16" x 2 1/2" x 2 1/2"

(160mm x 64mm x 64mm)

CX-1012

Compatible with:

600Lbs. Magnet Dimensions: 9 13/16" x 1 13/16" x 1 1/8" (250mm x 46mm x 29mm) 6 3/16" x 2" x 2"

(160mm x 51mm x 51mm)

ANGLE BRACKET:

For use where the door frame does not provide an adequate mounting surface

CX-1003

Compatible with: 1200 and 600Lbs. Magnet

Dimensions: 10 1/2" x 1 1/2" x 1" (267mm x 38mm x 25mm)

ARMATURE HOUSING

CX-0001

Compatible with: 1200Lbs. Magnet Dimensions: 7 15/16" x 3" x 5/8"

(202mm x 76mm x 16mm)

CX-0011

Compatible with: 600Lbs. Magnet Dimensions: 7 15/16" x 2 3/16" 5/8" (202mm x 56mm x 16mm)

MOUNTING KITS

GLASS DOOR

MOUNTING KIT:

Use on 1/4"(6mm) - 1/2" (12mm) thick doors

CX-1013

Compatible with: 1200 and 600Lbs. Magnet,

Dimensions: 7 1/4" x 2 7/16" 1 1/4" (184mm x 62mm x 32mm)

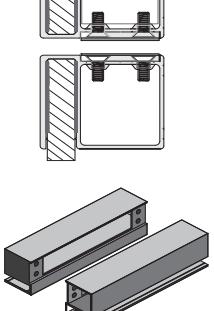

SHEAR LOCK BRACKET:

For surface and glass mounting of CX-93M-12LS Shear Lock

CX-1015

Compatible with: 1200Lbs. Shear Lock Dimensions: 7 3/8" x 2" x 1 11/16" (187mm x 50mm x 43mm)

SPACER BARS

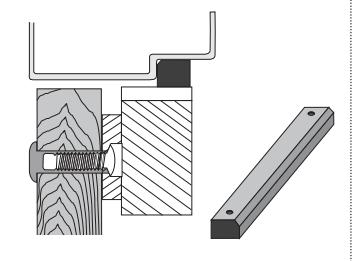

Allows the maglock to be moved vertically on the door frame

CX-AL004

Compatible with:

1200 and 600Lbs. models 5/8" (16mm) thick.

Dimensions:

10 1/2" x 11/16" x 5/8" (267mm x 17mm x 16mm)

CX-AL014

Description:

1200 and 600Lbs. models 1/2" (12.7mm) thick.

Dimensions:

10 1/2" x 11/16" x 1/2" (267mm x 17mm x 12.7mm)

CX-AL005

Compatible with:

600Lbs. Magnet, 3/8" (9.5mm) thick.

Dimensions:

9 7/8" x 1" x 3/16" (251mm x 25mm x 5mm)

CX-AL015

Compatible with:

1200Lbs. Magnet, 3/8" (9.5mm) thick

Dimensions:

10 1/2" x 1 9/16" x 1/4" (267mm x 40mm x 6mm)
