CX-PS10UL, CX-PS30UL, CX-PS60UL

POWER SUPPLIES

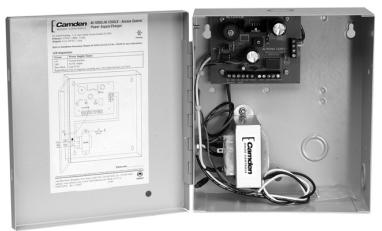

CX-PS10UL

• LATCHING FIRE ALARM TIE-IN WITH RESET
• DC OUTPUT AND CHARGER SUPERVISION
• DUAL OUTPUT AVAILABLE (12 OR 24V DC)
• RAPID BATTERY CHARGING

• SHORT CIRCUIT PROTECTION
• UL 294 LISTED
• AC POWER AND STATUS INDICATORS
• AC FAIL SUPERVISION
• METAL ENCLOSURE ACCOMMODATES 1 OR 2 BATTERIES

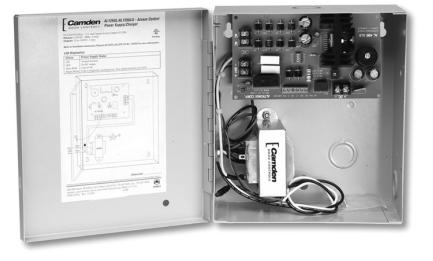

CX-PS30UL & CX-PS60UL

DESCRIPTION

Camden Door Controls CX-PS Series power supplies converts 115 VAC/60 Hz input to individually protected 12 or 24V DC outputs at 1.0, 2.5 Amps, or 6 Amps. The built-in battery charging circuits provide 400mA (CX-PS10UL), 600mA (CX-PS30UL) and 700mA (CX-PS60UL). The metal enclosures provide protection for the power supply and are large enough to accommodate 1 or 2 batteries.

UL LISTED CUL LISTED

APPLICATION

Camden Door Controls CX-PS Series power supplies are ideal for security alarm systems, access control systems, fire alarm systems, door controls, electromagnetic locks and many other applications.

12 ½" (19mm) (160mm) 11" (295mm) 11" (279mm) 11" (279mm)

CX-PS30UL & CX-PS60UL

SPECIFICATIONS

	CX-PS10UL	CX-PS30UL CX-PS60UL
OUTPUT:	1 AMP	2.5 AMP 6 AMP
INPUT:	115 VAC
VOLTAGE:	12/24 VDC OUTPUT
BATTERY CHARGER:	(400 MA)	(600 MA) (700 MA)
ENCLOSURE ACCOMMODATES:	ONE 12V DC/7 AH BATTERY OR TWO 12V DC/4 AH BATTERIES	TWO 12V DC/12 AH BATTERIES

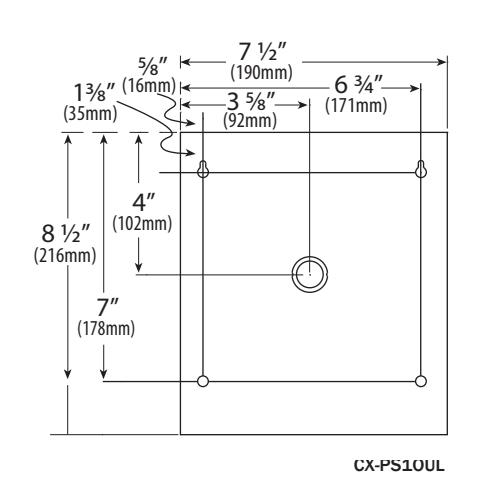

ENCLOSURE DIMENSIONS:	8 1/2"H x 7 1/2"W x 3 1/2"D (216mm x 190mm x 89mm)	13"H x 12 1/2"W x 3 1/4"D (330mm x 318mm x 83mm)

ORDERING INFORMATION

MODEL DESCRIPTION

CX-PS10UL: 1 AMP OUTPUT

UL 294, CSA, C22-2

METAL ENCLOSURE ACCOMMODATES BATTERIES

LATCHING FIRE ALARM TIE-IN WITH RESET

12 OR 24V DC SELECTABLE

AC POWER AND STATUS INDICATORS SHORT CIRCUIT AND TERMINAL PROTECTION

CX-PS30UL & CX-PS60UL: 2.5 AMP OUTPUT (CX-PS30UL), 6AMP OUTPUT (CX-P60UL)

UL 294, CSA, C22-2

MULTI-OUTPUT POWER SUPPLY FIRE ALARM & ACCESS CONTROL

LATCHING FIRE ALARM TIE-IN WITH RESET

TRIGGER CONNECTIONS

5 INDIVIDUAL CIRCUIT BREAKERS

PROTECTED OUTPUTS AC FAIL SUPERVISION

DC OUTPUT AND CHARGER SUPERVISON
