Camden CX-IRB Isolation Relay Spec Sheet
Open the original PDF document

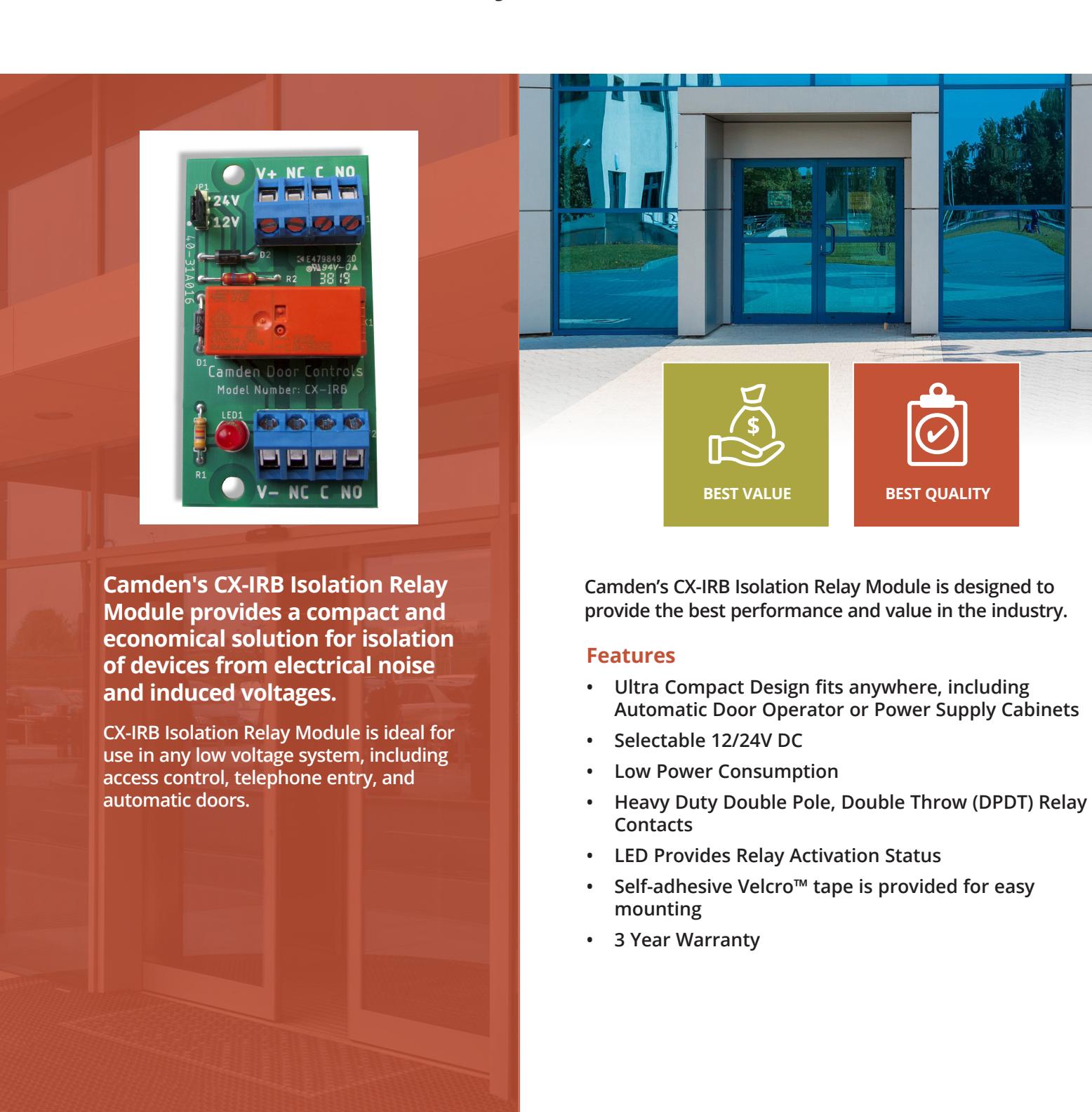

View PDFCX-IRB Isolation Relay
SPECIFICATIONS
VOLTAGE: 12/24V DC
CURRENT DRAW: 240mA @ 12V/24 VDC CONTACT RATING: 8 amps @ 30 VDC/120 VAC
CONTACT TYPE: DPDT
STATUS: Red LED (Activated when on) TEMPERATURE: -40°F to 158°F (-40°C to 70°C)

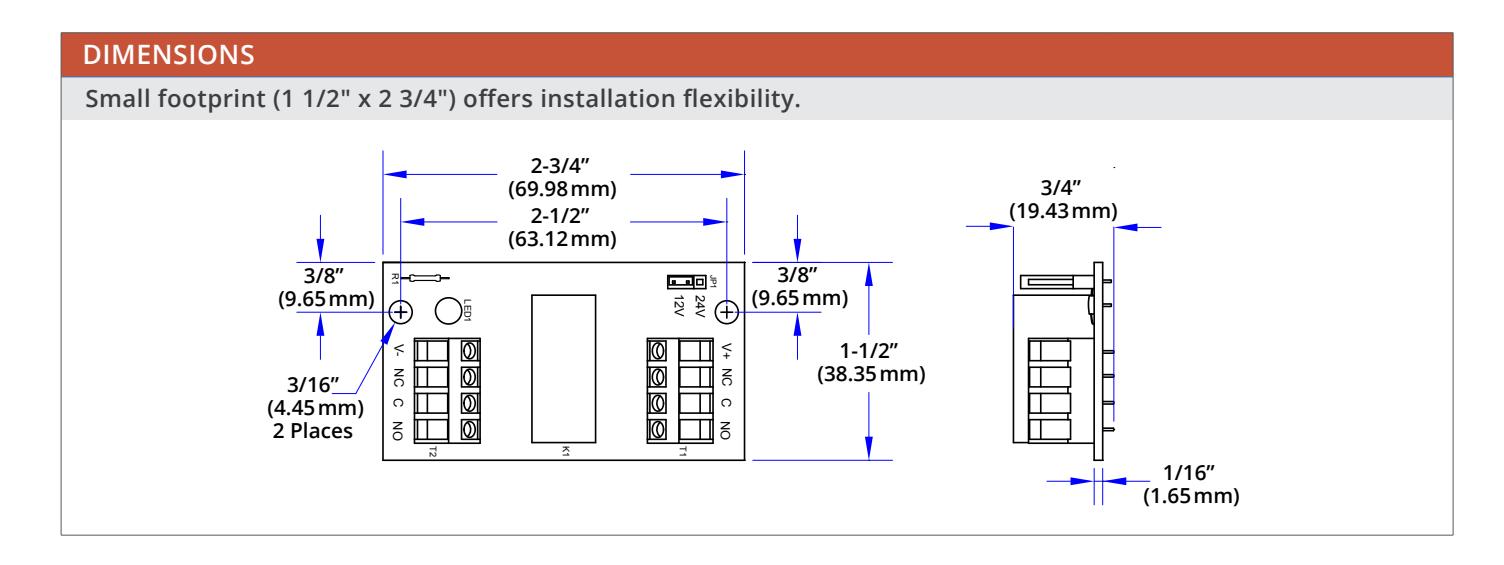

DIMENSIONS: 3/4" H x 1 1/2" W x 2 3/4" L (20mm x 38mm x 70mm)
CX-IRB Isolation Relay Module, 12/24V DC CX-IRB-6 Isolation Relay Module, Package of 6, 12/24V DC
