ELECTRIC STRIKES

* SECURITY UL 1034 UL 294

CX-ED2079 AND STAINLESS STEEL FACEPLATES

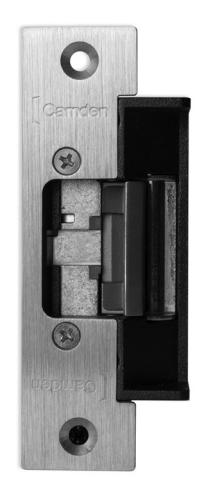

CX-ED2071/ED2079

'UNIVERSAL' LOW PROFILE GRADE 2 ELECTRIC STRIKES

FEATURES

• CENTERLINE LATCH ENTRY, FOR CYLINDRICAL LOCKSETS
• 1/2" 5/8" (13MM 16MM) LATCH PROJECTION
• FIELD SELECTABLE FAIL SAFE/FAIL SECURE OPEREATION
• HORIZONTAL ADJUSTABILITY OF STRIKE BODY
• LOW PROFILE STRIKE BODY

• CX-ED2079: 12/24V STRIKE C/W 3 STAINLESS STEEL FACEPLATES ANSI SQUARE, HOLLOW METAL DOOR AND WOOD DOOR
• CX-ED2079-1: 12/24V STRIKE C/W 1 STAINLESS STEEL FACEPLATE ANSI SQUARE
• CX-ED2071: 8V 16V STRIKE C/W 3 STAINLESS STEEL FACEPLATES ANSI SQUARE, HOLLOW METAL DOOR AND WOOD DOOR
• 5 YEAR WARRANTY

DESCRIPTION

Camden CX-ED2071 low profile grade 2 ANSI electric strike for cylindrical locksets provides exceptional value, for installations that require 8 - 16V AC/DC operation. CX-ED2071 includes 3 faceplates, selectable fail safe/fail secure operation and horizontal adjustment of the strike body.

Camden CX-ED2079 low profile 'Universal' grade 2 ANSI electric strike for cylindrical locksets provides exceptional value with 3 faceplates, and selectable 12/24V AC/DC voltage, fail safe/fail secure operation and horizontal adjustment of the strike body. UL 1034 Burglary Listed.

Camden CX-ED2079-1 Low profile 'Universal' grade 2 ANSI strike for cylindrical locksets, with (1) ANSI square faceplate, provides the best strike value.

APPLICATION

DOOR FRAME TYPES

COMPATIBLE LOCKSETS

CX-ED2071 & CX-ED2079 'UNIVERSAL' LOW PROFILE GRADE 2 ELECTRIC STRIKES

SPECIFICATIONS

VOLTAGE: CX-ED2071: 8 - 16V, AC/DC, CX-ED2079: 12/24V, AC/DC

CX-ED2071: 305MA@8VDC, 625MA@16VDC, 190MA@8VAC, 460MA@16VAC CURRENT DRAW:

CX-ED2079: 300MA @12VDC, 150MA@24VDC

STATIC STRENGTH: 1,000 LBS. 50 FT. LBS. DYNAMIC STRENGTH:

ENDURANCE: CX-ED2071 & CX-ED2079: 700,000 CYCLES

CX-ED2079: 250,000 CYCLES (UL VERIFIED)

SELECTABLE FAIL SAFE MODE:

FAIL SECURE

OPERATION: AC - BUZZ

DC- SILENT

CX-ED2071: INTERMITTENT, CX-ED2079: CONTINUOUS DUTY:

MOUNTING: NON-HANDED

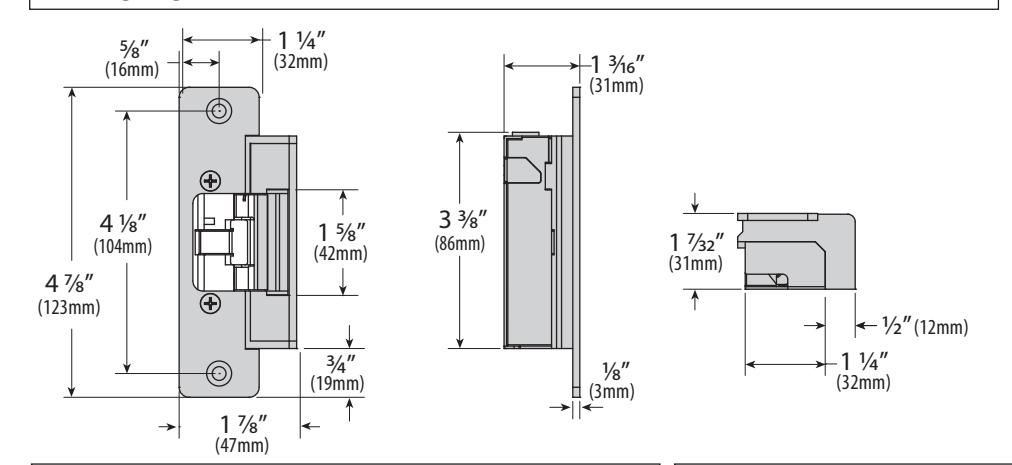

3 3/8" H x 1 7/8" W x 1 7/32" D DIMENSIONS:

(86mm x 47mm x 31mm)

ORDERING INFORMATION

CX-ED2071: 'UNIVERSAL' ELECTRIC STRIKE, 8 - 16V AC/DC, FAIL SAFE/FAIL SECURE OPERATION, HORIZONTAL ADJUSTMENT, C/W 3 STAINLESS STEEL FACEPLATES (CX-ESP1B, ESP3B & ESP4B)

CX-ED2079*: 'UNIVERSAL' ELECTRIC STRIKE, 12/24V AC/DC, FAIL SAFE/FAIL SECURE OPERATION, HORIZONTAL ADJUSTMENT, C/W 3 STAINLESS STEEL FACEPLATES (CX-ESP1B, ESP3B & ESP4B)

CX-ED2079-1*: 'UNIVERSAL' ELECTRIC STRIKE, 12/24V, AC/DC, FAIL SAFE/FAIL SECURE OPERATION, HORIZONTAL ADJUSTMENT, C/W 1 STAINLESS STEEL FACEPLATE (EX-ESP1B)

1 1/4"

(32mm)

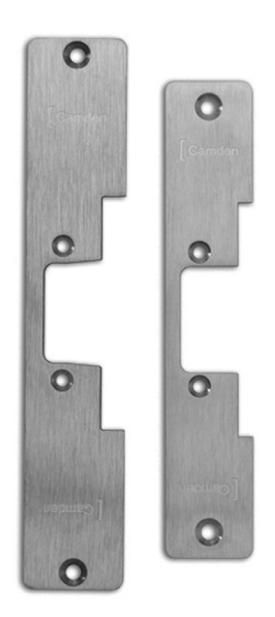

FACEPLATES

INCLUDED IN PACKAGE

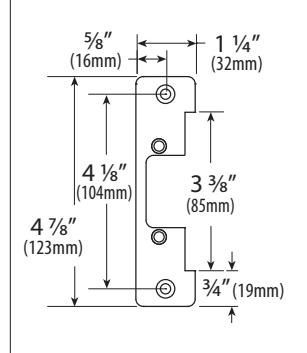

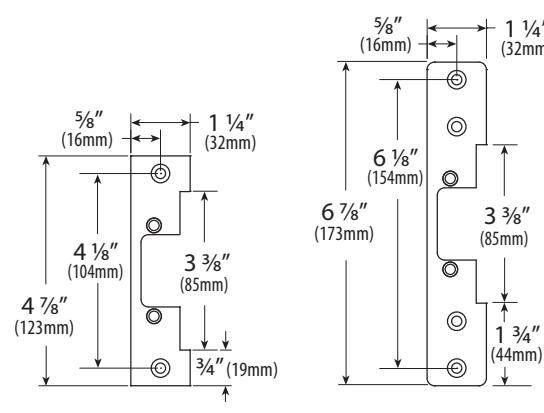

FSP3R - HOLLOW METAL DOOR 6 7/8" x 1 1/4" - STAINLESS STEEL

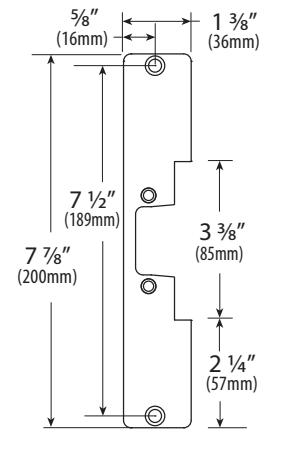

ESP4B - WOOD DOOR 7 7/8" x 1 3/8"

ADDITIONAL FACEPLATE

ESP2B - ANSI ROUND 4 7/8" x 1 1/4"

LIP EXTENSION BRACKETS

CX-ED-LIP1: 1" LIP EXTENSION FOR ANSI STRIKES (STACKABLE)

CX-ED-LIP2: 2" LIP EXTENSION FOR ANSI STRIKES

CX-JIG1

CX-FD-LIP1

CUTTING JIGS

FSP1R - ANSI SOLIARE

4 7/8" x 1 1/4"

CX-JIG1: JIG FOR INSTALLING ANSI ROUND FACEPLATES

CX-JIG2: JIG FOR HOLLOW METAL DOOR FACEPLATES
