UL 1034 UL 294

CX-ED1579L

'ALL IN ONE' FIRE RATED ELECTRIC STRIKE

CX-ED1579L AND STAINLESS STEEL FACEPLATES

FEATURES

• FOR MORTISE AND CYLINDRICAL LOCKSETS
• 3/4" (19MM) LATCH PROJECTION (THROW)
• SELECTABLE FAIL SAFE/FAIL SECURE OPERATION
• SELECTABLE 12/24V AC/DC

• LATCH MONITORING
• NON-HANDED, LH/LR
• EASY FIT CONNECTORS FOR POWER AND MONITORING WIRES
• STAINLESS STEEL STRIKE BODY
• 5 YEAR WARRANTY

DESCRIPTION

Camden CX-ED1579L Grade 1 electric strike for mortise and cylindrical locksets offers the very best strike quality and features, with the added value of built-in latch monitoring, five stainless steel faceplates and 'Universal' performance, including field selectable voltage and fail safe/fail secure operation.

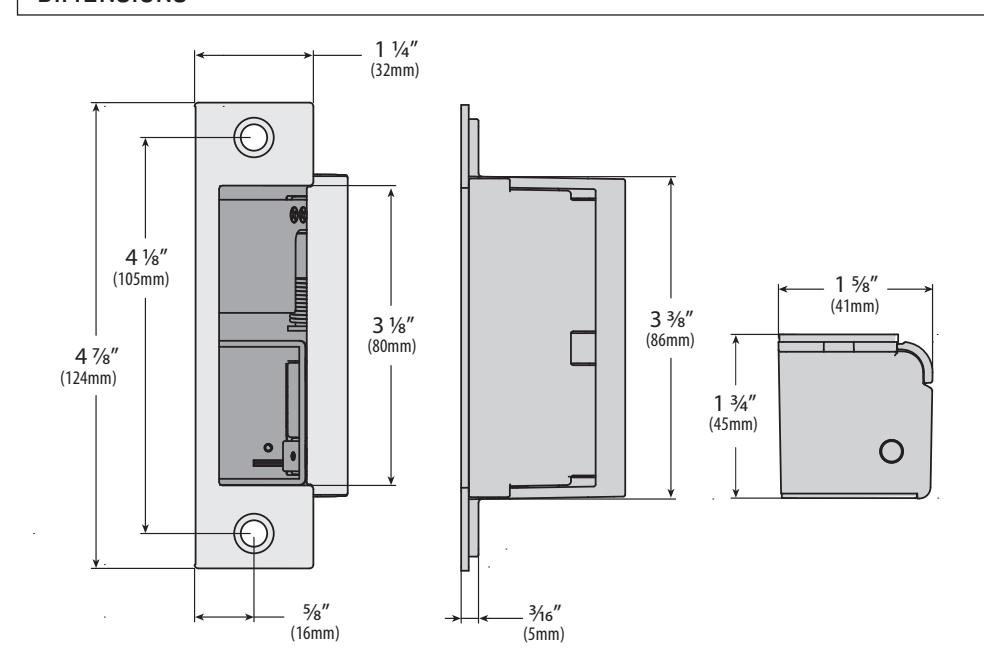

DIMENSIONS

DOOR FRAME TYPES

COMPATIBLE LOCKSETS

CX-ED1579L ELECTRIC STRIKES

SPECIFICATIONS
VOLTAGE:	12/24V AC/DC
CURRENT DRAW:	260MA @ 12V AC/DC, 150MA @ 24V AC/DC
STATIC FORCE:	1,500 LBS.
DYNAMIC FORCE:	70 FT-LBS.
MODE:	FAIL-SAFE/FAIL-SECURE, FIELD SELECTABLE
OPERATION:	AC - BUZZ, DC - SILENT
DUTY:	CONTINUOUS (DC)
MOUNTING:	NON-HANDED
ENDURANCE:	1,500,000 CYCLES (FACTORY TESTED) 250,000 CYCLES (UL VERIFIED)
FIRE RATING:	UL10C/CAN4-S104, 3 HRS. (FAIL SECURE ONLY)
LATCH BOLT MONITOR:	SPDT, 100MA @ 24V DC
DIMENSIONS:	BODY: 4 7/8"L x 1 1/4"W x 1 3/4"D (124mm x 32mm x 45mm)

ORDERING INFORMATION

GRADE 1 'ALL IN ONE' FIRE RATED STRIKE, 12/24V AC/DC, CX-ED1579L:

FOR MORTISE AND CYLINDRICAL LOCKSETS

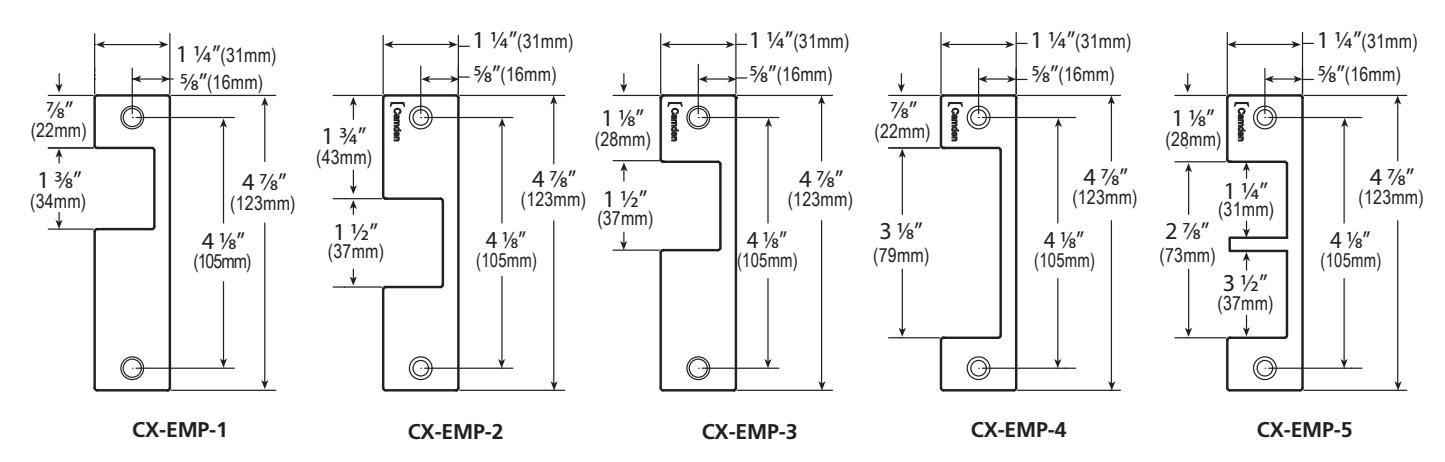

FACEPLATES

INCLUDED IN PACKAGE

MODEL	DESCRIPTION
CX-EMP-1	Stainless faceplate for Sargent, Schlage & Yale Mortise Locksets
CX-EMP-2	Stainless faceplate for Arrow, Corbin, & Best mortise locksets
CX-EMP-3	Stainless faceplate for centerline mortise or cylindrical locksets
CX-EMP-4	Stainless faceplate for mortise locksets with deadbolt
CX-EMP-5	Stainless faceplate all Mortise locks that include both latch & deadbolt

CUTTING JIGS

CX-JIG6: FOR CX-ED1579L STRIKE, ANSI FACE PLATE CX-EMP-3
