SECURITY UL 1034 UL 294 LISTED

CX-FD1410

CX-ED1410

'ANSI' GRADE 1 FIRE RATED ELECTRIC STRIKE

FEATURES

• CENTERLINE LATCH ENTRY. FOR CYLINDRICAL LOCKSETS
• UL 90 MINUTE FIRE AND UL1034 BURGLARY LISTED
• 3/4" (19 MM) LATCH PROJECTION
• DUAL VOLTAGE 12/24V AC/DC
• ANSI SQUARE FACEPLATE INCLUDED, 4 7/8" x 1 1/4" (124mm x 32mm)
• FIELD SELECTABLE FAIL SAFE/FAIL SECURE OPERATION
• NOTE: FIRE RATING APPLICABLE ONLY WHILE IN FAIL SECURE MODE
• TRIM PLATE INCLUDED
• 5 YEAR WARRANTY

DESCRIPTION

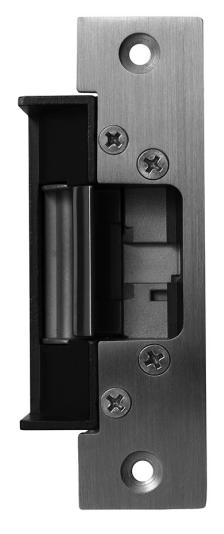

Camden CX-ED1410 Grade 1 ANSI fire strike for UL fire rated doors/frames with cylindrical locksets, offers the very best electric strike quality and performance. This 'ANSI' strike is designed to deliver unparalleled application flexibility, with field selectable voltage and fail safe/fail secure operation, over many years of trouble free service.

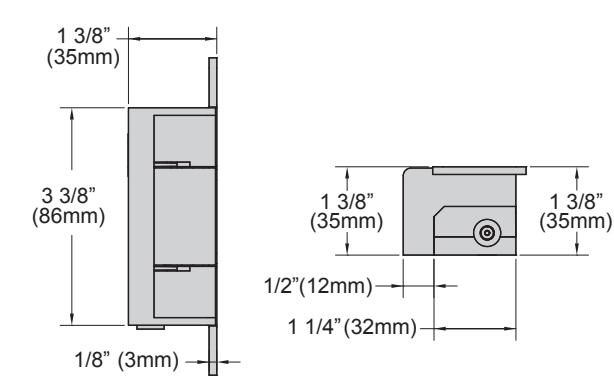

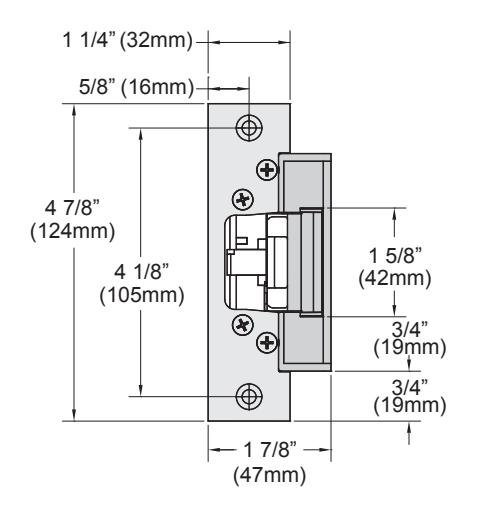

DIMENSIONS

DOOR FRAME TYPES COMPATIBLE LOCKSETS

SPECIFICATIONS

VOLTAGE: 12/24V AC/DC

CURRENT DRAW: 260MA@12V AC/DC

150MA@24V AC/DC

STATIC HOLD FORCE: 1,500 LBS. DYNAMIC STRENGTH: 70 FT-LBS.

ENDURANCE: 1,000,000 CYCLES (FACTORY TESTED)

250,000 CYCLES (UL VERIFIED)

FIRE RATING: 90 MINUTES (UL VERIFIED)

LATCH PROJECTION: 5/8" - 3/4" (16mm - 19mm)

MODE: FIELD SELECTABLE FAIL SAFE/FAIL SECURE

(FIRE RATED IN FAIL SECURE MODE ONLY)

OPERATION: AC – BUZZ, DC – SILENT

DUTY: CONTINUOUS

DIMENSIONS (BODY): 3 3/8"L x 1 7/8"W x 1 3/8"D

(86mm x 47mm x 35mm)

ORDERING INFORMATION

CX-ED1410: GRADE 1 'ANSI' FIRE ELECTRIC STRIKE, 12/24V AC/DC,

FAIL SAFE/FAIL SECURE OPERATION

CUTTING JIG

CX-JIG3: JIG FOR INSTALLING ANSI STRIKES WITH 3/4" LATCH

CX-JIG3
