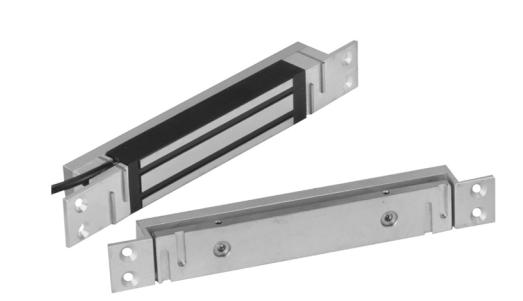

CX-93M-12LS Electromagnetic Shear Lock
Installation Instructions
This Package Includes:
#8 x 8" Self Tapping Screws
M5 x 8 Flatwashers
Specifications
|
Shear Holding
Force |
Up to 1200lbs. (545kg) | |
|---|---|---|
| Voltage Input | 12VDC / 24VDC | |
| Current Draw | 310mA / 180mA | |
|
Lock and
Armature Gap |
5/64" (2mm) | |
|
Operating
Temperature |
-4°F to 122°F
(-20°C to +50°C) |
|
|
Door Monitor
Contact Rating |
0.5A @ 28V DC | |
| Lock Dimensions |
7 1/4" L x 1 3/16" W x 1" D
(181mm x 30mm x 25mm) |
|
|
Armature
Dimensions |
7 1/4" L x 1 3/16" W x 3/4" D
(181mm x 30mm x 20mm) |
|
Important Notice:
- 1. Open pocket hole for armature plate in the door frame using the sticker template provided.
- 2. Attach the armature plate to the door with the hardware provided to right.
- 3. With the door closed, mark the door frame at the edge of the armature in order to properly align the electromagnet to the armature.
- 4. Mortise a hole in the door frame for the lock (7 1/4"L x 1 3/8"W x 1"D)
Basic Installation Concept & Accessories

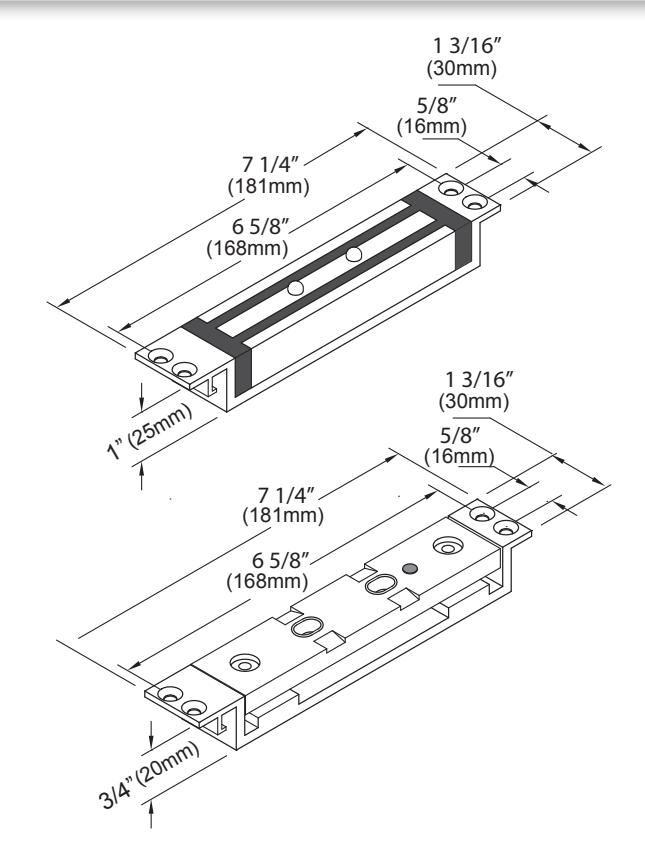

Electromagnetic Shear Lock Diagram
Assembled Armature Plate Horizontal Diagram
General Installation Steps and Maintainance:
- 1. Mark a center line on the door header frame, where the assembled armature is to be installed.
- 2. Cut and drill according to the size of the mounting bracket.

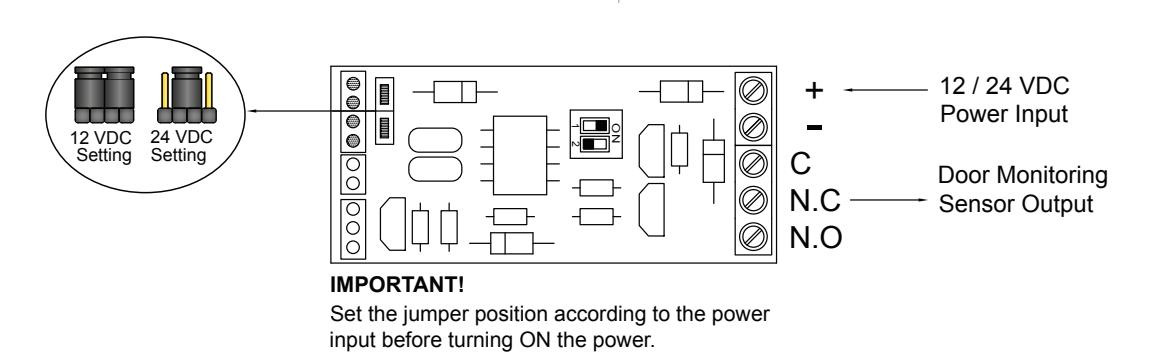

- 3. Connect wiring according to wiring instruction shown below; then mount the shear lock and assembled armature onto the door frame and door.

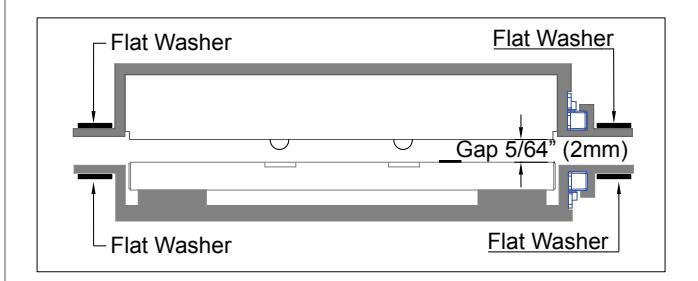

- 4. For a wider gap between the door & door frame, use steel flat washers to adjust the gap between lock and armature.
- 5. Connect the power wires according to the instructions and test the system.
- 6. It is recommended to apply a light coat of silicon lubricant to the mating surfaces on a monthly basis to prevent rust.
NOTE: Flat washers are only used to adjust armature magnet when the door frame has more than a 5/64" (2mm) gap.
| Time | SW1 | SW2 |
|---|---|---|
| 3 | ON | ON |
| 6 | ON | OFF |
| 9 | OFF | ON |
| 12 | OFF | OFF |
