MAGNETIC LOCKS

FEATURES

  • COMPATIBLE WITH ALL ACCESS/EGRESS SYSTEMS
  • ALUMINUM / STAINLESS CASINGS ARE WEATHER AND VANDAL RESISTANT
  • SELECTABLE 12V/24V DC OPERATION
  • ON BOARD MOV'S PROVIDE PROTECTION AGAINST VOLTAGE SPIKES AND SURGES
  • ASSORTED MOUNTING BRACKETS AND FILLER PLATES AVAILABLE

ITEM MODEL DESCRIPTION CURRENT DRAW DIMENSIONS
1200 LBS. SURFACE MOUNT CX-91S-12 Basic 500 mA @12V
250 mA @24V 		10 1/2" x 2 7/8" x 1 7/8"
(267mm x 73mm x 48mm)
SINGLE DOOR (I) LISTED CX-91S-12TDS c/w Adjustable Timer,
Lock Sensor, Door Status
Switch, Relay & LED
1200 LBS. SURFACE MOUNT DOUBLE DOORS CX-92S-12 Basic 2 x 500 mA @12V
2 x 250 mA @24V 		21" x 2 7/8" x 1 7/8"
(533mm x 73mm x 48mm)
CX-92S-12TDS c/w Adjustable Timer,
Lock Sensor, Door Status
Switch, Relay & LED
600 LBS. SURFACE MOUNT
SINGLE DOOR 		CX-91S-06 Basic 500 mA @12V
250 mA @24V 		9 7/8" x 1 7/8" x 1"
(251 mm x 48 mm x 25 mm)
ULISTED LISTED CX-91S-06TDS c/w Adjustable Timer,
Lock Sensor, Door Status
Switch, Relay & LED
600 LBS. SURFACE MOUNT DOUBLE DOORS CX-92S-06 Basic 2 x 500 mA @12V
2 x 250 mA @24V 		19 5/8" x 1 7/8" x 11/16"
(498mm x 48mm x 17mm)
ULISTED LISTED CX-92S-06TDS c/w Adjustable Timer,
Lock Sensor, Door Status
Switch, Relay & LED
600 LBS. MORTISE MOUNT
SINGLE DOOR 		CX-91M-06 Basic 480 mA @12V
240 mA @24V 		9" x 1 1/2" x 1 1/8"
(229mm x 38mm x 29mm
ULISTED LISTED CX-91M-06TLS c/w Adjustable Timer & Lock
Sensor/Relay
300 LBS. SURFACE MOUNT SINGLE DOOR CX-90S-03 Basic 360 mA @12V
180 mA @24V 		6 1/2" x 1 3/8" x 13/16"
(165mm x 35mm x 21mm)
300 LBS. MORTISE MOUNT SINGLE DOOR CX-90M-03 Basic 360 mA @12V
180 mA @24V 		8" x 1 3/8" x 13/16"
(203mm x 35mm x 21mm)
1200 LBS. SURFACE MOUNT GATE LOCK CX-94S-12LS c/w Lock Sensor/Relay 500 mA @12V
250 mA @24V 		8" x 2 1/2" x 1 5/8"
(203mm x 63.5mm x 41.5mm)
Self aligning Ultra low current draw Compact mortise mount CX-93M-26LS c/w Lock Sensor/Relay 480 mA @12V
240 mA @24V 		9 1/16" x 1 1/4" x 1 1/16"
(230mm x 32mm x 27mm)

MAGNETIC LOCK ACCESSORIES

ITEM MODEL DESCRIPTION DIMENSIONS
ARMATURE
HOUSING 		CX-0001 For 1200 lbs. Magnet 7 15/16" x 3" x 5/8"
(202mm x 76mm x 16mm)
CX-0011 For 600 lbs. Magnet 7 15/16" x 2 3/16" x 5/8"
(202mm x 56mm x 16mm)

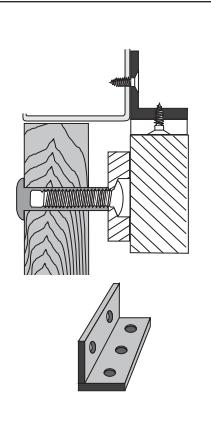

ADJUSTABLE L
BRACKET 		CX-1001 For 1200 lbs. Magnet 10 1/2" x 3" x 1 1/2"
(267mm x 76mm x 38mm)
CX-1011 For 600 lbs. Magnet 9 13/16" x 1 15/16" x 1 1/8"
(250mm x 49mm x 29mm)

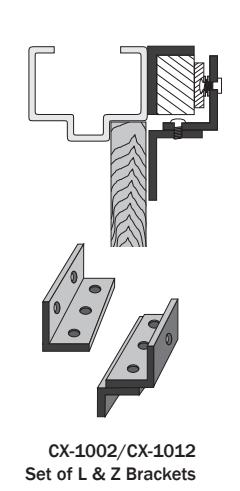

SET OF L & Z
BRACKETS 		CX-1002 For 1200 lbs. Magnet 10 1/2" x 3" x 1 13/16"
(267mm x 76mm x 46mm)
6 5/16" x 2 1/2" x 2 1/2"
(160mm x 64mm x 64mm)
CX-1012 For 600 lbs. Magnet 9 13/16" x 1 13/16" x 1 1/8"
(250mm x 46mm x 29mm)
6 3/16" x 2" x 2"
(160mm x 51mm x 51mm)
ANGLE
BRACKET 		CX-1003 For 1200 & 600 lbs. Mags 10 1/2" x 1 1/2" x 1"
(267mm x 38mm x 25mm)
STAINLESS STEEL
SURFACE
MOUNTING KIT 		CX-1008 For 2600 lbs. Shear Lock 9 1/4" x 1 5/8" x 1 1/2"
(235mm x 41mm x 38mm)
GLASS DOOR
MOUNTING KIT 		CX-1013 For 1200 and 600 lbs.
Mags, use on 1/4" - 1/2"
thick doors 		7 1/4" x 2 7/16" x 1 1/4"
(184mm x 62mm x 32mm)

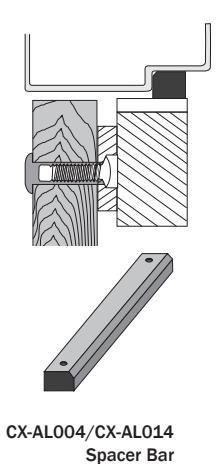

SPACER BAR CX-AL004 For 1200 and 600 lbs.,
5/8" (16mm) thick. Allows
the maglock to be moved
vertically on the door frame 		10 1/2" x 11/16" x 5/8"
(267mm x 17mm x 16mm)
SPACER BAR CX-AL014 For 1200 and 600 lbs., 1/2" (12.7mm) thick. Allows the maglock to be moved vertically on the door frame 10 1/2" x 11/16" x 1/2"
(267mm x 17mm x 12.7mm)
MOUNTING
BRACKET/SPACER 		CX-AL005 For 600 lbs. Mags 9 7/8" x 1" x 3/16"
(251mm x 25mm x 5mm)
MOUNTING
BRACKET/SPACER 		CX-AL015 For 1200 lbs. Mags 10 1/2" x 1 9/16" x 1/4"
(267mm x 40mm x 32mm)

CX-1013 Glass Door Mounting Kit
