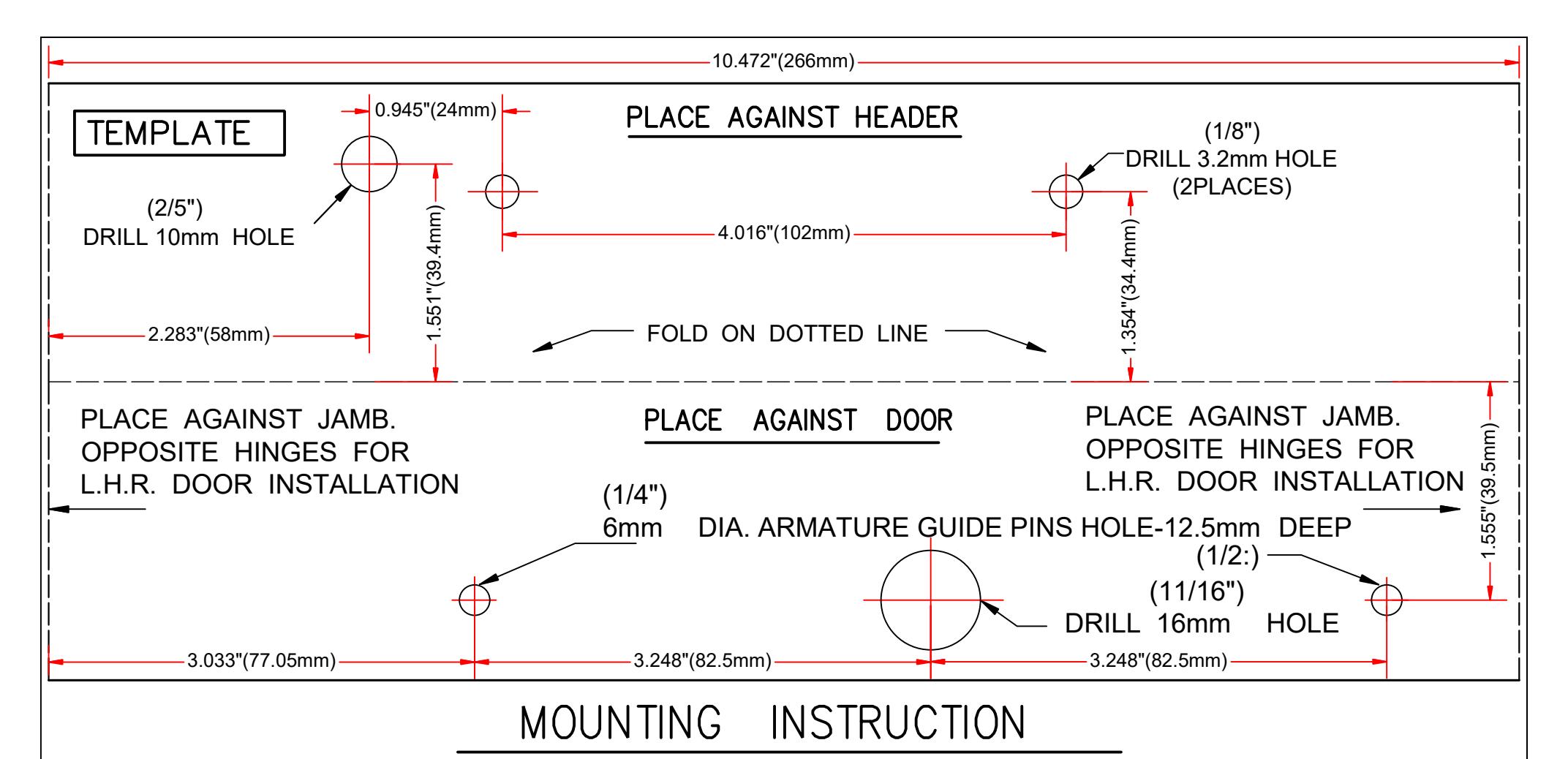

STEP1

• * FOLD TEMPLATE ALONG DOTTED LINE.
• * PLACE TEMPLATE AGAINST DOOR AND HEAD FRAME.
• * DRILL HOLES AS INDICATED ON TEMPLATE.

STFP2

* MOUNT THE ARMATURE PLACE TO THE DOOR USING 1 RUBBER WASHER SANDWICHED BETWEED 2 STEEL WASHERS(THE RUBBER WASHER AND 2 STEEL WASHERA ARE INSTALLEDON THE THROUGH SEX NUT BETWEED THE ARMATURE PLACE AND DOOR).

STEP3

• * DETACH MOUNTING PLATE TO DOOR USING 2 SOCKET CAP SCREWS.SCREWS COULD BE ACCESSED THROUGH BOTTOM OF MAGNET.
• * INSTALL THE MOUNTING PLACE WITH 2 FLAT HEAD SCREWS(THE 2 M5*15 FLATE HEAD SCREWS ARE INSTALLED IN THE SLOTTED HOLES FOR ADJUSTMENT)
• * ADJUST MOUNTING PLATE SO THAT IT AND THE ARMATURE PLATE TORM A RIGHT ANGLE
• * USING THE MOUNTING PLACE AS A TEMPLATE DRILL THE WIRE HOLE
• * DRILL AND INSTALL THE REMAING MOUNTING SCREWS

STEP4

* INSTALL MAGNET TO MOUNTING PLACE WITH 2 M6 SCREWS SUPPLIED.

STEP5

* INSTALL ELECTRICAL WIRING PER INSTRUCTION SHEET.

STEP6

* TEST ALL FUNCTIONS OF THIS MODEL (SEE WIRING INSTRUCTION).

STEP7

* INSERT 2 LOCKING STOPPER IN TWO END PLATES, AND COVER WITH 4mm SCREWS.

STEP8

* INSERT 2 ALUMINUM CAPS ON TWO SIDE M6 SCREW HOLES.

DWG.NO.10209/TP001-CAM
