MOUNTING INSTRUCTION

STFP1

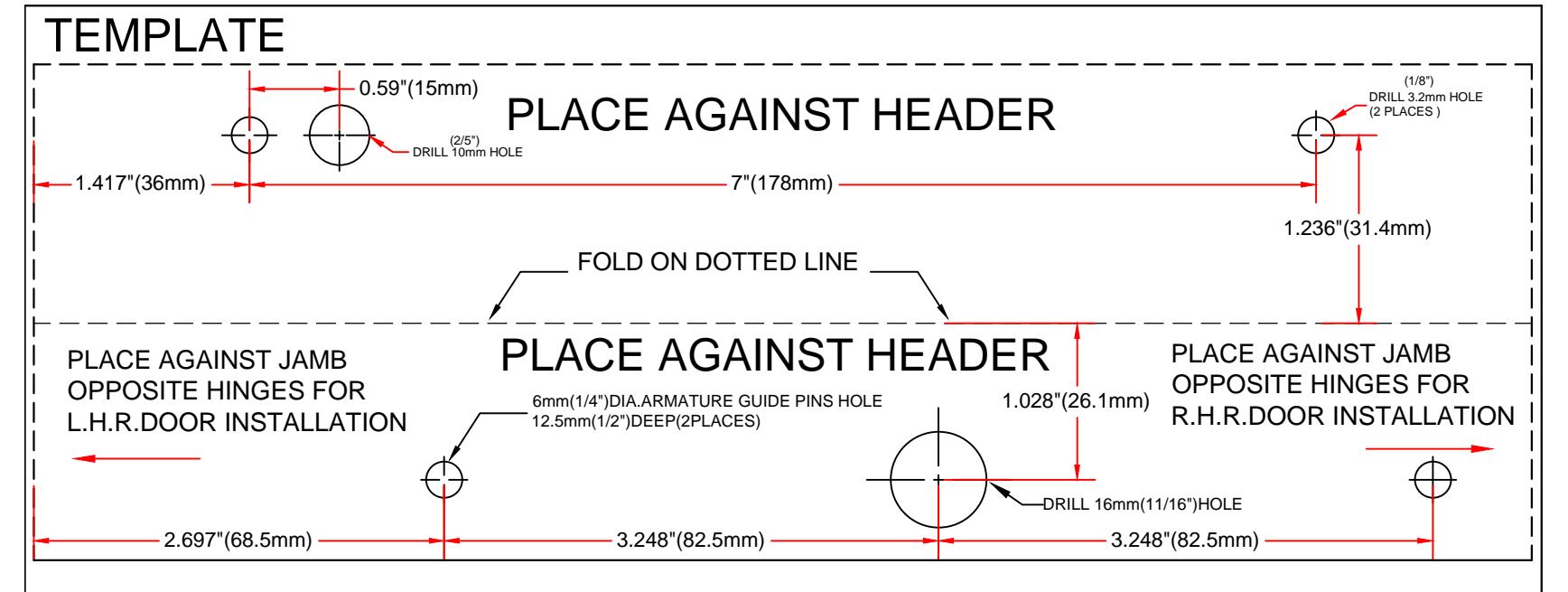

• FOLD TEMPLATE ALONG DOTTED LINE.
• PLACE TEMPLATE AGAINST DOOR AND HEAD FRAME.
• DRILL HOLES AS INDICATED ON TEMPLATE .

STEP2

• MOUNT THE ARMATURE PLATE TO THE DOOR USING 1 RUBBER WASHER SANDWICHED BETWEEN 2 STEEL WASHERS(THE RUBBER WASHER AND 2 STEEL) WASHERS ARE INSTALLEDON THE THROUGH SEX NUT BETWEEN THE ARMATURE PLATE AND DOOR.

STEP3

• DETACH MOUNTING PLATE FROM MAGNET BY REMOVING 2 SOCKET CAP SCREWS.SCREWS COULD BE ACCESSED THROUGH BOTTOM OF MAGNET.
• INSTALL THE MOUNTING PLATE WITH 2 FLAT HEAD SCREWS(THE 2 M5*15 FLAT HEAD SCREWS ARE INSTALLED IN THE SLOTTED HOLES FOR ADJUSTMENT).
• ADJUST MOUNTING PLATE SO THAT IT FORMS A RIGHT ANGLE WITH THE ARMATURE PLATE.
• USING THE MOUNTING PLATE AS A TEMPLATE, DRILL THE WIRE HOLE.
• DRILL AND INSTALL THE REMAINING MOUNTING SCREWS.

STEP4

●INSTALL MAGNET TO MOUNTING PLATE WITH 2 M4 SCREWS SUPPLIED.

STEP5

●INSTALL ELECTRICAL WIRING PER INSTRUCTION SHEET.

STEP6

●TEST ALL FUNCTIONS OF THIS MODEL (SEE WIRING INSTRUCTION).

STEP7

●INSERT 2 ALUMINUM CAPS TO COVER THE TWO M4 SCREW HOLES.
