CX-1085M Pneumatic Timer (for Push Buttons) Installation Instructions

	Section 1

General Description

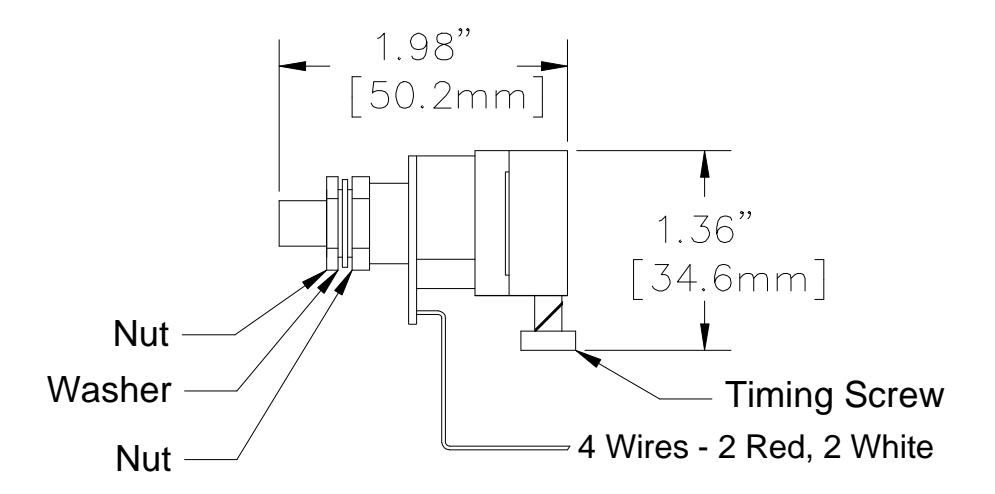

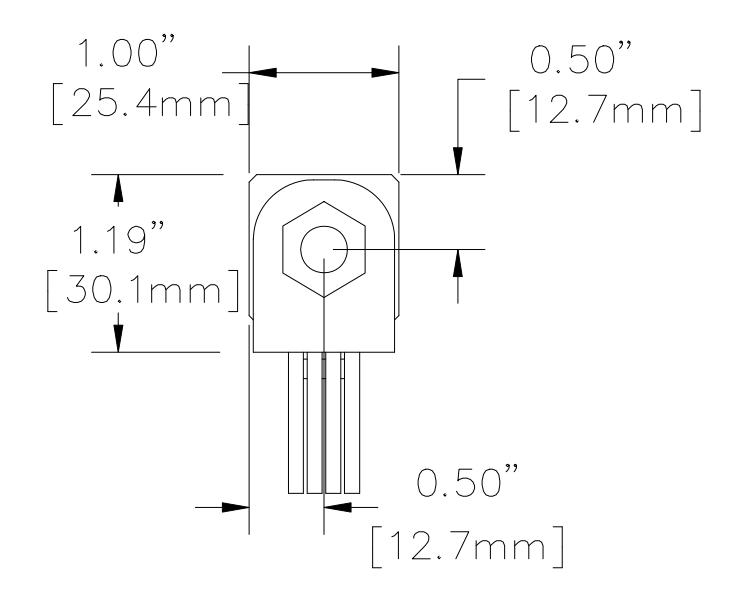

The pneumatic time delay requires no power to operate.

The timing range is 1 – 60 seconds, and is easily adjusted by a thumbscrew. It is ideal for use to deactivate magnetic locks in an emergency and where building codes mandate non-electronic means of egress, or where power is not available for a conventional timer.

This Camden CX-1085M Pneumatic Timer is integrated into the CM-4085/4185/5085/7085/7185 and CM-8085/8185 Push Buttons.

For the CM-1200/2200/3200/3500, and CM-1000/1100/2000 series Key Switches, use the pneumatic timer for key switches (CX-1085).

Section 2__________________

Installation

Mounting

1. The pneumatic timer will already be mounted to the switch, therefore follow the specific mounting instructions for your type of switch.
2. While the timer is not fragile, care must be given to allow sufficient clearance around the contacts, wiring, and particularly around the adjustment screw.
3. To adjust the timing, turn the screw clockwise to increase time, and counter-clockwise to reduce time. Test the timing several times before securing switch to wall or box.

Wiring

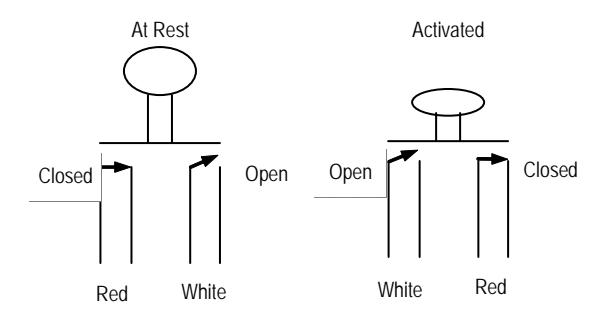

Momentary: The DPST contacts are rated 5 amps at 24 VDC. White wires are the normally open circuit, and the Red pair are normally closed.

It is possible to make a SPDT circuit as follows: Tie one Red & one White wire together. This will become the Common. The remaining White wire is the N.O. wire, and the remaining Red wire is the N.C. wire.
