CX-1000/75 MiniMinder Time Delay

INSTALLATION INSTRUCTIONS

1. FEATURES

• · Adjustable delay from 1-120 seconds (Potentiometer)
• · Turn clock-wise to increase time; counter clock-wise to decrease time
• Relay: SPDT 3 amp at 24 VDC
• · Operating Voltage: 12/24 VDC
• · Current: Idle 10mA, Operation 40mA
• · Mounting: Supplied with double-sided foam tape

2. DESCRIPTION

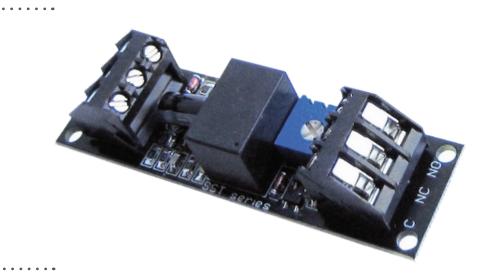

Camden's CX-1000/75 is a flexible and easy to operate 'delay on release' circuit board timer. The delay time is adjustable from 1 to 15 seconds via a simple potentiometer.

3. SPECIFICATIONS

Input Voltage	12-24V DC
Consumption	Idle	1mA @ 12 VDC, 3mA @ 24 VDC
	In Operation	18mA @ 12 VDC, 20mA @ 24 VDC
Relay Output	SPDT, 1 amp. @ 30 VDC contact
Set Time	Adjustable from 1 to 120 seconds
Indicators	LED
Accuracy	+/- 2%
Mounting	Double-sided foam tape
Dimension	3/4" W x 2-11/16" L x 13/16" H (19mm x 68mm x 21mm)

4. APPLICATIONS

N/O Switch

Normally de-energized Electric Strike O (Fail Secure) 12/24 VDC N/O Switch Fail Safe Application Normally energized Electro Magnetic Lock (Fail Safe) 12/24 VDC NO

Fail Secure Application

- 0.6" (15.4mm) 2.5" (63.5mm)

Drilling Template

NC
