STAND-ALONE PROXIMITY ACCESS CONTROL SYSTEM
CV-601 CONTROLLER
FEATURES
- UP TO 999 USERS
- JAMB-MOUNT AWID/HID FORMAT PROXIMITY READER
- VANDAL AND WATER RESISTANT READER (IP 67)
- READER AND CONTROLLER MAY BE UP TO 200 FT (70 METRES) APART
- OPERATES WITH PROX CARDS OR FOBS (EITHER HID OR AWID CREDENTIALS)
- REQUEST-TO-EXIT INPUT (N/O)
- NO SOFTWARE OR HANDHELD PROGRAMMERS NEEDED
- BI-COLOR LED AND SOUNDER
- DOOR OPEN TIME 1-180 SECONDS OR LATCHING
- PROGRAMMING PASSWORD (OPTIONAL USE)
- FORM C (N/O + N/C) RELAY, 5 AMPS
- 12V AC/DC OPERATION
- PRESENCE INPUT (PARKING, MANTRAP APPLICATIONS
- ADDITIONAL READER MAY BE ADDED FOR IN/OUT TRAFFIC CONTROL OR PROGRAMMING EASE
CV-601 AWID/HID FORMAT READER
DESCRIPTION
CV-601 MPROX is a stand-alone proximity reader system, designed for use in industrial and commercial applications. MPROX provides excellent security and functionality, and is easy to program and install.
MPROX consists of two parts: a vandal and weather resistant mullion-mount proximity reader, and a small programmer/controller, which is installed on the secure side inside the facility. The system has a capacity of 999 users. Cards/fobs can be individually or batch enrolled/deleted. All programming is done through the controller and reader - there is no need for computers or software to enroll or delete cardholders.
STAND-ALONE PROXIMITY ACCESS CONTROL SYSTEM
| MODEL | DESCRIPTION | |||
|---|---|---|---|---|
| CV-601: | MPROX CONTROLLER WITH MULLION PROX READER | |||
| READERS & CARDS | ||||
| CV-7400: | AWID/HID FORMAT READER ONLY FOR CV-601 | |||
| COMPATIBLE PROX. CARDS & KEY TAGS | ||||
| CV-CSA: | AWID FORMAT PROX CARDS, CLAM SHELL STYLE, PACKAGE OF 10 | |||
| CV-CSA-B: | AWID FORMAT PROX CARDS, CLAM SHELL STYLE, BOX OF 100 | |||
| CV-ISA: | AWID FORMAT ISO PROX CARD, PACKAGE OF 10 | |||
| CV-ISA-B: | AWID FORMAT ISO PROX CARD, BOX OF 100 | |||
| CV-KTA: | AWID FORMAT PROX KEY TAG, PACKAGE OF 25 | |||
| CV-CSH: | HID FORMAT CLAM SHELL PROX. CARD, PACKAGE OF 10 | |||
| CV-CSH-B: | HID FORMAT CLAM SHELL PROX. CARD, BOX OF 100 | |||
| CV-ISH: | HID FORMAT ISO PROX. CARD, PACKAGE OF 10 | |||
| CV-ISH-B: | HID FORMAT ISO PROX. CARD, BOX OF 100 | |||
| CV-KTH: | HID FORMAT PROX.TAG, PACKAGE OF 25 | |||
Note:
HID format Prox Cards or Fobs must be used with CV-600 MPROX controller and reader systems, and may be used with CV-601.
CV-601 MPROX controller and reader systems use AWID or HID format cards and Fobs.
TECHNICAL SPECIFICATIONS
| USERS: | 999 | ||
|---|---|---|---|
| READ RANGE: | UP TO 5" (127MM) | ||
| POWER SUPPLY: | 12V AC/DC | ||
| INPUTS: | 1 DATA INPUT WITH WIEGAND PROTOCOL | ||
| RELAY OUTPUT: | 1 FORM 'C' (SPDT) | ||
| RELAY CONTACT: | CAPACITY 5 AMPS @ 30V DC | ||
| REQUEST-TO-EXIT: | N/O MOMENTARY | ||
| OPERATION: |
RELAY OPERATING MODE TIMED FROM 1 TO 180
SECONDS, OR MAINTAINED (LATCHING) |
||
| PROGRAMMING: |
4 BUTTONS (YELLOW, RED, BLUE, GREEN) AND
3 DIGIT DISPLAY |
||
| DIMENSIONS: |

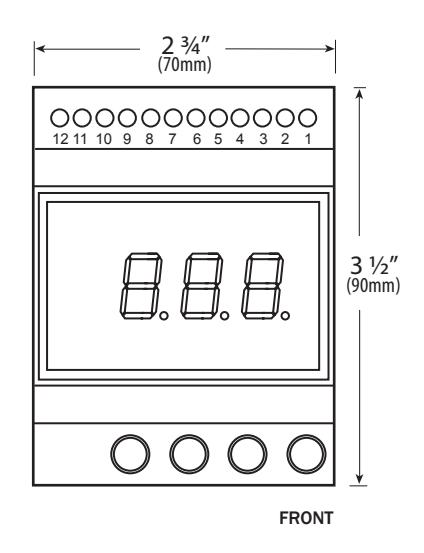

CONTROLLER:
3 1/2" H x 2 3/4" W x 2 1/4" D (90mm x 70mm x 57mm) |
||
|
CV-7400 READER: 4 1/2" H x 1 3/4" W x 3/4" D
(114mm x 45mm x 19mm ) |
|||
| 1 | NOT USED | READER |
| 2 | RELAY CONTACT: N.C. |
COLOR CODE
CHART |
| 3 | RELAY CONTACT: COMMON | |
| 4 | RELAY CONTACT: N.O. | |
| 5 | RELAY ENABLING | |
| 6 | RELAY FORCED ACTIVATION | |
| 7 | GROUND | BLACK |
| 8 | WIEGAND DATA INPUT (DATA 1) | WHITE |
| 9 | WIEGAND DATA INPUT (DATA 0) | GREEN |
| 10 |
OUTPUT FOR READER POWER
SUPPLY (9V DC) |
RED |
| 11 | ||
| 12 | POWER SUPPLY (12V AC/DC) |
