Camden CM-AF141SO Single Gang LED Dome Light with Sounder Installation Instructions

Open the original PDF document

CM-AF141SO Single Gang LED Dome Light, with Sounder

Installation Instructions

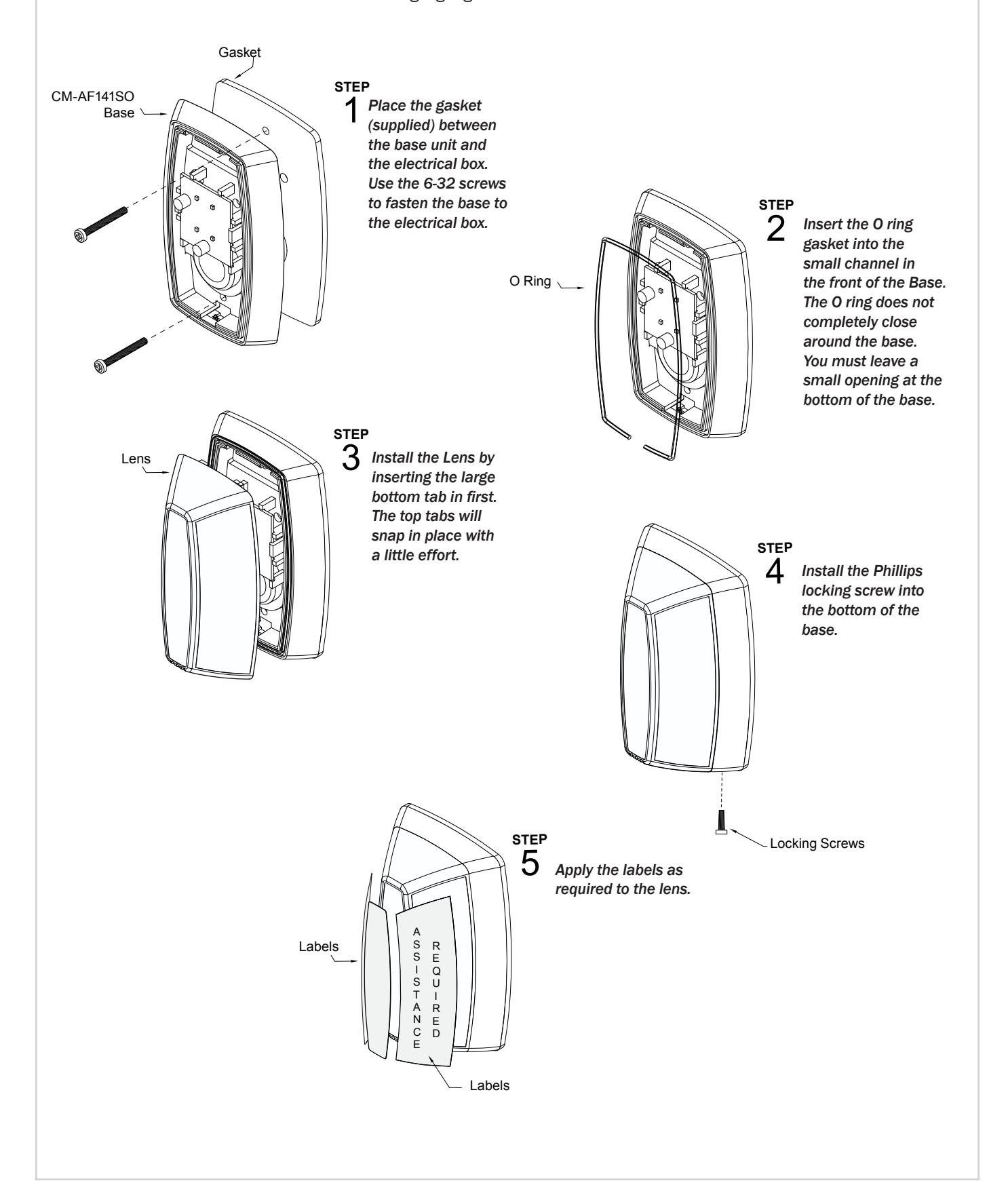

PACKAGE CONTENTS

1	Foam Gasket
1	O Ring
1	Set of Labels
1	LED Base
1	Lens
1	2-28 x 5/16" Phillips locking screw
2	Concrete wall plugs
2	3/16" drywall plugs
2	Wire nuts
2	#6 x 3/4" self-tapping screws
2	6-32 x 3/4" screws

CM-AF141SO

Description

Camden CM-AF141SO Corridor Lamp provides both visual and audible annunciation. It mounts to a standard single gang electrical box. The Superbright LED's along with the wedged shaped lamp cover provides visible illumination from either end of a corridor. The integrated piezo buzzer with adjustable volume provides up to 93 dB at 1 metre (3 feet).

Specifications

Voltage: 12 – 24V AC/DC Illumination: Superbright LED's

Sounder: Piezo, 93 dB @ 1 metre (3 feet)

Current Rating: 70 mA Max

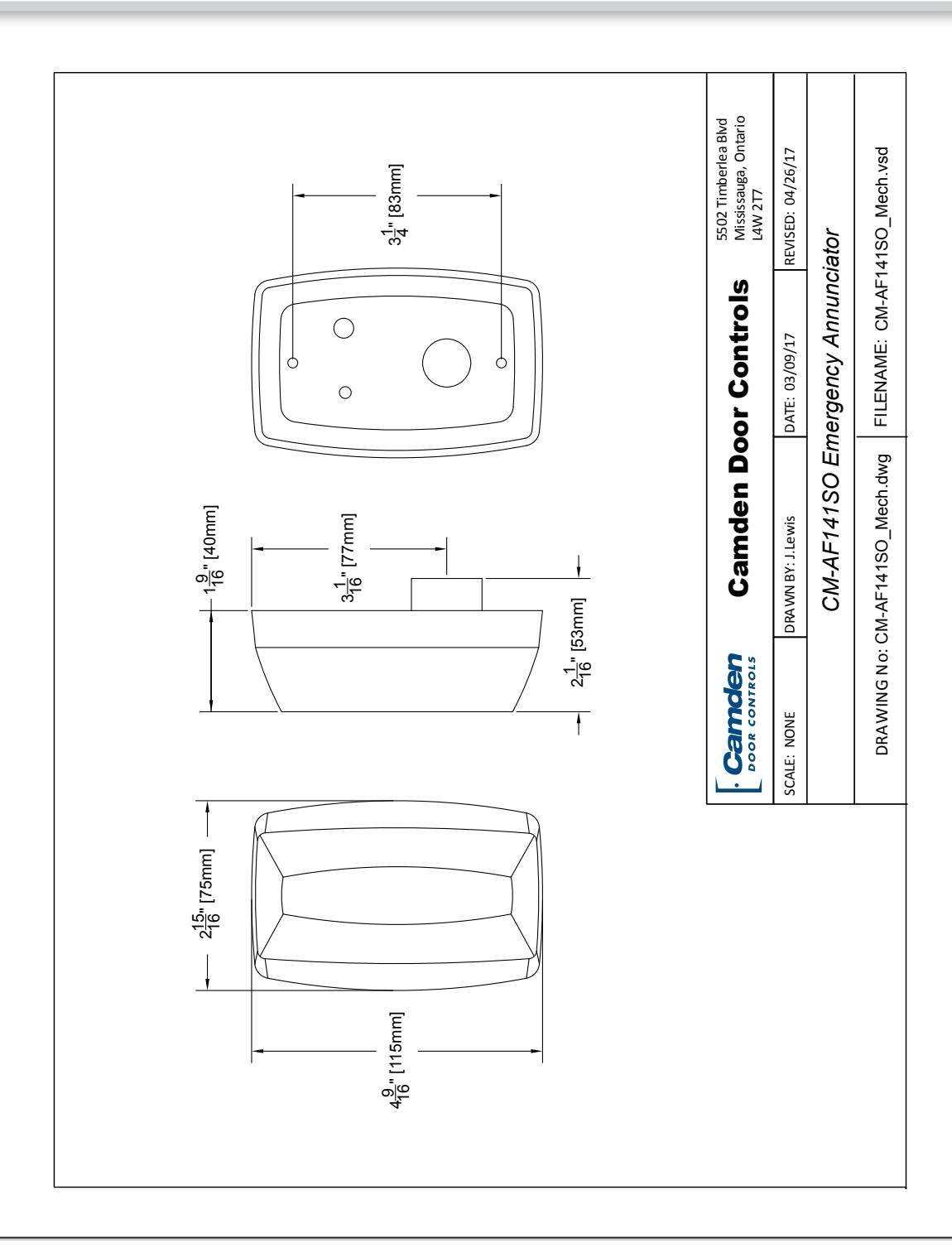

Dimensions: 4-9/16" x 2-15/16" (115mm x 75mm)

Wiring

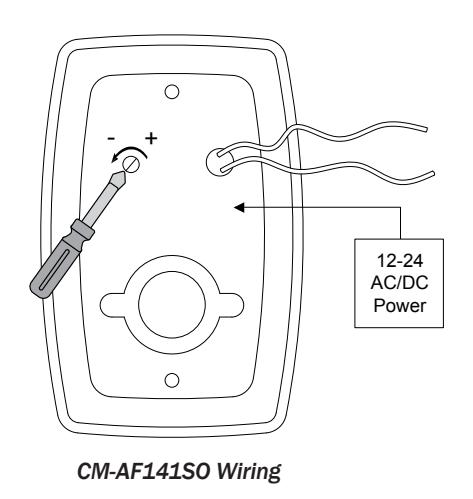

Camden CM-AF141SO Corridor Lamp is easily wired using the 2 non-polarized leads supplied. The 2 black leads can be connected to either an AC or DC power source supplying 12 or 24V.
