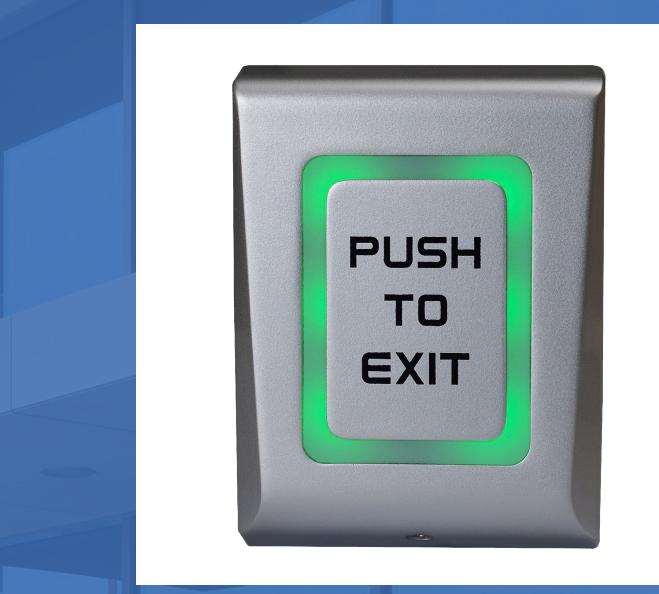

CM-9800 Series Surface Mount LED Illuminated Push/Exit Switches

Camden Door Controls CM-9800 Series surface mount capacitive touch switches, with LED illumination, are vandal and weather resistant with an IP 66 rating. The units feature a cast metal design and an adjustable 0 - 60 second relay timer.

The CM-9800 has an external input, so that the switch illumination may be activated by either the switch status or the door (locked) status.

The large surface area of the capacitive switch is easy to activate, with only a light touch, and the large LED illumination enables the switch to be highly visible in all lighting conditions.

Features

Capacitive Touch Technology
APA and ROHS Compliant
Weather and Vandal Resistant
Large LED Light Ring, Red/Green/Orange/None
Switch or Door Status Illumination (External Input)
'Hold Open' Relay Timer, Selectable 0-60 seconds
Heavy Duty 2 Amp Contacts, Form 'C'
Tamper Alarm, Selectable On/Off
12-24V AC/DC

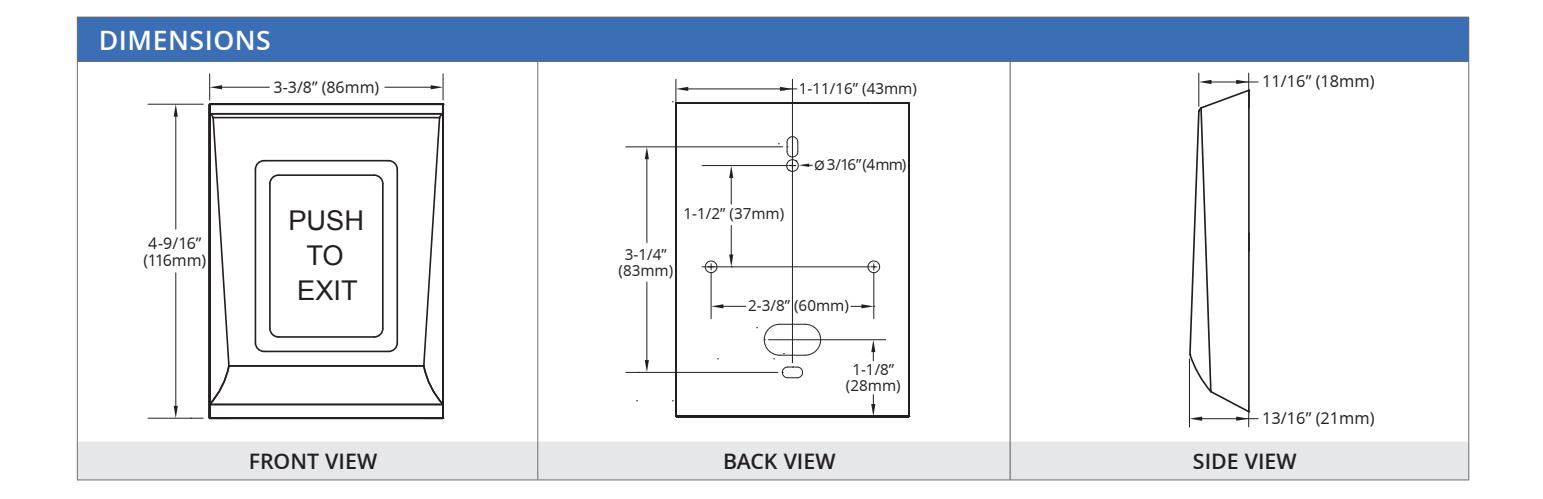

Product Specification Sheets

Applications

CM-9800 series illuminated capacitive touch switches are designed for use where high visibility and vandal resistance is required.

They are ideal for use as 'Request to Exit' switches in access control applications, as well as for activation of automatic door operators, where permitted by building code.

CM-9800 series switches may also be used for other door control or equipment switching applications.

Architect / Engineer Specifications

'Push to Exit' or 'Push to Open' switches used throughout the site, or complex shall be model CM-9800/7 or CM-9800/3 surface mount illuminated switches with capacitive touch activation, LED illumination, and built-in 0 to 60 second relay timer.

The illuminated capacitive touch 'Push to Exit' switches shall be all metal design, with high viability, weather and vandal resistance LED illumination shall be selectable red, green or orange and controlled by the switch activation or remote input, including door lock status. The units shall also offer 12-24V AC/DC operation and Form 'C' contacts (NO or NC) rated 2 Amps @ 24 VDC.
