Camden CM-9600C Remote LED Control Wiring Diagram
Open the original PDF document
View PDF

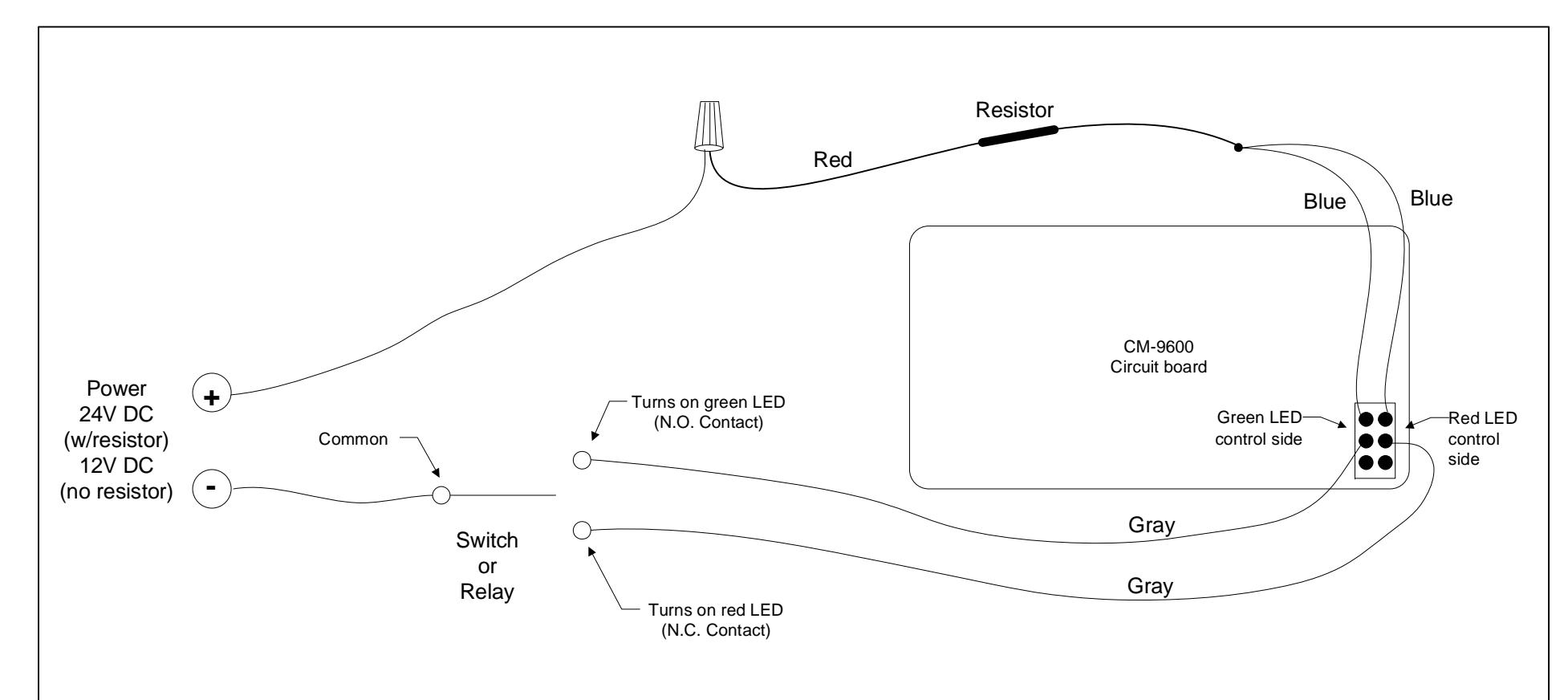

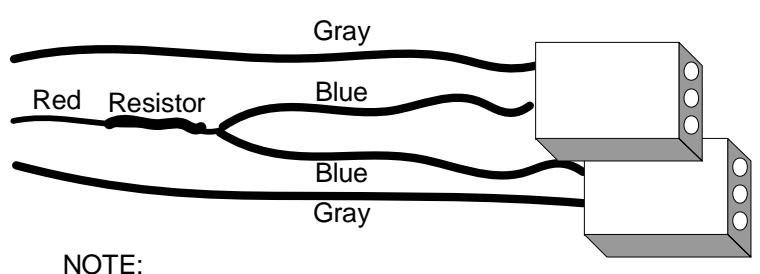

In this version the two Blue wires are tied together with a voltage dropping resistor, and terminated in a Red wire.
If powering from 24V DC, leave resistor in place If powering from 12V DC, cut off resistor only. Slide onto the pins side-by-side with the blank empty pins towards the bottom edge.
| Camden Door Controls 5502 Timberlea Blvd. Mississauga, Ontario L4W 2T7 | |||
|---|---|---|---|
| SCALE: NONE | DRAWN BY: DGW | DATE: 09/21/10 | REVISED: 08/10/12 |
| CM-9600/C V2 - 12/24V Harness Wiring Diagram | |||
| Part No: 40-82B136 | FILENAME: CM-9600C Wiring harness | ||
