ROHS COMPLIANT

CM-9280

CM-9380

CM-9280/CM-9380

VANDAL RESISTANT PIEZO SWITCHES

FEATURES

• TESTED TO 50 MILLION CYCLES
• ALL METAL CONSTRUCTION
• ALUMINUM BUTTONS
• NON-MOVING, ONE-PIECE DESIGN FOR LONG LIFE AND TO GUARD AGAINST VANDALISM
• HEAVY DUTY STAINLESS STEEL FACEPLATES
• INDOOR/OUTDOOR APPLICATIONS
• SOLID STATE OUTPUT, N/O, 200MA. @ 40VDC (EXTERNAL RELAY TYPICALLY REQUIRED FOR CONNECTION TO ELECTRIC LOCKING DEVICES).
• AVAILABLE IN JAMB WIDTH AND SINGLE GANG WIDTH
• AVAILABLE WITH RED OR GREEN BUTTONS
• LIFETIME WARRANTY

DESCRIPTION

Camden Door Controls CM-9280 / CM-9380 Series Vandal Resistant Switches are heavy duty push buttons which feature a patented one-piece, non-moving design, virtually impervious to attack or compromise. Buttons are 1" (25 mm) diameter in either red or green. A stainless steel faceplate and security screws accompany every switch. Options include having 'EXIT' or a wheelchair logo silk screened on the faceplate.

APPLICATION

CM-9280 and CM-9380 Series switches may be connected directly to 'low load' devices such as automatic door operators, power supply switch inputs or access control system. Not recommended for direct connection to 'high load' devices such as electric strikes and magnetic locks. For these applications, an external relay or timer is required.

ARCHITECTS / ENGINEERS SPECIFICATIONS

All push button switches to be used throughout the site/complex shall be vandal resistant. Switches shall incorporate a non-moving, one-piece design. Switches shall be manufactured out of aluminum. Faceplates shall be heavy duty 14 AWG stainless steel and secured using Torx or Snake eye security screws. The button shall be easy to activate with a diameter no less than 1". The switch assembly shall be designed to be jamb mounted or single gang box mounted.

SPECIFICATIONS

MECHANICAL

OPERATING TEMP: - 40F TO +180F

- 40C TO + 82C

WEATHERPROOF

RATING: IP68

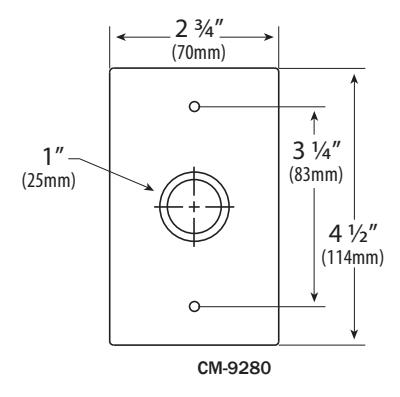

DIMENSIONS: SINGLE GANG: 4 1/2"H x 2 3/4"W x 5/8"D

(114mm x 70mm x 16mm)

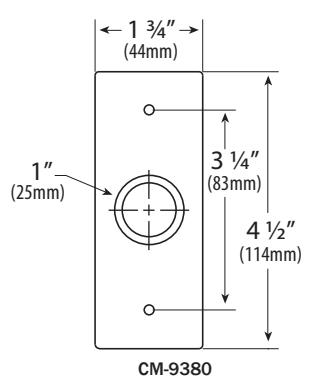

NARROW JAMB: 4 1/2"H x 1 3/4"W x 5/8"D

(114mm x 44mm x 16mm)

ELECTRICAL

VOLTAGE RATING: 0 - 40V DC

CURRENT RATING: 200 MA TYPICAL

400 MA MAXIMUM

CONTACT CLOSURE: 1/4 SECOND

RESISTANCE: 'ON': LESS THAN 50 OHMS

'OFF': GREATER THAN 5 MEG OHMS

SWITCH LIFE: GREATER THAN 20 MILLION OPERATIONS

CM-9280/9380/9480/9580

To "High Load" Locking Device

Connect one wire from your power supply to the switch. The other wire connects to one side of the relay coil then to the switch.

ORDERING INFORMATION

MODEL DESCRIPTION

SINGLE GANG FACEPLATE - 2 3/4" (70 MM)

CM-9280R RED 'PUSH BUTTON' SWITCH, 1" (25 MM) BUTTON, MOMENTARY, N/O CM-9280G GREEN 'PUSH BUTTON' SWITCH, 1" (25 MM) BUTTON, MOMENTARY, N/O

JAMB WIDTH FACEPLATE - 1 3/4" (44 MM)

CM-9380R RED PUSH 'BUTTON' SWITCH, 1" (25 MM) BUTTON, MOMENTARY, N/O CM-9380G GREEN 'PUSH BUTTON' SWITCH, 1" (25 MM) BUTTON, MOMENTARY, N/O

RELAY STRIKE OR MAG LOCK POWER SUPPLY (13mm) ½" (45mm) 1 ¾"

To "Low Load" Device or System

FOR FACEPLATE GRAPHICS, ADD:

(ADD SUFFIX TO ANY 'BLANK' MODEL)

/3 'PUSH TO OPEN'

/3F 'POUSSEZ POUR OUVRIR'

/3S 'EMPUJE PARA ABRIR'

/7 'PUSH EXIT'

/7F 'POUSSEZ POUR SORTIR'

/8 'PUSH TO LOCK'

/E 'EXIT'

FOR BUTTON COLOR, ADD:

(ADD SUFFIX TO ANY MODEL. IF NOT SELECTED, RED WILL BE SUPPLIED)

'R' RED BUTTON 'G' GREEN BUTTON
