CM-700 Series Pull Stations
Installation Instructions
Reset

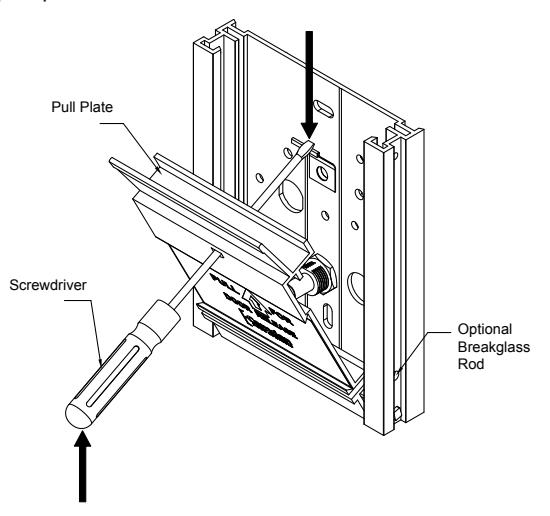

- 1. Insert Screwdriver or Rod through the hole on the pull plate as per the diagram below
- 2. Press down Screwdriver or Rod against retaining clasp and push the pull plate in to reset.

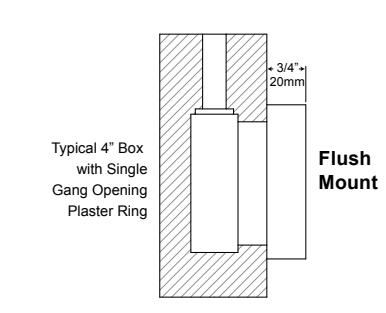

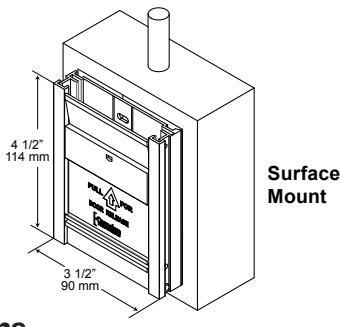

Mounting Options

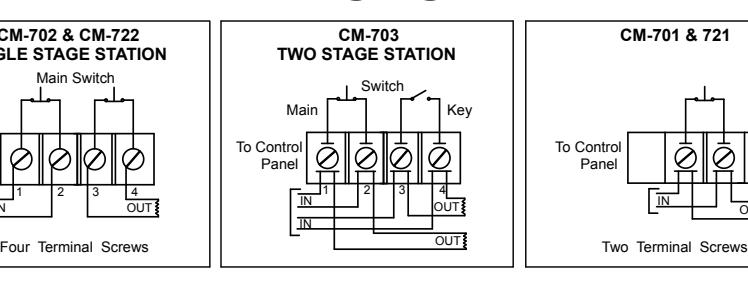

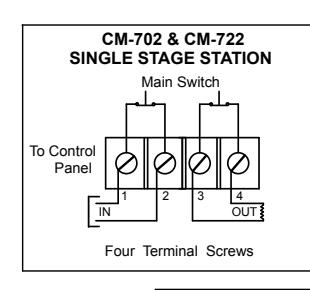

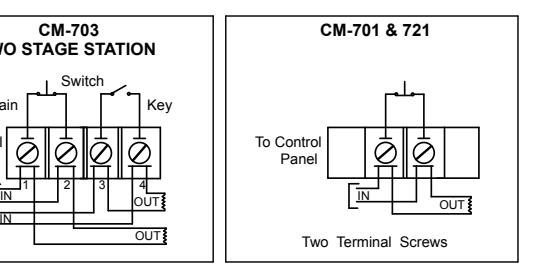

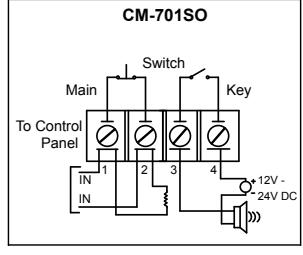

Wiring Diagrams
5502 Timberlea Blvd., Mississauga, ON Canada L4W 2T7
File: CM-700Series Manual. indd Rev1 Revised: 03/16/2018 Part No: 40-82B222
