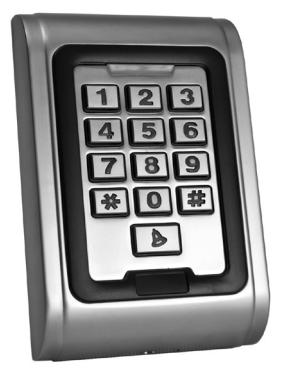

CM-550SK

WEATHER/VANDAL RESISTANT DIGITAL KEYPAD (V2)

CM-550SK

FEATURES

• IP68 RATED WATER/DUST RESISTANCE
• BACK LIT WITH ALL METAL CONSTRUCTION
• 2,000 USERS
• WIEGAND INPUT AND OUTPUT
• ADJUSTABLE DOOR OUTPUT TIME, ALARM TIME AND DOOR OPEN TIME
• TAMPER ALARM OUTPUT (LDR)
• DESIGNED FOR HIGH TRAFFIC APPLICATIONS
• WEATHER AND VANDAL RESISTANT DESIGN
• 3 YEAR WARRANTY

DESCRIPTION

Camden Door Controls CM-550SK is a heavy-duty stainless steel backlit keypad designed for indoor or outdoor use. With up to 2000 programmable user codes, the keypad provides controlled access through electrically locked doors. All programming is done through the keypad, eliminating the need for computers or hand-held programmers. Programming information is held in non-volatile memory. The sealed metal keypad and case provides extreme resistance to vandalism and abuse.

APPLICATION

Camden Model CM-550SK is a weather resistant and vandal resistant digital backlit keypad, designed for heavy-duty indoor or outdoor applications. The keypad may be used as an access control device wherever controlled entry through a electrically locked door is desired. It may also be used for activating/deactivating machinery or equipment, overhead doors, automatic doors, or any other electrified device. Applications include offices, executive offices, computer rooms, engineering labs, equipment rooms, storage sites, etc.

WEATHER/VANDAL RESISTANT DIGITAL KEYPAD (V2)

ARCHITECTS/ENGINEERS SPECIFICATIONS

The keypads to be used throughout the site/complex shall be Camden Door Controls model CM-550SK. The keypad shall have all metal construction and backlit keys. The keypad shall have a sealed metal faceplate and body, which is fully potted.

All programming shall be done through the keypad, and programming information stored in non-volatile EEPROM memory. There shall be a minimum of (1) relay outputs and a request-to exit input.

SPECIFICATIONS

INPUT VOLTAGE:	12 VDC +/- 10%
IP RATING:	68
IDLE CURRENT:	25MA
CONTACT TYPE:	(1) FORM 'C'
CONTACT RATING:	1 AMP@30VDC
ALARM OUTPUT LOAD:	1 AMP@30VDC
RING BELL LOAD:	1 AMP@30VDC
OPERATING TEMPERATURE:	-49°F TO 113°F (-45°C TO 55°C)

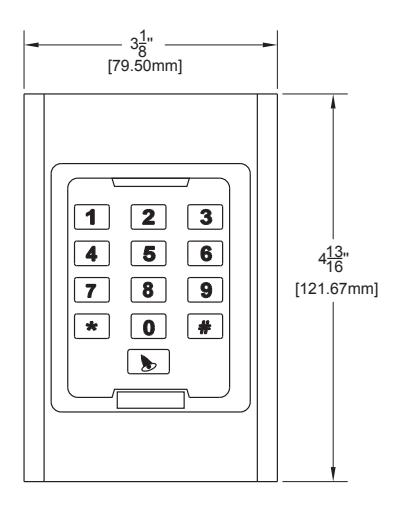

DIMENSIONS:	4 13/16" H x 3 1/8" W x 1 1/16"D (121.67mm x 79.50mm x 26.42mm)

ORDERING INFORMATION

MODEL	DESCRIPTION
CM-550SK	2,000 USERS, SURFACE MOUNT, (1) FORM 'C' RELAYS, 12V DC

SIDE VIEW

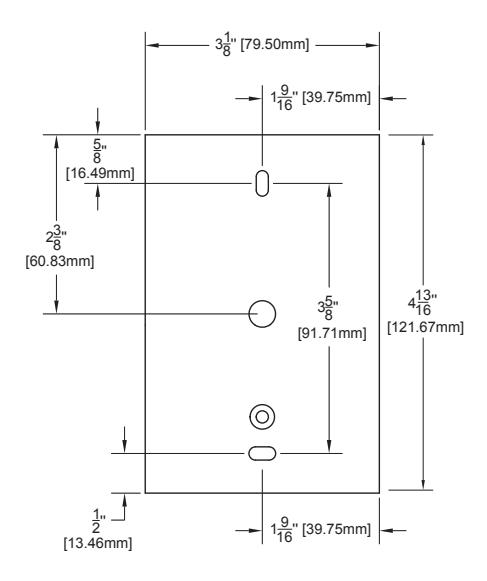

BACK VIEW
