DEVICES

ACTIVE INFRA-RED 'HANDS-FREE' SWITCHES CM-330 SERIES

CM-330/42

FEATURES

• CHOICE OF 12/24V AC/DC AND BATTERY OPERATED MODELS
• CHOICE OF HARD WIRED, OR BATTERY POWERED WIRELESS MODELS, AND COMBINATION WIRED/WIRELESS MODELS
• CHOICE OF STAINLESS STEEL OR HIGH-IMPACT POLYCARBONATE FACEPLATES
• ADJUSTABLE STANDARD OPERATING RANGE 1"- 28"
• AUTO RANGE MODE, UP TO 72"
• ADJUSTABLE TIME DELAY 3–30 SECONDS
• SELECTABLE FAIL-SAFE/FAIL SECURE OPERATION

• ACTIVE OUTPUT, FOR EXTERNAL ALARM, LED, OR ANNUNCIATOR
• 'REQUEST TO EXIT' AND EXTERNAL (DOOR CONTACT) INPUTS (CM-332, CM-333)
• SUPER-FAST ACTIVATION RESPONSE <90MS
• HEAVY DUTY 3 AMP RELAYS, FOR USE WITH ALL AUTOMATIC OPERATORS AND ELECTRIFIED LOCKS
• OPTIONAL LIGHT RING, PROVIDES VISUAL INDICATION OF DOOR STATUS AND ALARMS. CONTROLLED LOCALLY OR REMOTE

CM-330/41WS

CM-330/40W

DESCRIPTION

Sure-Wave™ Hands-Free Switch are active infra-red devices utilizing micro burst sensor technology, designed for use in ADA compliant automatic door and UL compliant access control applications. The switches eliminate the spread of germs by avoiding physical contact and offer building occupants greater convenience when moving through the premises. There is a complete range of wired, wireless and wired/wireless hi-brid models to provide the best solution for any application. An optional light ring, providing visual indication door status and alarms is available for all line powered models. Sure-Wave™ switches are available with either stainless steel or impact resistant polycarbonate faceplates, in narrow (jamb), single gang or double gang configurations. All models are ROHS compliant with lead-free construction.

APPLICATION

Sure-Wave™ hands-free switches are American Disability Act (ADA) compliant, and provide barrier free access and egress to buildings and washroom facilities. Sure-Wave™ hands-free switches are also UL 294 compliant, for use in code compliant access control systems.The rugged construction and heavy duty relay rating make them ideal for use on low-energy automatic doors, drive-up windows, and interior and exterior doors in virtually any commercial (office, retail), institutional (school, hospital or clinic), or industrial (manufacturing) facility.

ARCHITECTS /ENGINEERS SPECIFICATIONS

All door activation switches to be used throughout the facility shall be CM-330 Series Sure-Wave™ active infra-red hands-free switches, utilizing 'microburst' sensing technology, as manufactured by Camden Door Controls.

The switches shall be jamb/narrow, single gang or double gang mounted, with either polycarbonate or stainless steel faceplate as required. They shall have an on-board LED for ease of set-up, selectable fail safe/fail secure operation, an adjustable (standard) operating range from 1" to 28" (25.4mm - 711.2mm) and 1 or 2 relay contacts rating of 3 amps @ 30 VDC. Switches mounted outdoors, or exposed to interior water/humidity shall be mounted with weather resistant integral rubber gasket and back box, supplied by the same manufacturer.

SPECIFICATIONS

SENSOR TYPE: INFRA-RED, UTILIZING MICROBURST TECHNOLOGY

OPERATING TEMP: -4º F TO +153º F (-20º C TO +85º C)

RESPONSE TIME: 90 MS.

TIME DELAY: 3 TO 30 SECONDS CONNECTIONS: 20 - 22 AWG WIRE

CM-330 BATTERY OPERATED WIRELESS

SIMPLE OPERATION, AVOID COST OF WIRING

NO. OF IR SENSORS: (1)

BATTERIES (2) 'AA' ALKALINE (SUPPLIED)

(2) 'AA' LITHIUM BATTERIES (OPTIONAL)

ESTIMATED BATTERY

LIFE: 2 YRS (BASED ON 100 OPERATIONS/DAY)

STANDARD OPERATING

RANGE: 1"- 12" (25.4MM - 304MM)

OPERATING MODE: MOMENTARY

WIRELESS OUTPUT: BUILT-IN 915MHZ. SPREAD SPECTRUM

WIRELESS TRANSMITTER

CM-331 WIRED, 1 RELAY, OPTION FOR WIRELESS TRANSMITTER

ECONOMICAL, IDEAL FOR MOST APPLICATIONS (INCL. RETRO FIT)

NO. OF IR SENSORS: (2)

OPERATING VOLTAGE: 12-24 VOLTS, AC/DC ± 10%

CURRENT DRAW: 40MA

STANDARD OPERATING

RANGE: 1"- 28" (25.4MM - 711.2MM)

AUTO RANGE

OPERATION: 6"-40" (152.4MM – 1.016M) HAND 6"-72" (152.4MM – 1.820M) BODY

CM-330/N

CM-330

SPECIFICATIONS

OPERATING MODES: MOTION SENSING MODES:

MOMENTARY.

MOMENTARY WITH ALARM MAINTAINED (LATCHING) RELAY OPERATION MODES:

SINGLE EVENT,

TOGGLE

RFI AY OUTPUT (1) FORM 'C' (SPDT) RELAY CONTACT RATING: 3 AMPS @ 30 VDC

ACTIVE OUTPUT: 9-12V

OUTPUT TYPE: FAIL SAFE OR FAIL-SECURE

INPUTS: 'REQUEST TO EXIT' EXTERNAL (DOOR CONTACT) INPUT

OPTIONAL LED RING: ON/OFF, RED, BLUE, GREEN

CURRENT DRAW: 8MA MAX

WIRELESS OUTPUT: TX-99 PLUG-IN 915MHZ. SPREAD SPECTRUM

WIRELESS TRANSMITTER

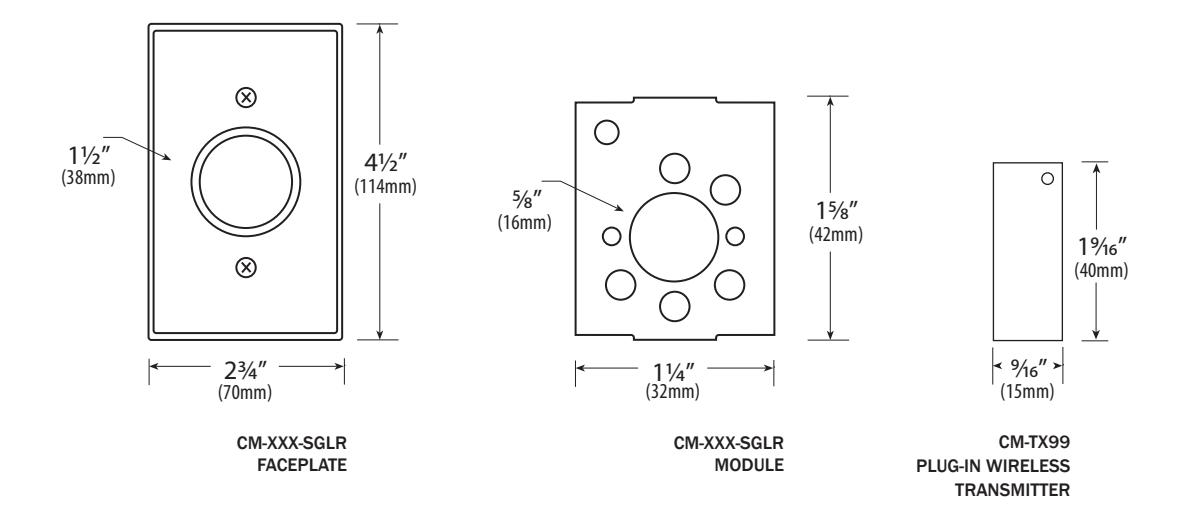

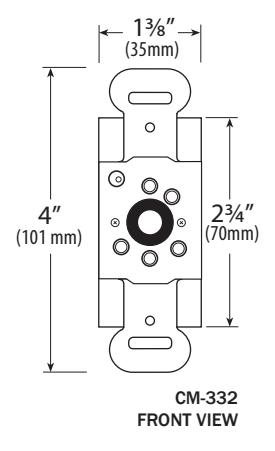

CM-332 WIRED, 2 RELAY, OPTION FOR WIRELESS TRANSMITTER

ADVANCED SWITCH WITH DOOR CONTROL FUNCTIONALITY

NO. OF IR SENSORS:

OPERATING VOLTAGE: 12-24 VOLTS, AC/DC ± 10%

CURRENT DRAW: 40MA

STANDARD OPERATING

RANGE:

1"-28" (25.4MM - 711.2MM)

AUTO RANGE

OPERATION: 6"-40" (152.4MM - 1.016M) HAND 6" - 72" (152.4MM - 1.820M) BODY

OPERATING MODES: MOTION SENSING MODES:

MOMENTARY,

MOMENTARY WITH ALARM MAINTAINED (LATCHING) RELAY OPERATION MODES:

SINGLE EVENT,

SEQUENCE, SECURITY TOGGLE, AUTO RANGE

RELAY OUTPUT: (2) FORM 'C' (SPDT) RELAY CONTACT RATING: 3 AMPS @ 30 VDC

ACTIVE OUTPUT: 9-12V.

OUTPUT TYPE: FAIL SAFE OR FAIL-SECURE

INPUTS: 'REQUEST TO EXIT' EXTERNAL (DOOR CONTACT) INPUT

OPTIONAL LED RING: ON/OFF, RED, BLUE, GREEN

CURRENT DRAW: 8MA MAX

WIRELESS OUTPUT: TX-99 PLUG-IN 915MHZ. SPREAD SPECTRUM

WIRELESS TRANSMITTER

SPECIFICATIONS

CM-333 BATTERY POWERED WITH RELAY OUTPUT, OPTION FOR WIRELESS TRANSMITTER

IDEAL FOR RETROFIT APPLICATIONS UTILIZING EXISTING WIRES

NO. OF IR SENSORS: (1)

BATTERIES: (2) 'AA' ALKALINE (SUPPLIED)

(2) 'AA' ALITHIUM BATTERIES (OPTIONAL)

ESTIMATED BATTERY

LIFE: 2 YRS (BASED ON 100 OPERATIONS/DAY)

STANDARD OPERATING

RANGE: 1"- 12" (25.4MM - 304MM)

MOTION SENSING

MODES: MOMENTARY, MOMENTARY WITH ALARM

MAINTAINED (LATCHING)

RELAY OUTPUT: (1) FORM 'C' (SPDT)

RELAY CONTACT RATING: 3 AMPS @ 30 VDC

OUTPUT TYPE: FAIL SAFE/NON-FAIL SAFE OPERATION

INPUTS: 'REQUEST TO EXIT', EXTERNAL (DOOR CONTACT) INPUT

WIRELESS OUTPUT: TX-99 PLUG-IN 915MHZ. SPREAD SPECTRUM

WIRELESS TRANSMITTER
