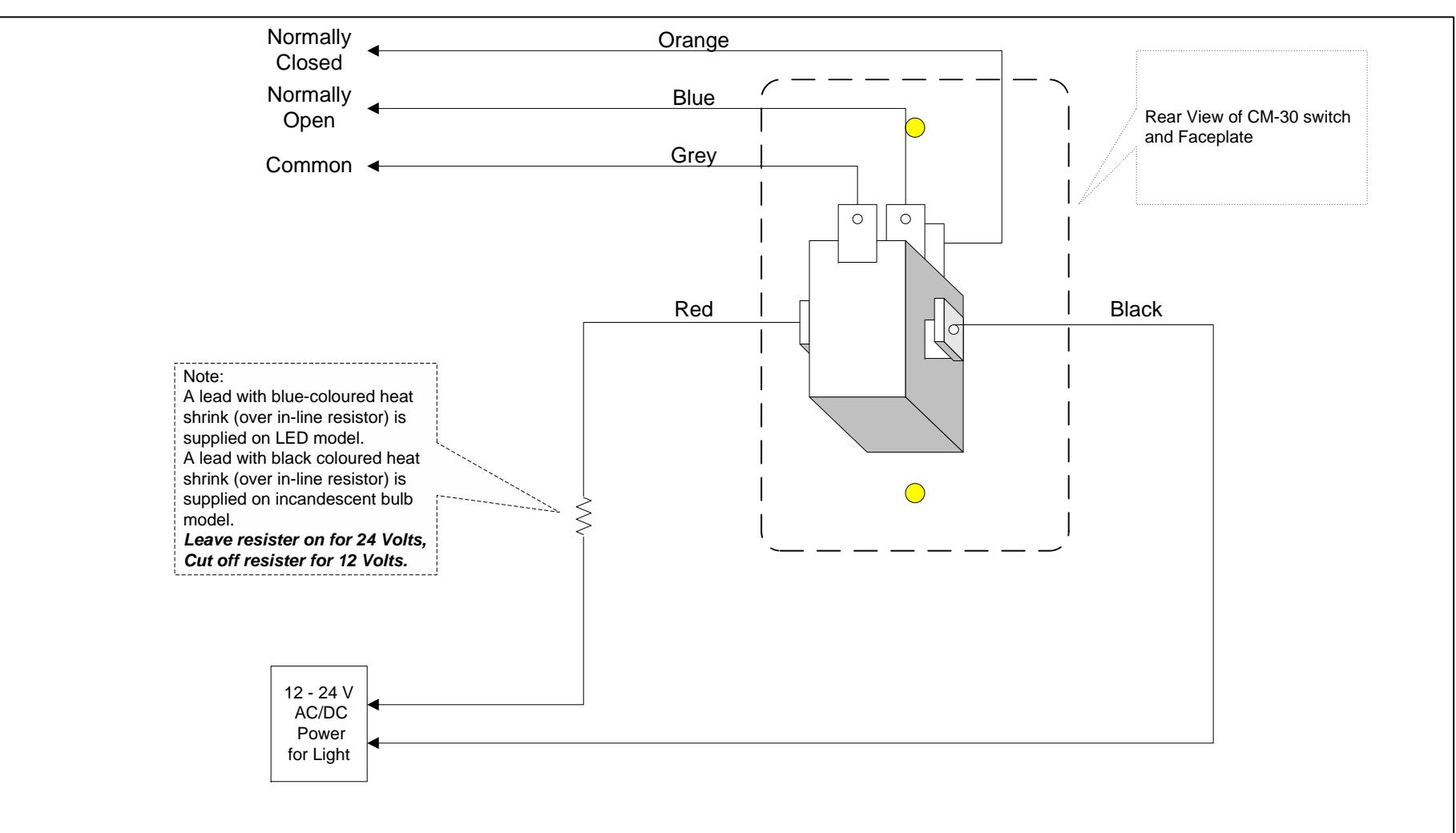

Camden CM-30 Switch Wiring Diagram

NOTE:

Access to light bulb (or LED) is obtained by first removing Cherry switch from two plastic retaining pins. Squeeze white retainer assembly between finger and thumb, and gently rock back and forth while pulling free of black threaded portion. Then pull out light bulb (or LED) to replace.
