CM-250 SERIES
ECONOMY 1" PUSH BUTTONS
FEATURES
- 1" RED BUTTON REQUIRES MINIMAL ACTUATION FORCE
- STAINLESS STEEL FACEPLATE AVAILABLE IN NARROW JAMB
- ADA COMPLIANT
- ATTRACTIVE LOW PROFILE DESIGN
- UL/CSA APPROVED SWITCH RATED 15 AMPS @ 30 VDC
- VARIOUS LOGOS, MESSAGES & LANGUAGES
- 3YR. 'CAMDEN TOUGH' WARRANTY WITH '2 FOR 1' REPLACEMENT
CM-250/7
DESCRIPTION
Camden CM-250 Series push switches are light-duty, ADA-compliant door controls. Designed for easy installation directly in the door jamb, or use optional surface box. The SPDT switches are UL/CSA approved, and rated 15 Amps. @ 30 VDC.
CM-250/3H
APPLICATION
Camden 1" push button switches are designed to control electric locks & strikes, magnetic locks, automatic pedestrian & overhead doors.
They may also be used for shunting, bypassing alarms, request to exit, timed functions and many other applications. Camden switches are versatile and can be supplied in various logos and languages to suit any commercial, industrial or residential application.
ARCHITECTS / ENGINEERS SPECIFICATIONS
The switches to be used throughout the site/complex shall be Camden Door Controls CM-250 series push switches.
The switches shall be easy-to-activate, ADA compliant and utilize a 1" red button. Faceplates shall be constructed of 18 gauge stainless steel, and have matching stainless steel mounting screws. Switches shall be rated at a minimum of 15 Amps. @ 30V DC.
SPECIFICATIONS
| VOLTAG: | 12/24 VDC |
|---|---|
| CURRENT TYPE: | SPDT FORM 'C' |
| CONTACT RATING: | 15 AMPS@30V DCS |
| SWITCH TYPE: | MOMENTARY |
| STD. FINISH: | US32 / 32D |
| DIMENSIONS: |
4 1/2"H x 1 5/8"W x 1 11/32"D
(114mm x 41mm x 32mm) |
ORDERING INFORMATION
All CM-250 Series push switches are complete ready-to-install assemblies. They are supplied with matching stainless steel mounting screws and wire terminals.
| MODEL | DESCRIPTION |
|---|---|
| CM-250 | SWITCH WITH STAINLESS STEEL FACEPLATE |
OPTIONS (Add suffix to model above)

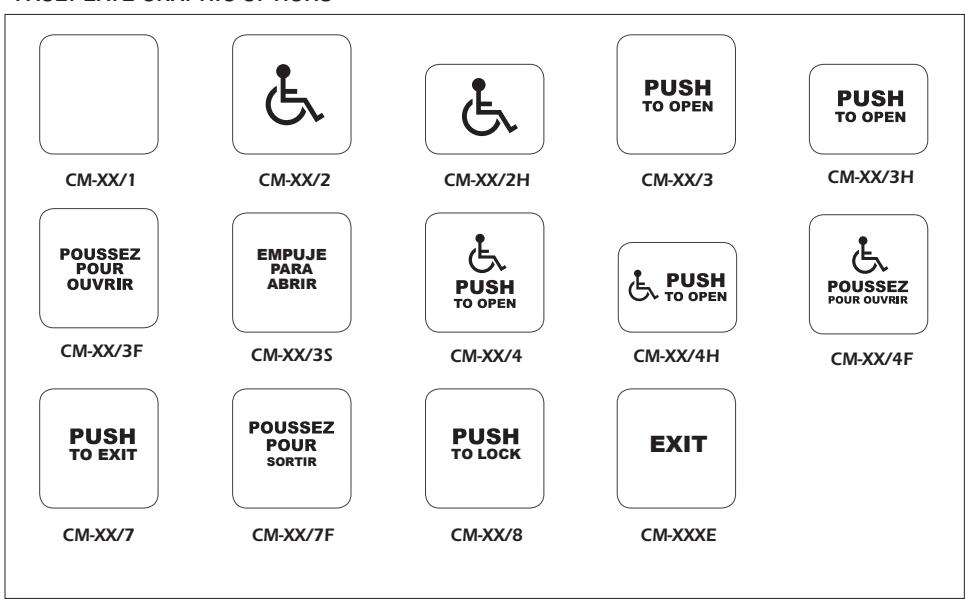

FACEPLATE GRAPHIC OPTIONS
^ 7⁄8″ ▼ (17mm) Θ. 4½" (114mm) FRAME CUTOUT 2<sup>3</sup>/<sub>4</sub>" (70mm) 0 7/8" (17mm) <13/<sub>16</sub>"> 5/8" (21mm) (16mm) 15%" (41mm)
CM-250
5/32" (4mm)
1/4" (6mm)
← <sup>7</sup>⁄8"— (22mm)
CM-250
NOTE: all faceplate graphics are in black except wheelchair and, wheelchair + text in blue.
