Camden CM-1200 & 2200 Series Stainless Steel Key Switches Installation Instructions
Open the original PDF document
View PDF
Door Activation Devices

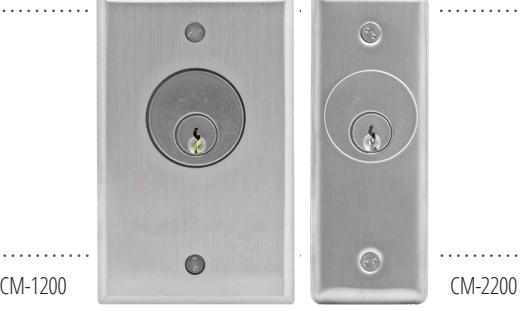

CM-1200 & 2200 Series Stainless Steel Key Switches
INSTALLATION INSTRUCTIONS
PACKAGE CONTENTS
- (1) Stainless steel faceplate
- (2) Tamper proof screws and driver
- (1) Color coded 18 AWG soldered leads
- (1) Lock ring
Note: Mortise Cylinder Sold Separately
1. GENERAL DESCRIPTION
Camden key switches are designed to work with most 1", 1 1/8" or 1 1/4" mortise cylinders, and with different types of cams.
One or two switches may be installed, either momentary and/or maintained (alternating on/off).
2. SPECIFICATIONS
| Input Voltage | 12-24V AC/DC |
|---|---|
| Contact Rating |
6A @ 30VDC (Standard),
15A @ 30VDC (Optional) |
| Switch Life | 100,000 cycles |
| Temp Range | 32°F - 85°F (0°C to +85°C) |
| Standard Finish | Stainless steel |
| Dimensions |
CM-1200:
2 3/4" W x 4 1/2" H x 1.5" D (70mm x 114mm x 38mm) CM-2200: 1 3/4" W x 4 1/2" H x 1.5" D (44mm x 114mm x 38mm) |
3. INSTALLATION

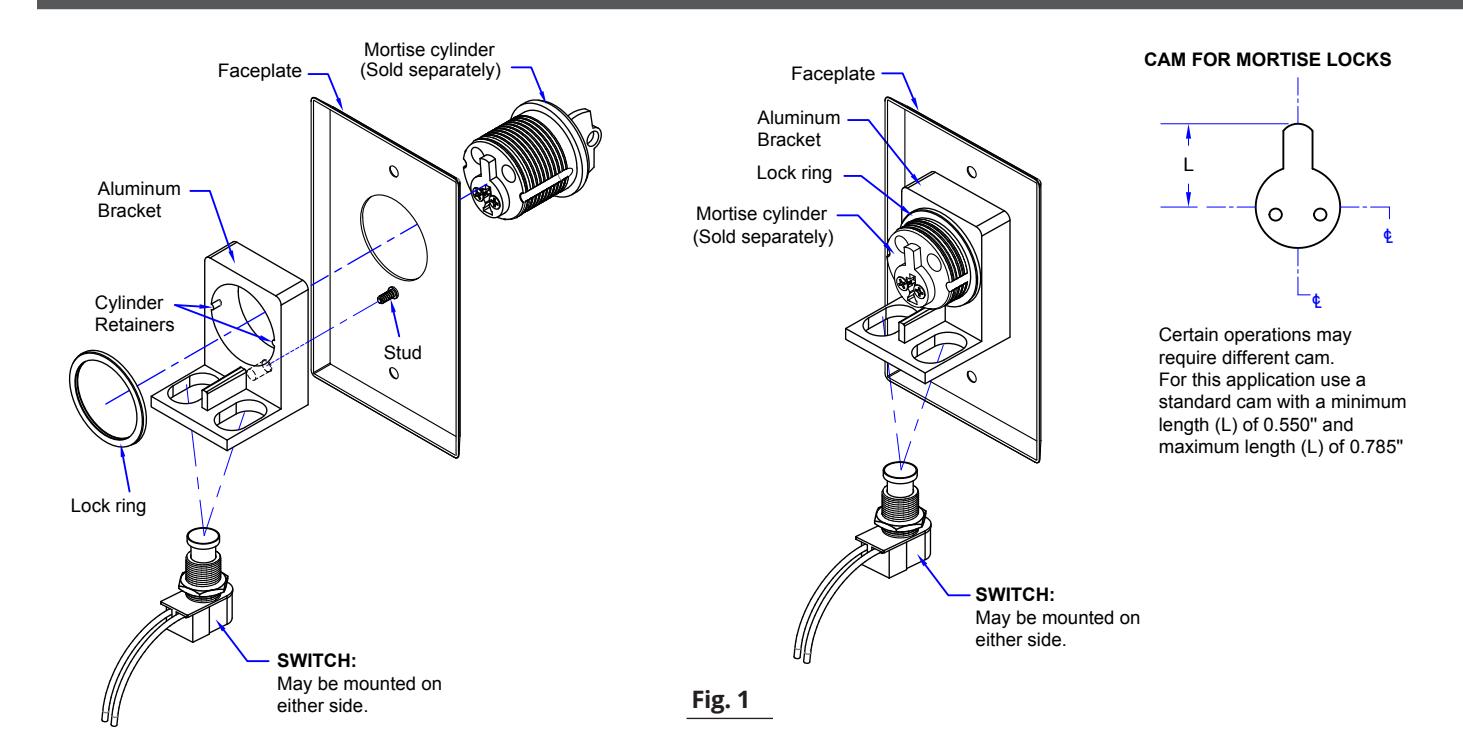

1. Fit the aluminum bracket against the stud on the back of the face plate. Insert the mortise cylinder through the front of the face plate being sure to align the grooves on the sides of the cylinder with the corresponding "Retainers" on the aluminum bracket. See fig 1. Some cylinders may appear not to fit. If the grooves on the side of the cylinder are irregular and do not align with the retainers on the bracket, use a metal file to file down the retainers slightly.
Note –do not file the retainers off completely as they prevent the cylinder from spinning in the face plate.
- 2. Thread the brass cylinder lock ring onto the back of the cylinder and tighten to secure the aluminum bracket in place.
- 3. The switch(es) provided may be mounted in either the left or the right hole on the aluminum bracket. Thread the octagonal nut (spacer ring) on to the bushing (stem) of the switch before placing the switch in the hole
- 4. Insert the switch up through the bottom of the desired hole. Secure the switch in place by screwing the round threaded washer onto the top of the switch.
- 5. Turn the key in the cylinder and ensure the cam lines up with the top of the switch squarely in the center. Adjust the switch in the slotted hole until the cam lines up with in the center of the switch. It does not affect operation of the cam if the cylinder rests against the switch, so long as the switch is not fully depressed until activated by a turn of the key. If the cam does not depress the switch, or blocks the switch, as needed. Extra spacers are provided and may be used as required.
- 6. Once the electrical connectors are completed (see fig 2), if necessary, attach the unit to the switch box, wall, or receptacle box using the supplied tamperproof or stainless steel Phillips screws.
4. WIRING
| WIRING LAYOUT & COLOR CODING | |||||||
|---|---|---|---|---|---|---|---|
|
SWITCH
TYPE |
1
SPST MOMENTARY |
2
SPST MAINTAINED |
3
SPDT MOMENTARY |
4
SPDT MAINTAINED |
5
DPDT MOMENTARY |
6
DPDT MAINTAINED |
|
| N.O. or N.C. | N.O. or N.C. | ||||||
| COMMON | BLACK | BLACK | GREY | GREY | GREY (X2) | GREY (X2) | |
|
NORMALLY
OPEN |
BLACK | BLACK | BLUE | ORANGE | BLUE (X2) | ORANGE (X2) | |
|
NORMALLY
CLOSED |
BLACK | BLACK | ORANGE | ORANGE | ORANGE (X2) | ORANGE (X2) | |
Momentary: When the switch is pressed the current pole will change to the opposite state until released.
Maintained: When the switch is pressed it will provide the opposite pole until the button is pressed again
Momentary: When the switch is pressed it will provide a change of state on the N.O. & N.C. poles until released
Maintained: When the switch is pressed it will provide a change of state on the N.O. & N.C. poles until button pressed again
Momentary: When the switch is pressed it will provide a change of state on both of the N.O. & N.C. poles until released
Maintained: When the switch is pressed it will provide a change of state on both of the N.O. & N.C. poles until pressed again
Fig. 2
5. OPTIONAL WIRING

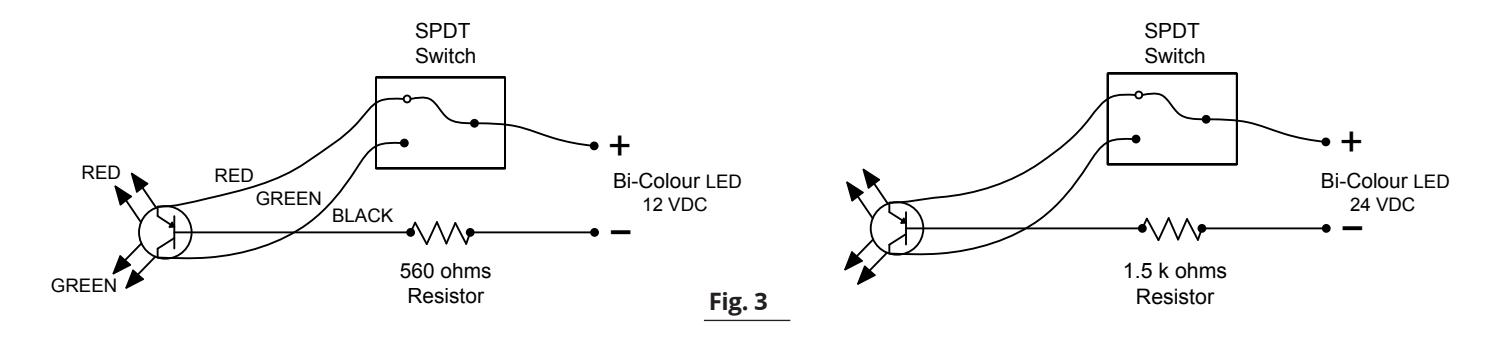

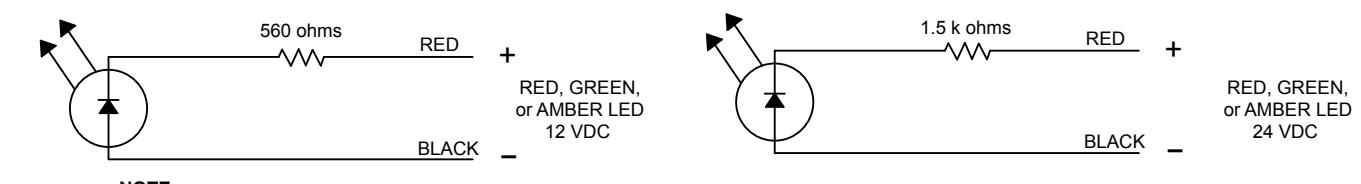

Key Switches may be ordered with optional LED's. These drawings show the various wiring configurations of the LED's.
NOTE: These LEDs are designed for DC Voltage only.

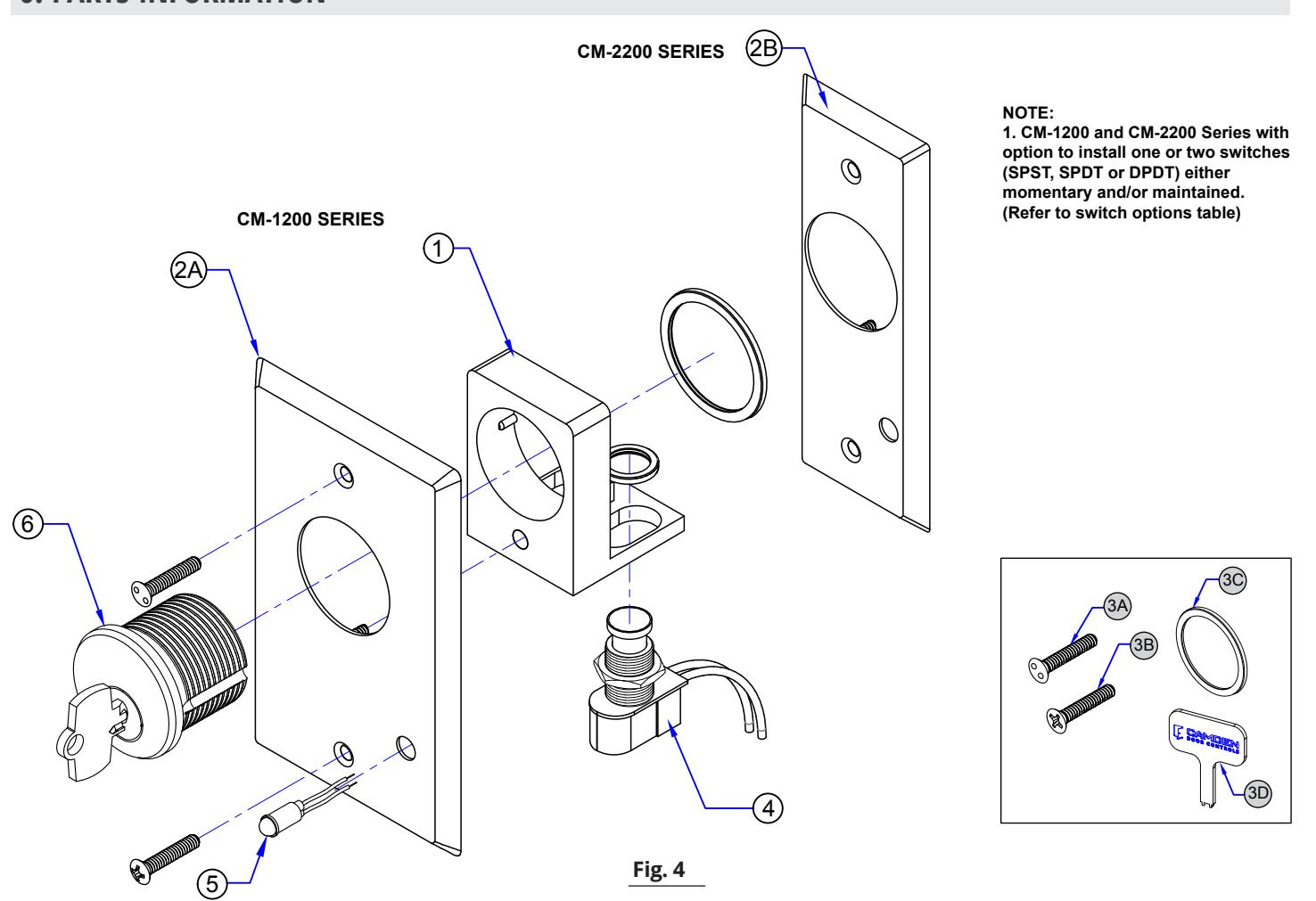

6. PARTS INFORMATION
| ORDERING INFORMATION FOR REPLACEMENT PARTS | |||||
|---|---|---|---|---|---|
|
ITEM
NUMBER |
PART NUMBER DESCRIPTION | ||||
| 1 | 60-40G011 | ALUMINUM BRACKET | |||
| A. CM-1200 SERIES | STAINLESS STEEL (SINGLE GANG) FACE PLATE | ||||
| 2 | 60-49B047 | FOR FLUSH MOUNT KEY SWITCHES | |||
| 2 | B. CM-2200 SERIES | STAINLESS STEEL (MULLION) FACE PLATE | |||
| 60-49B048 | FOR FLUSH MOUNT KEY SWITCHES | ||||
| PARTS KIT | |||||
|---|---|---|---|---|---|
|
ITEM
NUMBER |
PART NUMBER | DESCRIPTION | |||
| CM-1200 & CM-2200 SERIES | (A) 6-32 X 3/4 SNAKE EYE TAMPER PROOF SCREWS (SNAKE EYE) | ||||
| 3 | 60-34B048 | (B) 6-32 X 3/4 PHILLIPS OVAL HEAD ZINC PLATED SCREWS (C) CYLINDER LOCK RING (D) KEY FOR TAMPER PROOF SCREWS (SNAKE EYE) | |||
| SWITCH OPTIONS | |||||||
|---|---|---|---|---|---|---|---|
| ITEM | MODEL | NUMBER |
QTY PART
NUMBER |
||||
| NUMBER |
SINGLE
GANG |
MULLION | QTY | DESCRIPTION | |||
| CM-1200 | CM-2200 | 1 | 60-68D046 | SPST MOMENTARY CONTACT SWITCH, N/O 6A @125V AC, 3A@ 30V DC | |||
| CM-1205 | CM-2205 | 1 | 60-68D048 | SPST MOMENTARY CONTACT SWITCH, N/C 6A @125V AC, 3A@ 30V DC | |||
| CM-1210 | CM-2210 | 1 | 60-68D049 | SPST MAINTAINED CONTACT SWITCH, ON/OFF 6A @125V AC, 3A@ 30V DC | |||
| CM-1220 | CM-2220 | 1 | 60-68D052 | SPDT MOMENTARY CONTACT SWITCH, 6A @125V AC, 3A@ 30V DC | |||
| CM-1230 | CM-2230 | 1 60-68D054 | SPDT MAINTAINED CONTACT SWITCH, 6A @125V AC, 3A@ 30V DC | ||||
| CM-1250 | CM-2250 | 2 | 60-68D052 | SPDT MOMENTARY CONTACT SWITCH, 6A @125V AC, 3A@ 30V DC | |||
| 4 | 4 CM-1260 CM-2260 | 2 | 60-68D054 | SPDT MAINTAINED CONTACT SWITCH, 6A @125V AC, 3A@ 30V DC | |||
| 014 0070 | 1 | 60-68D052 | SPDT MOMENTARY CONTACT SWITCH, 6A @125V AC, 3A@ 30V DC | ||||
| CM-1270 | CM-2270 | 1 | 60-68D054 | SPDT MAINTAINED CONTACT SWITCH, 6A @125V AC, 3A@ 30V DC | |||
| CM-1280 | CM-2280 | 1 | 60-68D053 | DPDT MOMENTARY CONTACT SWITCH, 6A @125V AC, 3A@ 30V DC | |||
| CM-1282 CM-2282 | 2 | 60-68D053 | DPDT MOMENTARY CONTACT SWITCH, 6A @125V AC, 3A@ 30V DC | ||||
| CM-1290 | CM-2290 | 1 | 60-68D055 | DPDT MAINTAINED CONTACT SWITCH, 6A @125V AC, 3A@ 30V DC | |||
| CM-1292 CM-2292 2 60-68D055 DPDT MAINTAINED CONTACT SWITCH, 6A | DPDT MAINTAINED CONTACT SWITCH, 6A @125V AC, 3A@ 30V DC | ||||||
| SLE LED OPTI | ONS | DOUBLE LED OPTIONS | ||||||
|---|---|---|---|---|---|---|---|---|
|
ITEM
NUMBER |
MODEL
NUMBER |
QTY |
PART
NUMBER |
DESCRIPTION |
MODEL
NUMBER |
QTY |
PART
NUMBER |
DESCRIPTION |
| CM-XXXX-7012 | 1 | 60-73C008 | RED 12V LED | CM-XXXX-70122 | 2 | 60-73C008 | RED 12V LEDS | |
| CM-XXXX-7024 | 1 | 60-73C010 | RED 24V LED | CM-XXXX-70242 | 2 | 60-73C010 | RED 24V LEDS | |
| CM-XXXX-7112 | 1 | 60-73C009 | GREEN 12V LED | CM-XXXX-71122 | 2 | 60-73C009 | GREEN 12V LEDS | |
| CM-XXXX-7124 | 1 | 60-73C011 | GREEN 24V LED | CM-XXXX-71242 | 2 | 60-73C011 | GREEN 24V LEDS | |
| CM-XXXX-7212 | 1 | 60-73C009 | GREEN 12V LED | CM-XXXX-72122 | 2 | 60-73C009 | GREEN 12V LEDS | |
| 1 | 60-73C008 | RED 12V LED | CIVI-AAAA-12122 | 2 | 60-73C008 | RED 12V LEDS | ||
| 5 | 0111/000/ =00/ | 1 | 60-73C011 | GREEN 24V LED |
- CM-XXXX-72242
CM-XXXX-74122 |
2 | 60-73C011 | GREEN 24V LEDS |
| CM-XXXX-7224 | 1 | 60-73C010 | RED 24V LED | 2 | 60-73C010 | RED 24V LEDS | ||
| CM-XXXX-7412 | 1 | 60-73C014 | AMBER 12V LED | 2 | 60-73C014 | AMBER 12V LEDS | ||
| CM-XXXX-7424 | 1 | 60-73C012 | AMBER 24V LED | CM-XXXX-74242 | 2 | 60-73C012 | AMBER 24V LEDS | |
| CM-XXXX-7612 | 1 | 60-66B001-12 |
BI-COLOR 12V
(3 WIRE) LED |
CM-XXXX-76122 | 2 | 60-66B001-12 |
BI-COLOR 12V
(3 WIRE) LED |
|
| CM-XXXX-7624 | 1 | 60-66B001-24 |
BI-COLOR 24V
(3 WIRE) LED |
CM-XXXX-76242 | 2 | 60-66B001-24 |
BI-COLOR 24V
(3 WIRE) LED |
|
| OPTIONAL MORTISE CYLINDERS | |||||
|---|---|---|---|---|---|
|
ITEM
NUMBER |
PART NUMBER | DESCRIPTION | |||
| CM-1000/60KD | MORTISE CYLINDER 1 1/8", KEYED DIFFERENT (SOLD SEPARATELY) | ||||
| 6 | CM-1000/60KA | MORTISE CYLINDER 1 1/8", KEYED ALIKE (SOLD SEPARATELY) | |||
| CM-307 | MORTISE CYLINDER HOUSING FOR BEST™ STYLE IC CORE (SOLD SEPARATELY) | ||||
| CM-308 | BEST™ STYLE IC CORE, KEYED DIFFERENT (SOLD SEPARATELY) | ||||
| COMPATIBLE MOUNTING BOX OPTIONS | |||||
|---|---|---|---|---|---|
|
ITEM
NUMBER |
PART NUMBER DESCRIPTION | ||||
| CM-1200 SERIES | |||||
| CM-34AL | SINGLE GANG ALUMINUM BOX, SURFACE MOUNT 2 7/8"W X 4 5/8"H X 2"D (73MM X 117MM X 51MM) | ||||
| CM-66 | FLUSH BOX & DRESS PLATE, STANDARD DEPTH BOX WITH 7" X 7" DRESS PLATE HEAVY GAUGE STAINLESS STEEL | ||||
| 7 |
CM-31
CM-CPC1 |
SLEEVE COVER FOR STANDARD 2 3/4" X 4 1/4" (69MM X 110MM) SURFACE ELECTRICAL BOX. HEAVY GAUGE STAINLESS STEEL | |||
| / | VANDAL AND WEATHER RESISTANT CLEAR LIFT COVER | ||||
| CM-34BL |
SINGLE GANG BLACK ABS BOX, SURFACE MOUNT
2 7/8" W X 4 5/8"H X 1 3/4"D (73MM X 117MM X 44MM) |
||||
| CM-2200 SERIES | |||||
| CM-23D | SURFACE BOX WITH EXTRA DEPTH, FLAME AND IMPACT RESISTANT BLACK POLYMER (ABS) 1 3/4" W X 4 1/2"H X 1 3/4"D (46MM X 117MM X 43MM) | ||||
FS 541752
File: CM-1200/2200_Manual_Eng_R1.indd Revision: July 31, 2019 Part No: #40-82B227
